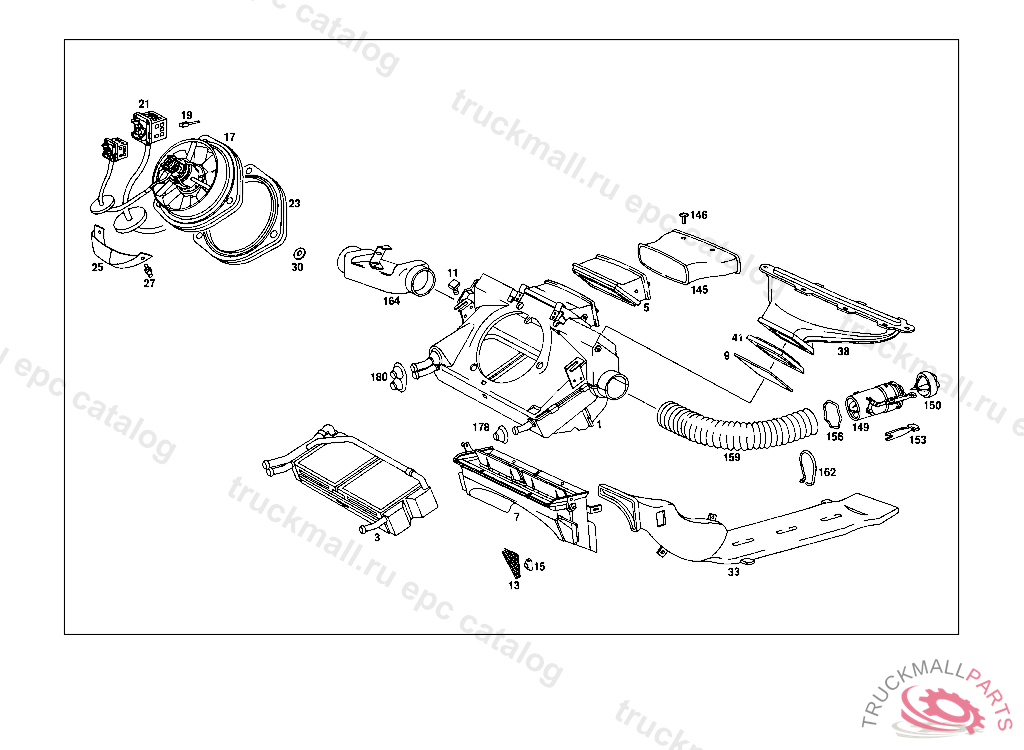

Поз.
Артикул
Описание
1
HEATER CASE , 024326
3
HEAT EXCHANGER
5
INTERMEDIATE PIECE
11
SCREW
11
SCREW , Replaced By: A0009905233
17
BLOWER
19
CARBON BRUSH SET
21
SWITCH
23
SEAL
30
SEAL RING
30
RUBBER RING EMERGENCY LANTERN TO CAB
33
DUCT LEFT
38
DEFROSTER NOZZLE LEFT
38
DEFROSTER NOZZLE , Replaced By: A1158300119
41
SEAL
146
RIVET
149
NOZZLE LEFT, UP TO CHASSIS: 034088, EXCEPT FOR: 033038,033673,033706,033709,033716,033736,033765,033914,033922,033926,033930,033931,033934,033936, 033939,033941-033951,033953,033955,033956,033959,033960,033962,033964,033966,033967,033969-033998, 034000-034010,034012-034022,034023-034087.
150
BALL INSERT
153
HANDLE
156
WAVE RING
159
HOSE 485 MM
164
DUCT
178
GROMMET EXPANSION PLUG
180
GROMMET
999
SEAL
999
LEVER , Replaced By: A0008352743
999
LEVER , Replaced By: A0008352843
999
LEVER LEFT, MAKE REITER & SCHEFENACKER
999
LEVER RIGHT,MAKE R. & S.
999
LEVER , Replaced By: A1155860183
999
SWITCH , Replaced By: A0008353706
999
RUBBER SEAL 125 MM, ORDER BY THE METER
999
CLIP , 008309
999
CLIP
999
HOSE CLAMP LINE MOUNTING
999
REPAIR KIT , Replaced By: A1238300133
999
PLUG , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 005,017 028049 015 238752 100,102,103,110,112 431300 105,107,108,117,119 060601 114 000208 115 248583, Replaced By: A1158211951
999
REPAIR KIT LEFT,MAKE KAMMERER
999
NOZZLE RIGHT
999
DEFROSTER NOZZLE RIGHT
999
NOZZLE , Replaced By: A1158300054
999
INTERMEDIATE PIECE (FRONT AND REAR SPACE HEATING), FROM CHASSIS: 010 026147 110 057164
999
WIRE CABLE RIGHT, FROM CHASSIS: 000,002,010 013352 EXCEPT FOR: 013355,013825 015 010341 EXCEPT FOR: 010347,010405,010406 100,102,103,110,112 029021 EXCEPT FOR: 029562 115 013141
999
PIPE LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 110 400000 115 200000, Replaced By: A1158300915
999
OPERATING UNIT , Replaced By: A1158300785
999
OPERATING UNIT
999
DEFROSTER NOZZLE , Replaced By: A1158300219
999
ESCUTCHEON , FROM CHASSIS: 010 027065
999
DUCT RIGHT
999
DUCT
999
HOSE BETWEEN WATER FAUCET AND HEATER CASE
999
BLOWER , Replaced By: A1158350407
999
CONTROL VALVE
999
BLOWER , Replaced By: A1158350207
999
REPAIR KIT , Replaced By: A1158300033
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
WASHER , FROM CHASSIS: 005,007,008,015,017 10/50,12/52 009573, ALSO INSTALLED ON: 009319,009323,009404,009444,009449,009450,009454-009456,009458,009459,009461-009472,009475-009477, 009479-009494,009496-009571. 010 10/50,12/52 013397, ALSO INSTALLED ON: 013289,013348,013354,013356,013358,013361-013367,013370-013381,013384-013388,013390-013395. 005,007,008,015,017 20/60,22/62 012727 010 20/60,22/62 015672
999
LOCK WASHER
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
SCREW
999
SCREW , Replaced By: N304017006018
999
NUT BALL PIVOT TO LEVER
999
TOOTHED WASHER MASKED STOP LAMP
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
999
SHEET METAL SCREW FENDER TO BODY
999
SHEET METAL SCREW
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
999
SCREW , Replaced By: N000000001933
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
DUO CLIP , Replaced By: N912010005001
999
LOCK PLATE CONSOLE TO REAR PANELLING,TOP
999
CLAMP , Replaced By: A0059970190
999
CLAMP , Replaced By: N000000000667
999
CLAMP PRESSURE REGULATOR
