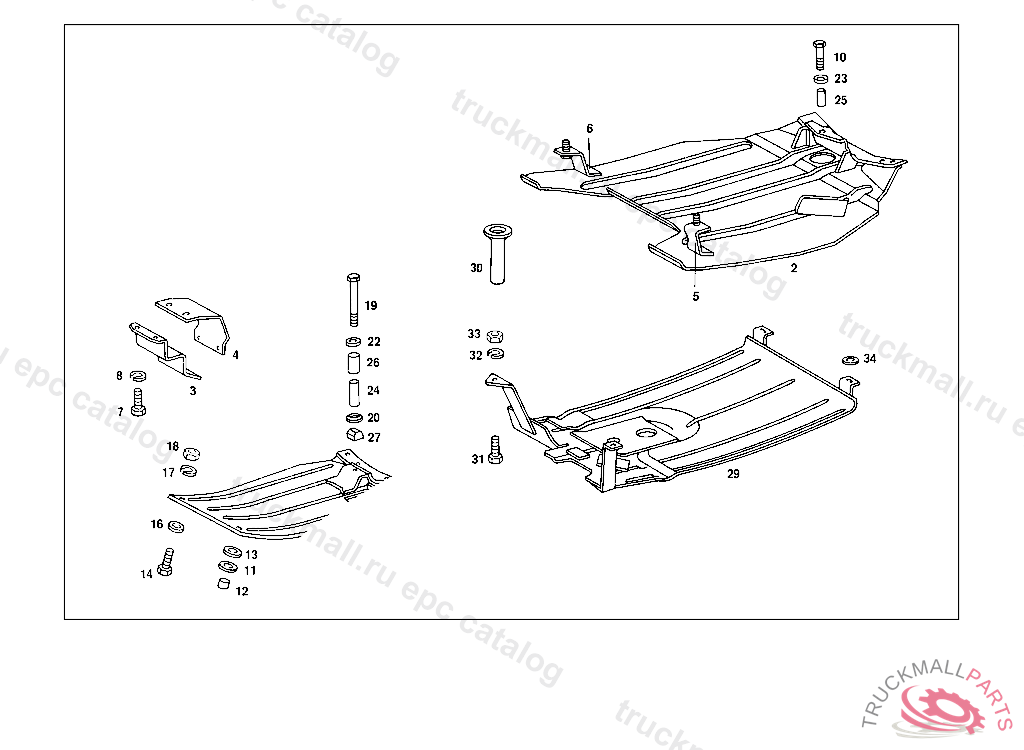

Поз.
Артикул
Описание
2
PROTECTIVE PLATE FOR OIL PAN
3
BRACKET
4
BRACKET
5
BRACKET FRONT LEFT
6
BRACKET FRONT RIGHT
7
SCREW CLAMP TO BRACKET AND TO PIPE
8
SPRING WASHER , Replaced By: N000137008212
10
SCREW SUPPORT TO FENDER
10
SCREW , Replaced By: N304017008018
11
WASHER
12
SPACER TUBE
13
RETAINER
14
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
14
SCREW , Replaced By: N000933008337
14
SCREW , Replaced By: A0099900101
16
WASHER , Replaced By: N000125008443
16
WASHER EXHAUST MUFFLER TO STRAP
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
18
NUT
18
NUT , Replaced By: N304032008006
19
SCREW VALVE TO SIDE MEMBER,5 295723
20
WASHER
22
WASHER
23
WASHER
24
SPACER TUBE
25
SPACER TUBE
26
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
27
SHIM
29
PANELLING FOR FUEL TANK,114.010 077448 114.005,007,008,015,017 111616, ALSO INSTALLED ON: 111600 114.021 008677 115.000,002,010 098972 115.015 123127, ALSO INSTALLED ON: 123063-123094 115.100,102,103,110,112 257802, EXCEPT FOR: 257873,258395 115.115 129355, EXCEPT FOR: 129488,129516 115.005,017,105,107,108,114,117,119 000001
30
BRACKET
31
SCREW
32
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
33
NUT BRACKET TO SUPPORT AND TO END PIECE
34
WASHER
999
PANELLING FOR FUEL TANK
999
PANELLING FOR FUEL TANK,114.021 021382
999
BRACKET , Replaced By: A1153150240
999
PROTECTIVE PLATE , Replaced By: A1075200042
999
PANELLING , Replaced By: A1155200175
999
BRACKET , Replaced By: A1155240140
999
PANELLING FOR FUEL TANK, 114.010 077447 114.005,007,008,015,017 111615, EXCEPT FOR: 111600 114.021 008676 115.000,002,010 098971 115.015 123126, EXCEPT FOR: 123063,123094 115.100,102,103,110,112 257801, ALSO INSTALLED ON: 257873,258395 115.115 129354, ALSO INSTALLED ON: 129488,129516
999
BRACKET , Replaced By: A1153150240
999
PANELLING FOR FUEL TANK,114.021 021381
999
NUT SWITCH TO FLOOR PLATE
