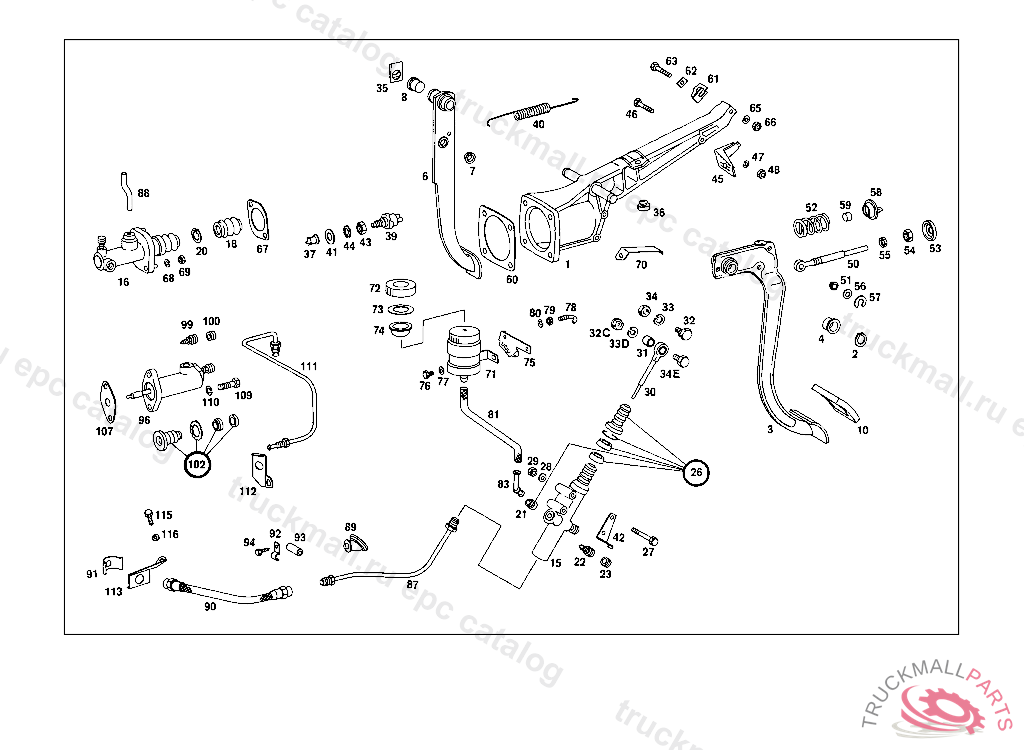

Поз.
Артикул
Описание
1
BEARING
2
LOCK STOP TO BEARING BRACKET
2
LOCK RING , Replaced By: A0079942041
3
PEDAL
4
BUSHING BRAKE PEDAL
4
BUSHING , Replaced By: A1242920050
6
PEDAL
7
BUSHING
8
BUSHING BRAKE PEDAL
8
BUSHING , Replaced By: A1242920050
10
PAD , Replaced By: A1072910182
10
PAD BRAKE
15
MASTER CYLINDER , Replaced By: A0012958706
15
MASTER CYLINDER , Replaced By: A0002957706
15
MASTER CYLINDER , 077222
16
MASTER CYLINDER , FROM CHASSIS: 007,008,015,017 227754 011 105483 060 111610 062 105439
18
BOOT
20
LOCK RING19 MM
21
PLUG
22
BLEEDER VALVE
23
PROTECTIVE CAP , Replaced By: A0004217187
23
PROTECTIVE CAP ,5 962906
26
REPAIR KIT MASTER CYLINDER, 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866
27
SCREW BRACKET TO CROSS MEMBER
27
SCREW , Replaced By: N304014006004
28
SPRING WASHER LICENSE PLATE TO BRACKET
29
NUT BATTERY MOUNTING
29
NUT CYLINDER TO BRACKET TO0002902112
30
ROD
31
BUSHING
32
SCREW , UP TO CHASSIS: 023 101126 072 103733 073 106943, Replaced By: A1152950172, +001N000137008202, +001N000933008131
33
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
34
NUT COVER PLATE
35
LOCK AT WATER EXPANSION TANK
36
STOP
39
SWITCH STOP LIGHT
40
SPRING
41
WASHER PEDALS TO PIVOT PINS
42
STOP , 077222
43
NUT SWITCH
44
TOOTHED WASHER , 027703
45
BRACKET , UP TO CHASSIS: 114569 ALSO INSTALLED ON 115036 EXCEPT FOR: 114138,114139,114215,114398,114423,114472,114476-114478,114480-114482,114484,114486,114487,114489, 114492,114493,114495,114498,114500,114501,114503,114506,114512,114514,114515,114517,114519,114521, 114523,114525,114527,114529-114534,114536-114540,114543,114544,114546-114551,114553,114556,114558- 114567.
46
SCREW APPARATUS PLATE M 6X45
46
SCREW , Replaced By: N304017006027
47
SPRING WASHER LICENSE PLATE TO BRACKET
48
NUT BATTERY MOUNTING
48
NUT CYLINDER TO BRACKET TO0002902112
50
ROD
51
BUSHING
52
SPRING
53
SPRING RETAINER SPRING TO PUSH ROD
54
NUT
55
NUT
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER , Replaced By: N000125008443
57
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
58
SPRING RETAINER , Replaced By: A3092910091
59
SPRING RETAINER , Replaced By: A3092910091
59
BUSHING , Replaced By: A3092910091
60
GASKET
61
BRACKET
62
SHIM
63
SCREW APPARATUS PLATE M 6X45
63
SCREW , Replaced By: N304017006027
65
SPRING WASHER LICENSE PLATE TO BRACKET
66
NUT BATTERY MOUNTING
66
NUT CYLINDER TO BRACKET TO0002902112
67
GASKET
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
69
NUT
70
STOP CLUTCH PEDAL
71
RESERVOIR , UP TO CHASSIS: 023 100513 072 102501 073 103666
72
FILLER CAP BUTTRESS THREAD
73
SEAL RING , UP TO CHASSIS: 023 100513 072 102501 073 103666
74
STRAINER
81
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
83
INTERMEDIATE PIECE
87
LINE , TO BE ADAPTED DURING ASSEMBLY
87
LINE , Replaced By: A1003203953
88
PIPE , UP TO CHASSIS: 007,008,015,017 227753 011 105482 060 111609 062 105438
89
BOOT FROM CLUTCH MASTER CYLINDER LINE TO SLAVE CYLINDER
90
HOSE
90
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE 000 107020 003 054264 007 044899 083 000733 086 000493 093 000366 102,103 086476 105 109378 183 000930 190 000870, Replaced By: A1232950713, +001A1232950340, +001A1232950350
91
LOCK HYDRAULIC LINE TO CAB
92
CLAMP
93
HOSE30 MM, ORDER BY THE METER
93
HOSE
94
SHEET METAL SCREW BRACKET TO CAB FLOOR
96
SLAVE CYLINDER , Replaced By: A0012956807
96
SLAVE CYLINDERTEVES
99
BLEEDER VALVE
100
PROTECTIVE CAP , Replaced By: A0004217187
100
PROTECTIVE CAP ,5 962906
102
REPAIR KIT , Replaced By: A0002903367
102
REPAIR KITTEVES,TO 0002954007, UP TO CHASSIS: 005,007,008,015,017 207581 011 101771 060 102445 062 101972
107
GASKET
110
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
111
LINE , 071355
113
BRACKET PIPE LINE TO BELL HOUSING, 071355
115
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
115
SCREW , Replaced By: N304017008016
116
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
REPAIR KIT SLAVE CYLINDER TO 2012900311,0002958207
999
SLAVE CYLINDER SLAVE CYLINDER TO 000 295 65 07,001 295 30 07,
999
REPAIR KIT , Replaced By: A0002900611
999
STRAINER , Replaced By: A0004313734
999
INTERMEDIATE PIECE , Replaced By: A0002950036
999
LOCK , Replaced By: A1072950173
999
LOCK
999
INTERMEDIATE PIECETO 000 295 82 06
999
LOCK
999
HOSE , Replaced By: A0002952135
999
BOOT
999
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE 000 107020 003 054264 007 044899 083 000733 086 000493 093 000366 102,103 086476 105 109378 183 000930 190 000870, Replaced By: A1232950713, +001A1232950340, +001A1232950350
999
BOOT KUGELFISCHER
999
BOOT
999
BOOT
999
MASTER CYLINDER , Replaced By: A0012951506
999
MASTER CYLINDER , 000,002,010,100,102,103,112 UNTIL PRODUCTION STOP UP TO CHASSIS: 005,017 024922 015,235020 105,107,108,117,119 054273 110 428722 114 000072 115 243643, Replaced By: A0002958506, +001A0009970886
999
MASTER CYLINDER , Replaced By: A0012951506
999
SLAVE CYLINDER , Replaced By: A0012956807
999
MASTER CYLINDER , Replaced By: A0002957706
999
MASTER CYLINDER , Replaced By: A0012958706
999
SLAVE CYLINDER , Replaced By: A0002956507
999
PROTECTIVE CAP ,5 962906
999
SWITCH , Replaced By: A0005453509, +002A0009909251, +001N006797012250
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 005,017 024922 015,235020 105,107,108,117,119 054273 110 428722 114 000072 115 243643, Replaced By: A0005864229
999
REPAIR KIT , Replaced By: A0002902867
999
REPAIR KIT , Replaced By: A0002902111
999
REPAIR KIT TO 000 295 85 06
999
SNAP RING
999
SNAP RING , TO 000 295 40 07
999
PLUG
999
HOSE , ORDER BY THE METER 107.022 005201 ALSO INSTALLED ON 005190-005192,005194-005199. 107.023 012497 107.024 021804 ALSO INSTALLED ON 021794,021804
999
HOSE , Replaced By: A0099973882
999
HOSE , Replaced By: A0099973882
999
HOSE FROM RESERVOIR TO MASTER CYLINDER
999
PAD , Replaced By: A1232910082
999
SPACER TUBE
999
LOCK , Replaced By: A1072950173
999
LINE FROM CLUTCH HOSE TO CLUTCH SLAVE CYLINDER, FROM CHASSIS: 000,002,010 089164 015 105337 100,102,103,110,112 262248 115 112353 005,017,105,107,108,117,119 000001 UP TO CHASSIS: 005,017 003779 105,107,108,117,119 004645
999
BRACKET , FROM CHASSIS: 000,002,010 089164 015 105337 100,102,103,110,112 262248 115 112353 005,017,105,107,108,117,119 000001 UP TO CHASSIS: 005,017 003779 105,107,108,117,119 004645 FROM CHASSIS: 005,017 024965 105,107,108,117,119 054001
999
CLAMP FORKED SUPPORT,TOP
999
BRACKET , Replaced By: A3092910091
999
GROMMET , Replaced By: A1079970881
999
PEDAL
999
BRACKET
999
LINE , Replaced By: A1152901213
999
PEDAL
999
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
999
BEARING
999
BEARING , Replaced By: A1152901031
999
ROD
999
LINE FROM CLUTCH HOSE TO CLUTCH SLAVE CYLINDER, FROM CHASSIS: 005,017 003780 105,107,108,117,119 004646
999
BEARING , Replaced By: A1152901231
999
LINE , FROM CHASSIS: 005,017 003780-024964 105,107,108,117,119 004646-054000, Replaced By: A1152901513, +001A1082950440, +001A1152951140, +001N000933008131, +001N073379006101, +001N912004008100
999
LINE , Replaced By: A1232900813
999
PEDAL
999
BRACKET , Replaced By: A1152940140
999
NUT ROD TO LEVER,526440
999
BRACKET , UP TO CHASSIS: 005,017 003779 105,107,108,117,119 004645 FROM CHASSIS: 005,017 024965 105,107,108,117,119 054001
999
BRACKET , Replaced By: A1089950520
999
HOSE , Replaced By: A0099973882
999
LINE FROM CLUTCH MASTER CYLINDER TO SLAVE CYLINDER, USED W/5-SPEED TRANSMISSION
999
PAD BRAKE PEDAL
999
SPRING , Replaced By: A1079930410
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
999
SCREW , Replaced By: N304017008008
999
SCREW , Replaced By: N304017008016
999
SCREW , Replaced By: N304017008027
999
SHEET METAL SCREW
999
SHEET METAL SCREW HEATING PIPE
999
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
