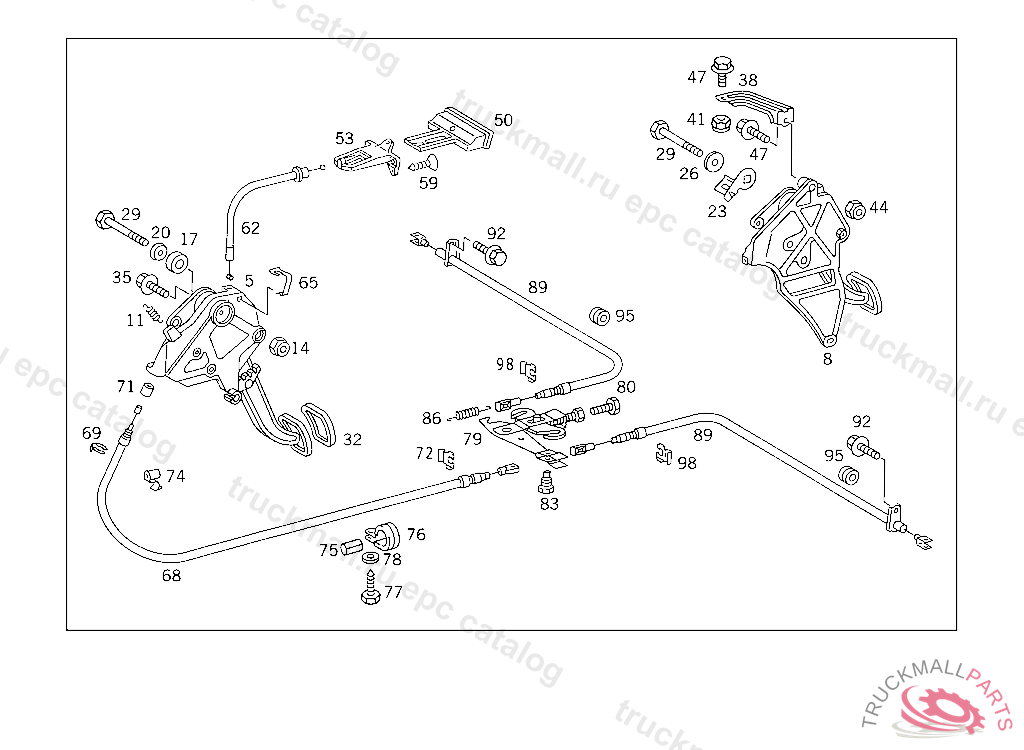

Поз.
Артикул
Описание
5
PARKING BRAKE
8
PARKING BRAKE , Replaced By: A1244200684
8
PARKING BRAKE
11
SPRING
11
SPRING , Replaced By: A1249932810
14
NUT OIL TANK TO BRACKET
17
DAMPING RING
20
WASHER
23
BRACKET
26
WASHER COMPRESSED AIR LINE TO BRACKET
29
SCREW
32
PAD PEDAL
35
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
38
WEB
41
NUT SWITCH TO FLOOR PLATE
44
NUT HORN TO BRACKET M8
44
NUT , Replaced By: N913023008003
47
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
47
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
47
SCREW SPRING CASE TO CONTROL ARM
50
HANDLE
53
GUIDE
59
SCREW
62
BRAKE CABLE
62
BRAKE CABLE
65
CLIP
68
BRAKE CABLE FRONT
68
BRAKE CABLE FRONT
68
BRAKE CABLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: F 083182, Replaced By: A1244202685
68
BRAKE CABLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: F 083182, Replaced By: A1244203685
68
BRAKE CABLE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: F 083182, Replaced By: A1244203685
69
LOCK TAIL LAMP
71
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
72
SPRING
74
CLAMP
74
CLAMP , Replaced By: A0009955020
75
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
76
CLAMP AT TUNNEL
77
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
78
WASHER COMPRESSED AIR LINE TO BRACKET
78
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
79
SHACKLE BRAKE READJUSTMENT
80
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
83
SCREW FRONT BRAKE CABLE TO BRAKE READJUSTMENT
86
SPRING
89
BRAKE CABLE REAR
92
SCREW BRAKE CABLE TO REAR AXLE
95
GROMMET BRAKE CABLE TO REAR AXLE
98
SPRING
