Mercedes A1245000449 - БАЧОК РАСШИРИТЕЛЬНЫЙ

300 D 124.130 200-300 9/89-10/92, 200D-300D 9/89-7/93

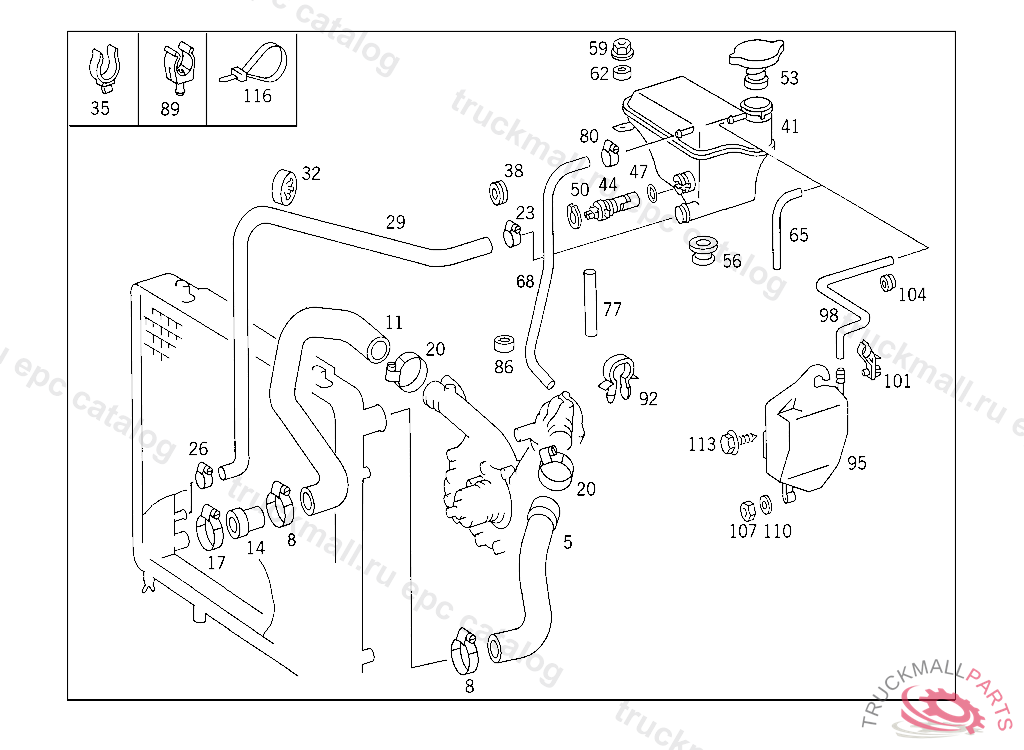

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES

Поз.
Артикул
Описание
5
A1245011582
HOSE AT THERMOSTAT,TOP
8
A0069970590
LOOM TIE
11
A1245011682
HOSE BOTTOM
20
N916026036000
CLAMP , Replaced By: A0069970590
20
A0069970590
LOOM TIE
41
A1245001749
TANK EXPANSION TANK
41
A1245000649
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 225458, Replaced By: A1245001749
44
A1245400244
SWITCH COOLING WATER LEVEL INDICATOR
47
A0129970348
SEAL RING
50
N000471030002
LOCK RING MAIN SHAFT,FRONT
53
A1245000406
CLOSING COVER RADIATOR
56
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
59
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
65
A0219977682
HOSE
65
A0079972682
HOSE , Replaced By: A0219977682
68
N000000000734
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
80
A1409950036
CLAMP , Replaced By: A0059970190
80
N916026014000
CLAMP , Replaced By: A1409950036
80
A0059970190
HOSE CLAMP LINE MOUNTING
86
A1164660882
RUBBER RING
86
A1164661282
RUBBER RING
89
A1245001831
BRACKET DE-AERATION LINE TO 124 505 03 55 / 04 55
95
A1245000449
TANK OVERFLOW
