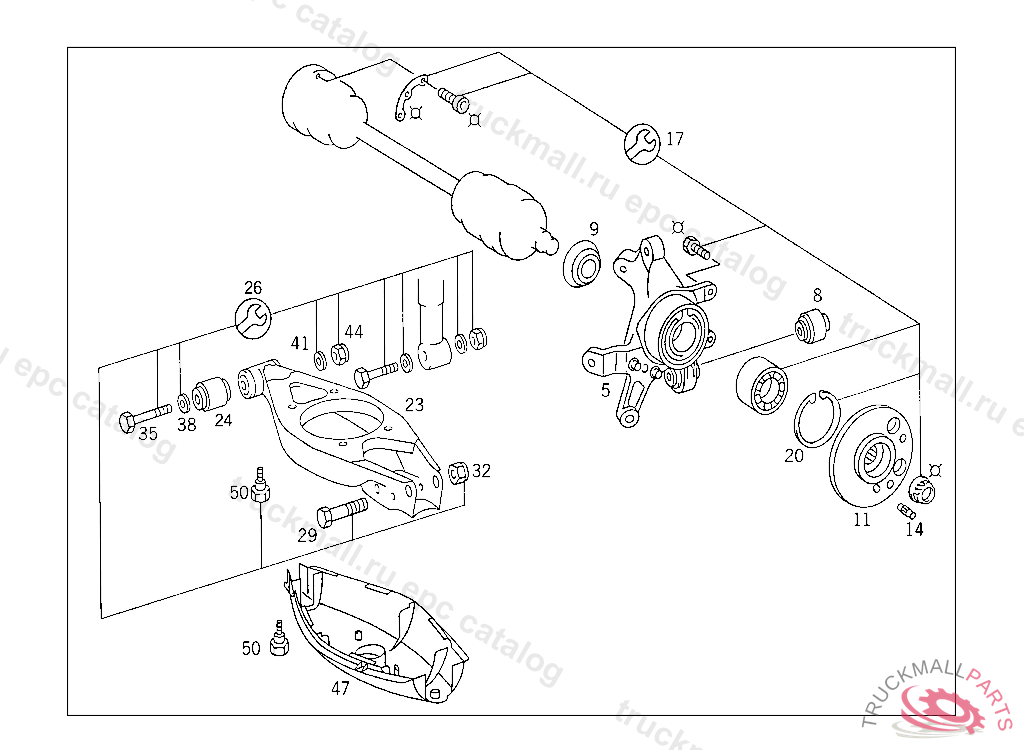

Поз.
Артикул
Описание
5
WHEEL BEARING WITH LOWER CONTROL ARM JOINT AND WHEEL MOUNTING,LEFT
5
WHEEL BEARING WITH LOWER CONTROL ARM JOINT AND WHEEL MOUNTING,RIGHT
8
JOINT
8
JOINT , Replaced By: A2203520227
9
SEAL RING , FOR SUBSEQUENT INSTALLATION IN CASE OF BAD ROAD CONDITIONS
11
FLANGE
14
PIN
17
REPAIR KIT REAR WHEEL BEARING
17
REPAIR KIT , Replaced By: A1249800516
20
LOCK
23
CONTROL ARM SPRING CONTROL ARM
23
CONTROL ARM , Replaced By: A1243504106, +001A1243528565
23
CONTROL ARM , Replaced By: A1243504106, +001A1243528565
23
CONTROL ARM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 038747, Replaced By: A1243505006
23
CONTROL ARM , Replaced By: A1243505306
24
RUBBER MOUNTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 038747, Replaced By: A1243527065
24
RUBBER MOUNTING , Replaced By: A1243528465
24
RUBBER MOUNTING , Replaced By: A2023520165
24
RUBBER MOUNTING
26
REPAIR KIT MOUNTING PARTS
29
SCREW SPRING CONTROL ARM TO WHEEL BEARING
29
SCREW , Replaced By: N308676014014
32
NUT , Replaced By: N910113014001
32
NUT BRACKET TO SIDE MEMBER
35
SCREW SPRING CONTROL ARM TO REAR SUBFRAME
35
SCREW , IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES, Replaced By: N308765012023
38
WASHER , Replaced By: A1243520276
38
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
41
WASHER SPRING CONTROL ARM TO REAR SUBFRAME
41
WASHER , Replaced By: A2103570275
44
NUT , Replaced By: N910113012003
44
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
47
COVERING SPRING CONTROL ARM
50
SCREW PROTECTIVE PLATE TO SPRING CONTROL ARM
50
SCREW , IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES, Replaced By: A2109900336
999
THRUST ARM PARTS KIT
999
CONTROL ARM , Replaced By: A1293500806
999
CONTROL ARM , Replaced By: A1293500906
999
CONTROL ARM (PARTS KIT),STRUT, A 240011 (SINDELFINGEN PLANT PRODUCTION END) F 226694
999
CONTROL ARM (PARTS KIT),STRUT
999
CONTROL ARM (PARTS KIT), SPRING CONTROL ARM
999
CONTROL ARM (PARTS KIT),CAMBER STRUT,LEFT
999
TIE ROD
