Поз.
Артикул
Описание
5

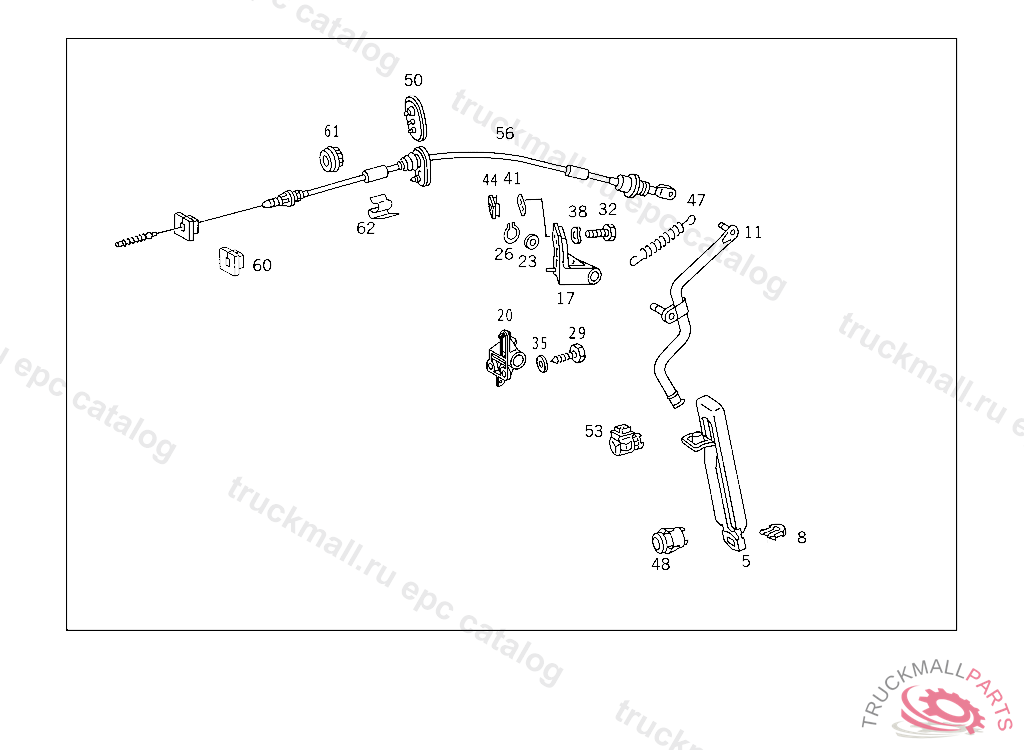

ACCELERATOR PEDAL
8
CLIP
8
BRACKET , Replaced By: A1249888678
11
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1243002125, +001A2013010318, +001A1299930810
11
LEVER ACCELERATOR PEDAL
11
LEVER ACCELERATOR PEDAL,B 838714,J 003392
17
BEARING ACCELERATOR PEDAL BEARING,B 838714,J 003392
17
BEARING , Replaced By: A1243010318
20
BEARING PEDAL LEVER TO FRONT PANEL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
20
BEARING PEDAL LEVER
20
BEARING ACCELERATOR PEDAL BEARING TO 124 300 21 25
23
FITTED WASHER ACCELERATOR PEDAL BEARING,B 838714,J 003392
26
LOCK RINGTO 000 553 37 01,000 553 39 01,
29
SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22
32
SCREW LICENSE PLATE TO BRACKET
35
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
SPRING WASHER LICENSE PLATE TO BRACKET
41
GASKET BEARING TO FIRE WALL
44
NUT RETAINER , Replaced By: A0019906791
44
NUT RETAINER LICENSE PLATE TO BRACKET
47
SPRING ACCELERATOR PEDAL TO 124 300 21 25
47
SPRING ACCELERATOR PEDAL,B 838714,J 003392
48
STOP FULL THROTTLE
48
STOP ACCELERATOR PEDAL,A 907056
50
GROMMET PASSAGE OF LINE THRU PARTITION PANEL, LEFT
53
SWITCH (KICK-DOWN SWITCH)
56
WIRE CABLE
56
WIRE CABLE
60
GUIDE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2023010093
60
GUIDE
61
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
