Поз.
Артикул
Описание
9

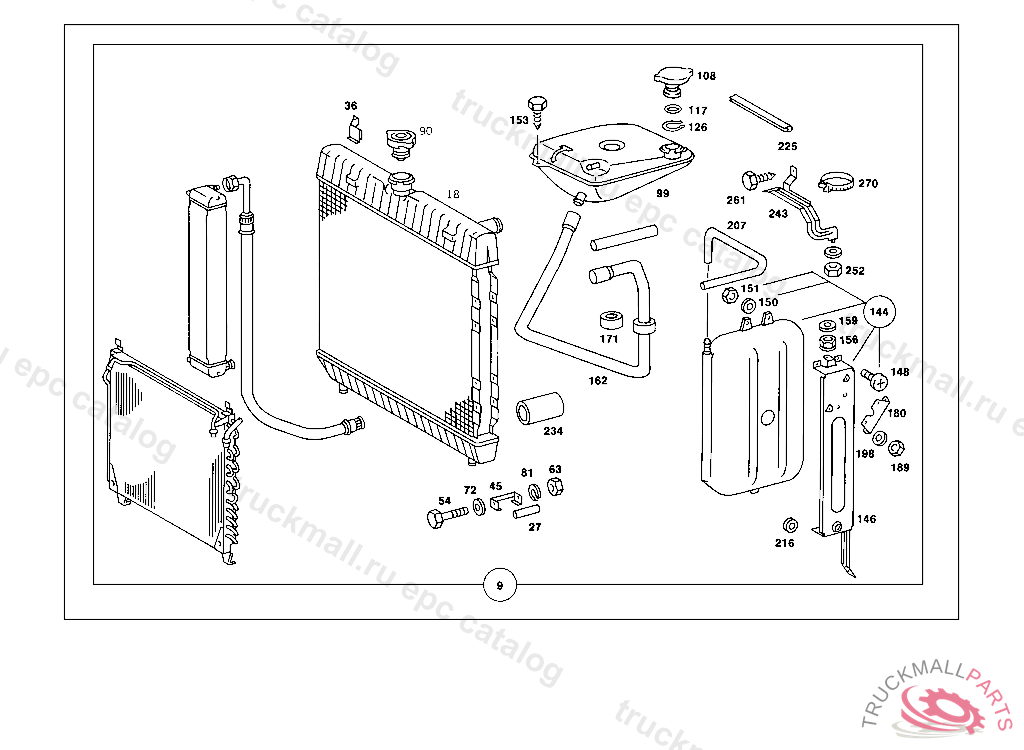

RADIATOR RANGE OF DELIVERY
18
RADIATOR
18
RADIATOR , Replaced By: A1265003303
18
RADIATOR , Replaced By: A1265004803
27
SLEEVE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1265010424
27
SLEEVE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1265010424
27
SLEEVE16.0 MM
36
BRACKET TOP
45
BRACKET LATERAL
54
SCREW HOUSING TO PLATE
54
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
63
NUT BATTERY MOUNTING
63
NUT CYLINDER TO BRACKET TO0002902112
72
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
72
WASHER COMPRESSED AIR LINE TO BRACKET
81
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
CLOSING COVER RADIATOR
90
RADIATOR CAP
90
FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 205503, Replaced By: A1245000406
99
TANK , Replaced By: A1265001549, +001A0005010044, +001A0129970348, +001N000471030002
99
TANK EXPANSION TANK
108
COVER , Replaced By: A1265000084
117
SEAL RING
126
LOCK RING MAIN SHAFT,FRONT
144
TANK OVERFLOW, ONLY FOR USE WITH AIR CONDITIONER,OR WITH AIR CONDITIONING AUTOMATICS
144
TANK , Replaced By: A1265000549, +001A1264300310, +003N000933004067, +003N000934004006, +003N009021004108
146
BRACKET
148
SCREW AT INSTRUMENT PANEL M 4X16,036897
150
WASHER COVERING TO CYCLONE AIR TRAP
150
WASHER , Replaced By: N009021004207
151
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
153
SHEET METAL SCREW BRACKET TO CAB FLOOR
156
NUT , Replaced By: N913002006009
156
NUT OIL TANK TO BRACKET
159
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
159
WASHER COMPRESSED AIR LINE TO BRACKET
162
HOSE FROM EXPANSION TANK TO RADIATOR
171
RUBBER RING
180
FIXTURE
189
NUT TACHOGRAPH TO BRACKET
198
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
198
WASHER , Replaced By: N009021005205
207
HOSE8X12 MM, ORDER BY THE METER
207
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
216
GROMMET BATTERY CASE
225
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
225
EDGE GUARD SECTION , Replaced By: A0029873572
225
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
234
HOSE PROTECTION AGAINST SCORING FOR UPPER COOLING WATER HOSE
243
BRACKET CABLE HARNESS
252
NUT CYLINDER TO BRACKET TO0002902112
252
NUT BATTERY MOUNTING
261
SHEET METAL SCREW , NOT USED
270
LOOM TIE TO MOUNT PLASTIC PIPING
