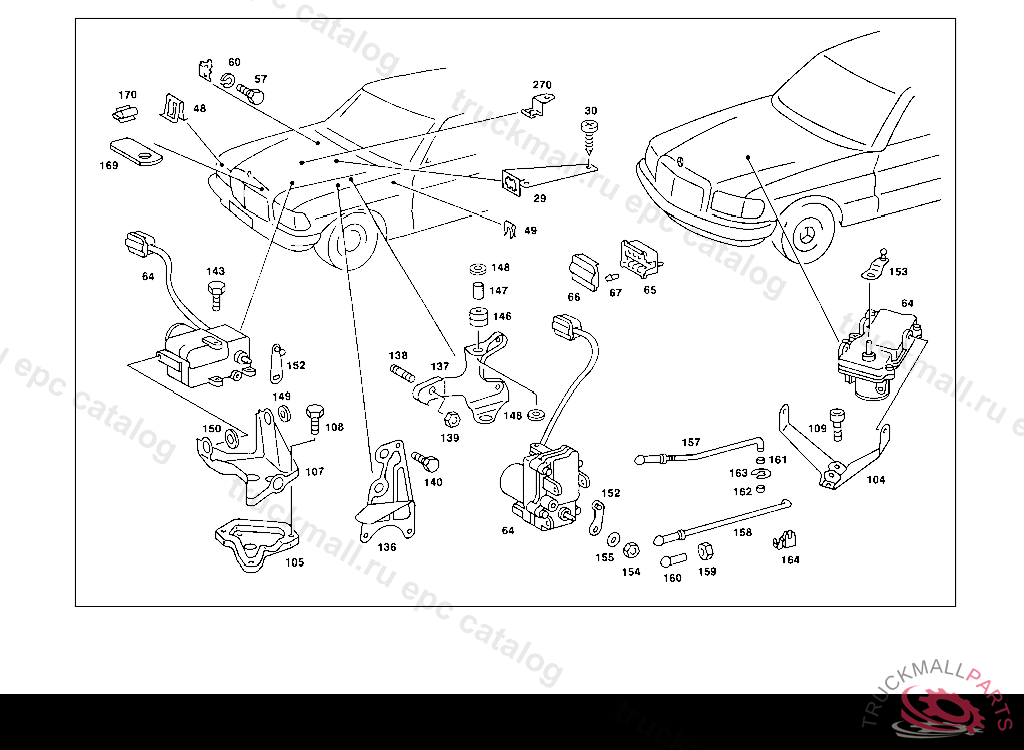

Поз.
Артикул
Описание
29
BRACKET TEMPOMAT(CRUISE CONTROL) PLUG-CONNECT.
30
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
48
CLIP CONTROL UNIT TO BRACKET
49
CLIP CONTROL UNIT TO BRACKET
57
SCREW PUMP TO BRACKET
57
SCREW COVER PLATE TO BRACKET
60
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
64
CONTROL UNIT ACTUATOR
64
CONTROL UNIT , Replaced By: A0025458632
65
WIRE CABLE , EXHAUST STOCK OF OLD PART NUMBER FIRST123.105,130,132 073447, Replaced By: A1233003630
65
PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE
66
COVERTO 006 545 81 28
67
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
104
BRACKET ACTUATOR, 110 540 14 73 BRACKET TO BE REWORKED IF USED WITH ADDITIONAL HEATER
105
BRACKET ACTUATOR
107
BRACKET ACTUATOR
108
SCREW COVER PLATE TO COVER PLATE M 6 X 12
108
SCREW , Replaced By: N304017006018
109
SCREW , Replaced By: N007984008003
109
SCREW BRACKET TO INTAKE MANIFOLD
136
BRACKET ACTUATOR
137
BRACKET ACTUATOR
138
STUD BOLT BRACKET TO ENGINE
139
NUT BATTERY MOUNTING
139
NUT BALL PIVOT TO LEVER
139
NUT CYLINDER TO BRACKET TO0002902112
140
SCREW , Replaced By: N304017008018
140
SCREW SUPPORT TO FENDER
143
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
143
SCREW 3/2-WAY VALVE TO BRACKET
143
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
146
GROMMET ACTUATOR TO BRACKET
146
GROMMET , Replaced By: A1029970081
147
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
147
SPACER TUBE ACTUATOR TO BRACKET
147
SPACER TUBE ACTUATOR TO BRACKET
147
SPACER TUBE OIL LINE TO BRACKET,K 093236
148
WASHER ACTUATOR TO BRACKET
148
WASHER ACTUATOR TO BRACKET
149
WASHER
150
WASHER ACTUATOR TO BRACKET
152
LEVER
152
LEVER
152
LEVER
153
LEVER
153
LEVER
154
NUT
155
LOCK , Replaced By: A0009941310
155
LOCK
157
ROD FROM CONTROL LEVER TO CARBURETOR
157
ROD , Replaced By: A1020701175, +001A1020720250, +001N912001004000
158
ROD , Replaced By: A1020701775
158
BALL SOCKET
158
ROD FROM CONTROL LEVER TO THROTTLE HOUSING
159
NUT TACHOGRAPH TO BRACKET
160
CONICAL CUPTO 102 070 09 75
160
BALL SOCKET
160
BALL SOCKET , Replaced By: A0009918922
160
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
160
END PIECE , Replaced By: A0009918822
161
BUSHING , Replaced By: A1020720250, +001A1020701175, +001N912001004000
161
BUSHING ROD TO CONTROL LEVER
162
ROLLER ROD TO CONTROL LEVER
163
LOCK ROD TO CONTROL LEVER
163
LOCK ROD TO CONTROL LEVER
164
LOCK , Replaced By: A0009931125
164
SPRING ROD TO CONTROL LEVER
169
BRACKET WIRE CABLE TO AIR CLEANER, TO BE ADAPTED DURING ASSEMBLY
170
CLIP WIRE CABLE TO AIR CLEANER
270
BRACKET ELECTRIC CABLE TO INTAKE MANIFOLD,REAR
999
RUBBER PAD , Replaced By: A1263280181
999
WIRE CABLE , EXHAUST STOCK OF OLD PART NUMBER FIRST116.020 095700, Replaced By: A1143000430
999
BRACKET CONTROL UNIT
