Mercedes A1239900704 - Болт

380 SEL 126.033 SONDERSCHUTZ/SPECIAL EDITION

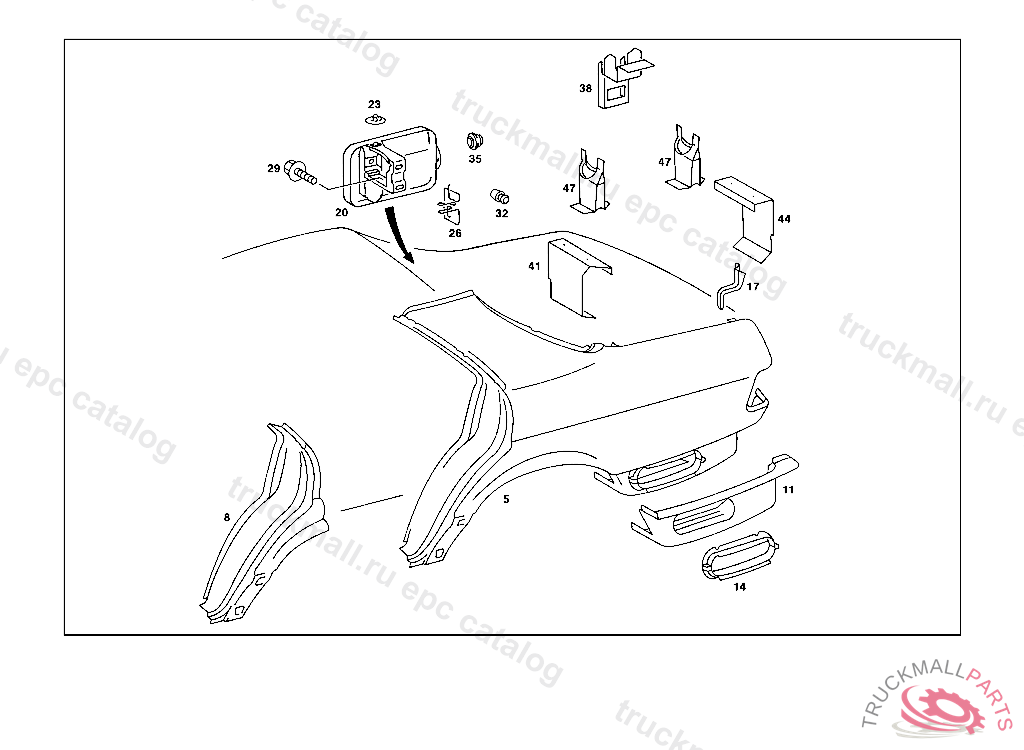

63 SIDE PANEL - 045 REAR FENDER

Поз.
Артикул
Описание
5
A1266300621
REAR FENDER RIGHT
5
A1266300121
REAR FENDER LEFT
5
A1266300221
REAR FENDER , Replaced By: A1266300621, +001A1267500506, +001A0008009075, +001A1248000179
8
A1266371009
PANELLING RIGHT FRONT
8
A1266370909
PANELLING LEFT FRONT
11
A1266370260
FLOOR LATERAL RIGHT
11
A1266370160
FLOOR LATERAL LEFT
14
A1266300036
BRACKET REAR BUMPER
17
A1266370516
REINFORCEMENT REAR FENDER FLANGE TO LEFT BOTTOM TAIL PANEL
17
A1266370616
REINFORCEMENT REAR FENDER FLANGE TO RIGHT BOTTOM TAIL PANEL
20
A1267500906
FLAP FUEL FILLER NECK
20
A1267500806
FLAP , Replaced By: A1267500906
23
A0009949645
LOCK. CLIP LICENSE PLATE FLAP
26
A1237580536
SPRING
29
A1239900704
SCREW , 023 001800 033 005039 123 001592 130 001725
29
A1239900004
SCREW , Replaced By: A1239900704
32
A1089870540
RUBBER BUFFER
35
A1299971581
GROMMET FILLER NECK FLAP
38
A1266370231
CONSOLE TOP
41
A1266370031
CONSOLE FRONT
44
A1266370131
CONSOLE REAR
47
A1266100331
CONSOLE JACK
