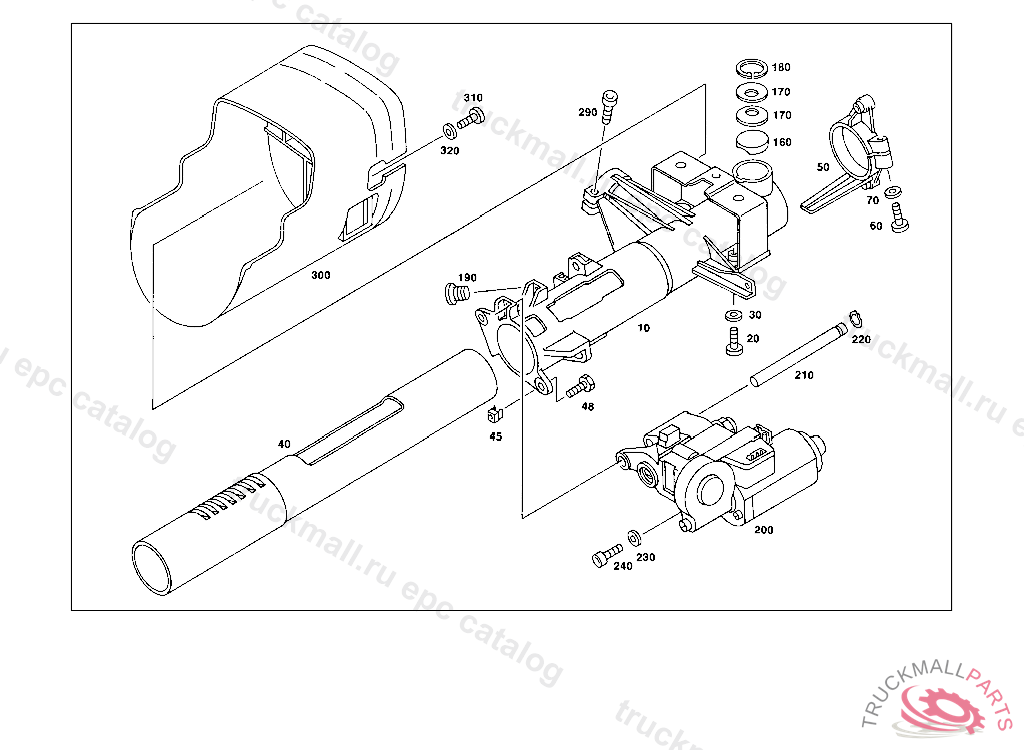

Поз.
Артикул
Описание
10
STEER. COLUMN JACKET TUBE OUTSIDE
20
SCREWM 6X16
20
SCREW BEARING BRACKET TO TRANSMISSION
30
WASHER BRACKET TO HEAT SHIELD
40
STEER.COLUMN JACKET TUBE , Replaced By: A1244621220
40
STEER.COLUMN JACKET TUBE INSIDE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
45
NUT RETAINER HEATER UNIT TOP BRACKET TO BODY
48
SCREW , Replaced By: N304017006018
48
SCREW COVER PLATE TO COVER PLATE M 6 X 12
50
BRACKET BLINKER SWITCH, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
60
SCREW OIL TANK TO BRACKET
70
WASHER BRACKET TO HEAT SHIELD
160
THRUST WASHER , Replaced By: A1244600422
170
DISC SPRING , Replaced By: A1244600422
180
LOCK RING21 MM
190
SCREW
200
GEARING
200
GEARING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1264600325
210
PIN
220
LOCK HOSE FASTENING
230
WASHER EXHAUST MUFFLER TO STRAP
230
WASHER , Replaced By: N000125008443
230
SPACER WASHER , Replaced By: N000125008418
240
SCREW GRIP RAIL MOUNTING M 8 X 25
290
SCREW SHIM TO LEAF SPRING
290
SCREW , Replaced By: A0019907212
290
SCREW , Replaced By: N000912006175
300
COVER
310
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
320
SPRING WASHER ALTERNATOR CONNECTION D+
999
BRACKET
999
SEAL RING
999
STEER. COLUMN JACKET TUBE
999
STEERING SHAFT , Replaced By: A1264602109
999
BRACKET , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1244622539
999
CLAMPING PIECE
999
CLAMPING PIECE
999
CLIP BELT LOCK TO SEAT RAIL
