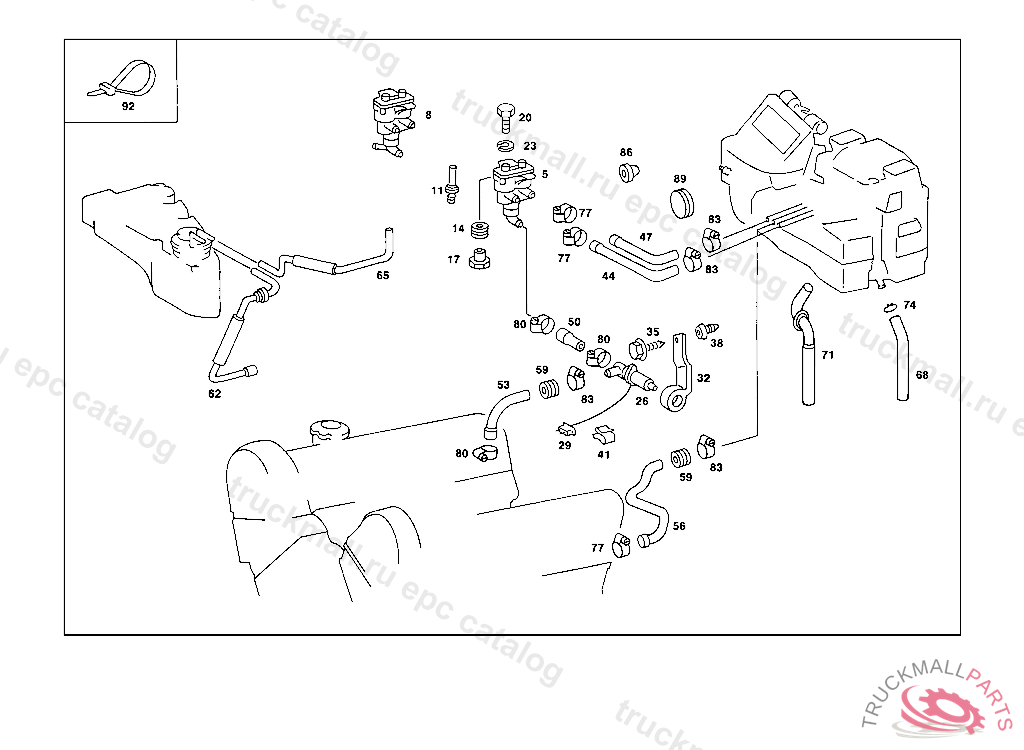

Поз.
Артикул
Описание
5
VALVE (DOUBLE WATER VALVE),INBOARD HEATING
8
VALVE (DOUBLE WATER VALVE),INBOARD HEATING
11
MAGNET
14
GROMMET TACHOGRAPH OR SPEEDOMETER
17
THREADED CHUCK WATER VALVE TO BRACKET, FROM MODEL YEAR '81
20
SCREW , Replaced By: N304017006016
20
SCREW PUMP TO BRACKET
23
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
26
RECIRCULATING PUMP , FROM MODEL YEAR '81
29
PLUG HOUSING
32
BRACKET CIRCULATION PUMP,A 346727
32
BRACKET , Replaced By: A1268301814
35
SHEET METAL SCREW
38
TREENAIL , Replaced By: A6739880025
38
TREENAIL BRACKET TO WINDOW SILL
41
CLIP PLUG TO REAR PILLAR
44
HOSE BETWEEN HEAT EXCHANGER AND WATER VALVE,LEFT
47
HOSE BETWEEN HEAT EXCHANGER AND WATER VALVE ,RIGHT
50
HOSE FROM WATER VALVE TO RECIRCULATING PUMP
50
HOSE , Replaced By: A4635016382
53
HOSE FROM RECIRCULATING PUMP TO ENGINE
56
HOSE BETWEEN ENGINE AND HEAT EXCHANGER
59
GROMMET CAB ROOF
62
HOSE FEED, PANE WASHER WATER HEATING
65
HOSE RETURN, PANE WASHER WATER HEATING
68
HOSE , Replaced By: A1268301196
68
HOSE CONDENSED WATER DRAIN,LEFT
71
HOSE CONDENSED WATER DRAIN,RIGHT
74
CLAMPING RING CONDENSED WATER DRAIN HOSE, ONLY USED WITH AIR CONDITIONING AUTOMATICS AND TEMPMATIK
77
CLAMP PRESSURE REGULATOR
80
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
80
CLAMP , Replaced By: N000000000667
83
CLAMP , Replaced By: A0059970190
86
RUBBER BUFFER , Replaced By: A0009871840
86
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
89
GROMMET
92
LOOM TIE TO MOUNT PLASTIC PIPING
