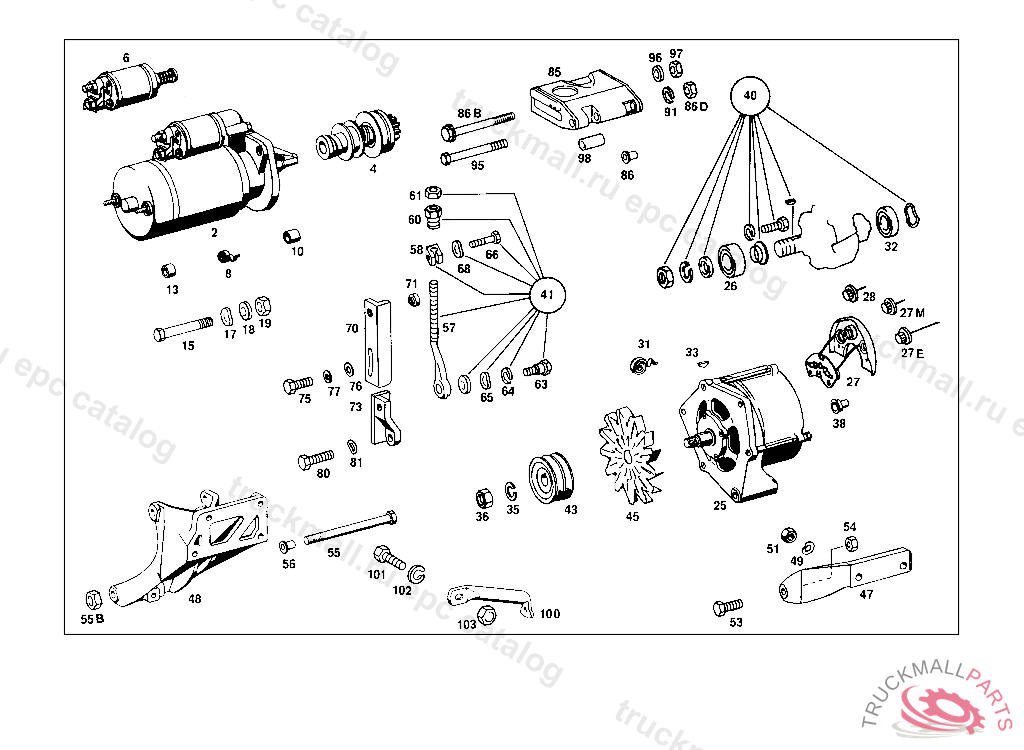

Поз.
Артикул
Описание
4
PINION , FROM ENGINE 920 10/50,20/60 018986 920 12/52,22/62 004371 923 10/50,20/60 017512 923 12/52,22/62 002602 FROM ENGINE 924 10/50,20/60 000377 924 12/52,22/62 000015 926 10/50,20/60 000759 926 12/52,22/62 000022 UP TO ENGINE 923 10/50,20/60 227198 923 12/52,22/62 043266 926 10/50,20/60 019623 926 12/52,22/62 000838
6
SOLENOID SWITCHTO 002 151 15 01
8
SPRINGTO 002 151 31 01/002 151 15 01
10
BUSHING DRIVE END BEARING TO 003 151 07 01,001 151 64 01
13
BEARING BUSHING. BUSHINGTO 002 151 15 01/002 151 31 01
15
SCREW BRACKET TO TRANSMISSION CASE
17
WASHER
18
SPRING WASHER CAB FLOOR
19
NUT STRAP TO SUPPORT,5 149419
25
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0081543202
25
ALTERNATOR
26
GROOVED BALL BEARING
26
GROOVED BALL BEARING , Replaced By: N000625436303
27
RECTIFIER , Replaced By: A0001548216
27
RECTIFIERTO 007 154 33 02/ 52 02/ 60 02
28
DIODE EXCITER TO 003 154 33 02
31
SPRING
32
GROOVED BALL BEARING
33
WOODRUFF KEY
35
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
36
NUT RELEASE BEARING LUBRICATION
36
NUT , Replaced By: N308675014002
36
NUT , Replaced By: N308675014000
38
BOOTTO 003 154 39 02
40
REPAIR KIT ROTOR TO 005 154 52 02
41
REPAIR KIT ALTERNATOR MOUNTING, UP TO ENGINE 923 10/50,20/60 142462 923 12/52,22/62 026809 926 10/50,20/60 007796 926 12/52,22/62 000297
43
PULLEY
45
FANTO 007 154 60 02
47
SUPPORT , 92310/50,20/60 004072 92312/52,22/62 028968 93310/50,20/60 000230 93312/52,22/62 000064
49
SPRING WASHER , Replaced By: N000137008212
51
NUT
53
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET M 8X95
54
NUT
57
SCREW (CLAMPING BOLT)
58
CLAMPING PIECE CLAMPING BOLT TO ALTERNATOR
60
NUT CLAMPING BOLT TO ALTERNATOR
61
NUT , 92010/50 032496 92012/52 032226 92020/60 038677 92022/62 040186 92110/50 003108 92112/52 000352 92120/60 003755 92122/62 000449
63
SCREW CLAMPING BOLT TO BRACKET
64
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
65
SPRING WASHER STEERING COLUMN BRACKET TO CAB
66
SCREW YOKE TO SHIFTING TUBE
68
SPRING WASHER , Replaced By: N000137008212
70
BRACKET
71
NUT , 92010/50 032497 92012/52 032227 92020/60 038678 92022/62 040187 92110/50 003109 92112/52 000353 92120/60 003756 92122/62 000450 923,933 000001 92310/50,20/60 004072 92312/52,22/62 028968 93310/50,20/60 000230 93312/52,22/62 000064
73
BRACKET
75
SCREW BRACKET TO CONSOLE
75
SCREW , Replaced By: N304017010043
76
WASHER , Replaced By: A1309900240
76
WASHER
77
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
SCREW , 92010/50 032497 92012/52 032227 92020/60 038678 92022/62 040187 92110/50 003109 92112/52 000353 92120/60 003756 92122/62 000450 923,933 000001
81
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
LOCK WASHER T-FITTING TO BRACKET
999
CABLE SHOE , 92310/50,20/60 007894 92312/52,22/62 034662 93310/50,20/60 000854 93312/52,22/62 000128
999
CABLE SHOE
999
SCREW PIPE CLAMP
999
SCREW , Replaced By: A0069909301
999
SCREW , Replaced By: N304017008021
999
SCREW BRACKET TO FRAME
999
SCREW , Replaced By: A0019907212
999
SCREW , Replaced By: N000912006175
999
GROOVED BALL BEARING , TO 002 154 38 02 TO 003 154 67 02 TO 002 154 46 02 TO 004 154 46 02
999
WASHER BRACKET TO HEAT SHIELD
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SCREW
999
SCREW ELECTRIC CABLE THRU ENGINE CROSS MEMBER
999
SPARK PLUG
999
SPACER WASHER VALVE TO VALVE
999
BALL BEARINGTO 008 154 80 02
999
BALL BEARING , Replaced By: A0079819025
999
BALL BEARING , Replaced By: A0079815525
999
SCREW BRACKET TO APPARATUS SUPPORT
999
BALL BEARING , Replaced By: A0079814325
999
ALTERNATOR , Replaced By: A0031546202, +001A0001551115, +001A0001552918
999
ALTERNATOR , Replaced By: A0021544602, +001A0001552918, +001A0001553118
999
REGULATOR AND CUT-OUT , Replaced By: A0021545806
999
ALTERNATOR , Replaced By: A0021544602, +001A0001552918, +001A0001553118
999
REGULATOR AND CUT-OUT (ELECTRONIC FIELD REGULATOR) TO 005 154 32 02
999
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0081543202
999
STARTING MOTOR12 V, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SCREW SHIM TO LEAF SPRING
999
SCREW
999
DIODE
999
DIODE , Replaced By: A0015481518
999
PULLEY
999
SOLENOID SWITCH , UP TO CHASSIS 309.000-026 002322 309.070-091 000434
999
STARTING MOTOR , 92010/50,20/60 007735 92012/52,22/62 006751 92110/50,20/60 000698 92112/52,22/62 000077, Replaced By: A0021517101, +001N000931012137, +001N000934012008
999
SCREW , TO 008 154 32 02
999
BUSHING DRIVE END BEARING TO A 005 151 06 01
999
CARBON BRUSH SET LESS CABLE,TO BE SOLDERED IN 4
999
PINION , UP TO CHASSIS 309.000-026 002322 309.070-091 000434
999
SOLENOID SWITCH , Replaced By: A0011522310
999
RECTIFIER
999
SPRING , Replaced By: A0001541393
999
CARBON BRUSH SET
999
CARBON BRUSH SETTO 005 154 34 02
999
CARBON BRUSH SET , TO 008 154 32 02
999
FAN
999
PULLEY
999
SHIM 0.1 MM THICK. SPACER WASHER AS REQUIRED 0.2 MM
999
DISTRIBUTOR
999
DISTRIBUTOR CAP , Replaced By: A0001585302
999
DISTRIBUTOR CAP , 92310/50,20/60 007894 92312/52,22/62 034662 93310/50,20/60 000854 93312/52,22/62 000128
999
CABLE SLEEVE
999
PROTECTIVE CAP
999
PROTECTIVE CAP
999
DIODE POS.
999
SCREW , Replaced By: A0019901321
999
SCREW , Replaced By: A0009909921
