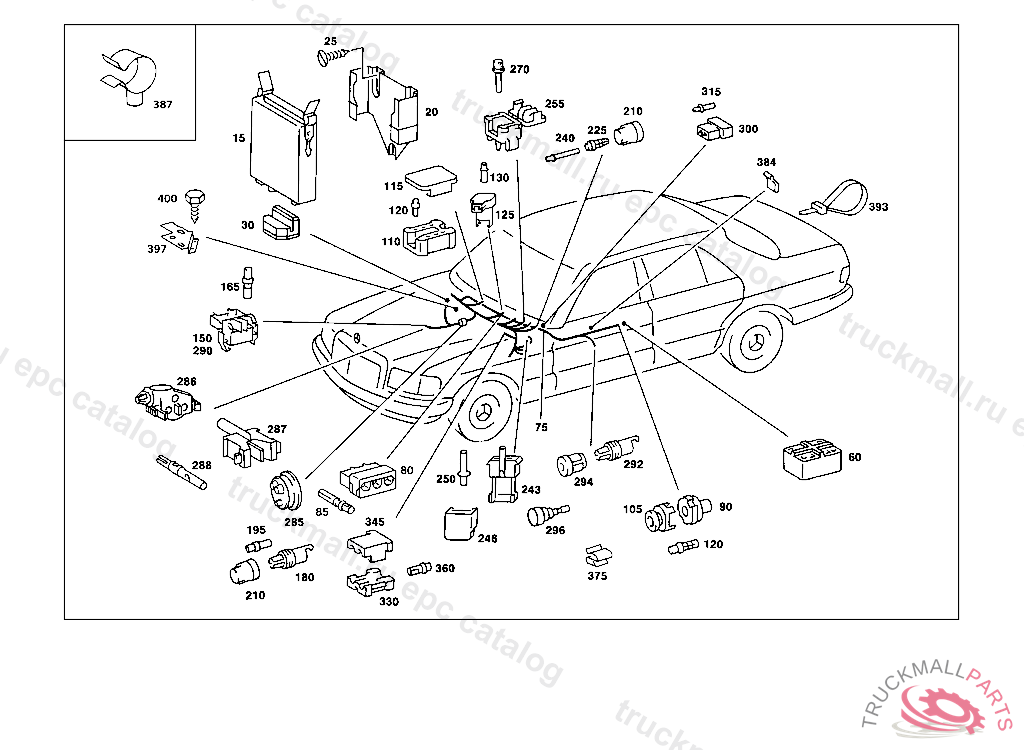

Поз.
Артикул
Описание
15
CONTROL UNIT (CONTROL UNIT)
20
BRACKET CONTROL UNIT
20
BRACKET CONTROL UNIT
25
COMBINATION BOLT BRACKET TO PILLAR
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0135450232
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
30
CONTROL UNIT (TYPE PROGRAMMABLE READ-ONLY MEMORY)
60
SWITCH OPERATING UNIT
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS
75
CABLE HARNESS , Replaced By: A1245406110
80
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
85
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
90
PLUG INSTRUMENT CLUSTER,15-POLE
105
COVERTO 010 545 04 28
110
PIN BUSHING HOUSING SENSOR
115
COVERTO 009 545 16 28
120
ROUND PIN BUSHING2.5 MM2
120
PIN BUSHING , Replaced By: A0025459926
125
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
130
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
130
ROUND PIN BUSHING , Replaced By: A0035452626
150
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
165
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
165
ROUND PIN BUSHING , Replaced By: A0035452626
180
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
195
ROUND PIN BUSHING4 MM2
210
COVERTO 011 545 10 28
225
PLUG HOUSING MAIN CABLE HARNESS
240
PLUG PIN
243
PLUG HOUSING BIPOLAR
246
COVERTO 008 545 08 28,008 545 09 28
246
COVERTO 008 545 08 28
250
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
250
PLUG PIN , Replaced By: A0135457928
255
PLUG INSTRUMENT CLUSTER,4-POLE
270
PLUG 8-POLE
270
PIN BUSHING HOUSING , Replaced By: A0125456228
270
PLUGTO 012 545 89 28, UP TO END OF MODEL YEAR '85
285
GROMMET ELECTRIC CABLE THRU FIRE WALL
286
PLUG ADAPTERTO 014 545 04 28
287
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
288
PIN BUSHINGTO 000 821 19 26
290
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
292
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
294
COVERTO 011 545 10 28
296
PLUG SOCKET UNIPOLAR
296
PLUG , Replaced By: A1265401081
300
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
315
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
315
CONTACT BUSHING , Replaced By: A0035450626
330
PLUG HOUSING
345
COVER
360
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
375
CLIP CABLE HARNESS TO SIDE PART
375
CLIP , Replaced By: A0059889178
384
CLIP CABLE HARNESS MOUNTING
387
CLAMP HOSE TO HOSE 20 MM
393
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
393
LOOM TIE , Replaced By: A0019974190
397
BRACKET PLUG CONNECTION
400
SHEET METAL SCREW BRACKET TO CAB FLOOR
