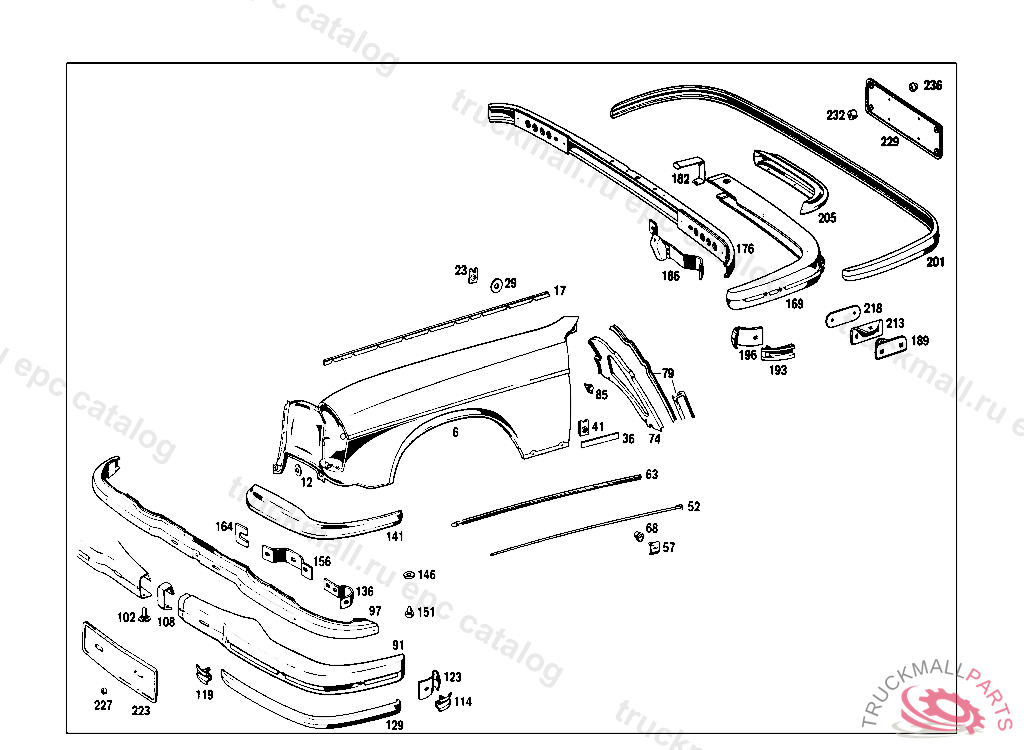

280 SEL - 108.019 - 88 FRONT AND REAR END SHEET METAL

6

FRONT FENDER LEFT

12

WASHER

17

ADHESIVE TAPE (SEAL),BETWEEN OUTSIDE REAR PILLAR AND ROOF 560 MM, ORDER BY THE METER

23

LOCK FRAME TO REINFORCEMENT FRAME

29

WASHER

36

PAD 2 MM

41

LOCK

52

WELT LEFT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

57

FASTENER BUTTON UPPER PART, 012 UP TO CHASSIS 072966,016 UP TO CHASSIS 011936,018 UP TO CHASSIS 010466,019 UP TO CHASSIS 010646

68

FASTENER BUTTON

68

FASTENER BUTTON. GROMMET , Replaced By: A0019882081

68

FASTENER BUTTON , Replaced By: A0089970381

68

GROMMET , Replaced By: A0019882081

74

PARTITION PANEL LEFT

79

RUBBER SEAL , Replaced By: A1108840098

85

LOCK

91

FRONT BUMPER FACE BAR LEFT

97

STIFFENING STIFFENING TO FRONT BUMPER

102

SCREW BRACKET TO FENDER,K 104588

108

BUMPER JOINT COVER

129

RAIL LEFT

136

BRACKET LEFT

141

FRONT BUMPER FACE BAR UPPER PART, LEFT

146

WASHER UPPER PARTS OF BUMPER TO FRONT BUMPERS

151

RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.

156

BRACKET INSIDE LEFT

164

WASHER

169

REAR BUMPER FACE BAR LEFT

176

STIFFENING

182

BUMPER JOINT COVER

186

BRACKET LEFT

189

BRACKET

201

RAIL

205

REAR BUMPER FACE BAR UPPER PART, LEFT

213

BRACKET

218

INTERMEDIATE LAYER BRACKET TO REAR FENDER

223

LICENSE PLATE MOULDING FRONT

227

SPACER RING PROTECTIVE WRAPPER TO BODY, NOT USED

229

LICENSE PLATE MOULDING , Replaced By: A1158170078

232

SPACER

236

RUBBER BUFFER , Replaced By: A1089870540

999

CLIP

999

FASTENER BUTTON

999

WASHER

999

PLATE , Replaced By: A0009902048

999

WASHER

999

SEALING CORD PAINT RUN-OFF HOLE IN REAR WINDOW OPENING, ORDER BY THE METER

999

CLIP LICENSE PLATE LAMP TO BUMPER

999

CLIP , 007020

999

CLIP , 067966

999

ADHESIVE TAPE , Replaced By: A0019875646

999

LEVER , Replaced By: A1088870274

999

REPAIR KIT , Replaced By: A1155860288

999

REPAIR KIT RADIATOR GRILLE SHELL MOUNTING MATERIAL

999

FRONT FENDER , Replaced By: A1115860188

999

BRACKET RIGHT

999

FRONT FENDER , Replaced By: A1115860188

999

MERCEDES STAR , Replaced By: A1085860088

999

SEAL LEFT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

RADIATOR GRILLE SHELL , Replaced By: A1085860188

999

SEAL RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

SEAL LEFT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646

999

FRONT FENDER RIGHT

999

WELT RIGHT, 012 UP TO CHASSIS 072966, 016 UP TO CHASSIS 011936, 018 UP TO CHASSIS 010466, 019 UP TO CHASSIS 010646

999

SEAL RIGHT, 012 FROM CHASSIS 072967, 016 FROM CHASSIS 011937, 018 FROM CHASSIS 010466, 019 FROM CHASSIS 010646

999

FRONT BUMPER FACE BAR RIGHT

999

GARNISH MOULDING , Replaced By: A1088801182

999

GARNISH MOULDING , Replaced By: A1088801282

999

GARNISH MOULDING LEFT

999

GARNISH MOULDING RIGHT

999

REAR BUMPER FACE BAR RIGHT

999

INTERMEDIATE LAYER , Replaced By: A0039895485

999

PARTITION PANEL RIGHT

999

FRONT BUMPER FACE BAR UPPER PART,RIGHT

999

BRACKET RIGHT

999

REAR BUMPER FACE BAR UPPER PART,RIGHT

999

BRACKET INSIDE RIGHT

999

RAIL RIGHT

999

SEAL , Replaced By: A1158870298

999

LEVER RIGHT

999

MERCEDES STAR , Replaced By: A1085860388

999

SLEEVE , Replaced By: A1085860088

999

HOOK , Replaced By: A1085860088

999

PIN , Replaced By: A1085860088

999

RUBBER BUFFER , Replaced By: A1089870240

999

RUBBER BUFFER

999

RUBBER RING , Replaced By: A1109870741

999

RUBBER BUFFER

999

SUPPORT RIGHT

999

ENGINE HOOD CATCH , Replaced By: A1158870006

999

ENGINE HOOD CATCH , Replaced By: A1158800160

999

INTERMEDIATE LAYER , Replaced By: A1158810997

999

SEAL 770 MM ORDER BY THE METER

999

WASHER

999

RUBBER RING

999

RUBBER RING

999

REPAIR KIT FRONT FENDER, 000,001,004,010 FROM CHASSIS 161050,002,003,005,011 FROM CHASSIS 016720,100,101,104,110 FROM CHASSIS 287154

999

SEAL , 010 UP TO CHASSIS 003573,012 UP TO CHASSIS 007747 DELIVER ADDITIONALLY:1X111 990 00 52,1X111 993 01 25

999

GARNISH MOULDING , 024/025 UP TO CHASSIS 003544 EXCEPT FOR 003479,003498,003515-003519,003521,003522,003524-003530,003532-003534,003536-003543

999

GARNISH MOULDING , Replaced By: A1168880185

999

RADIATOR GRILLE SHELL , Replaced By: A1145860288

999

LICENSE PLATE MOULDING , Replaced By: A1158170378

999

LICENSE PLATE MOULDING

999

SPRING , Replaced By: A1158880334

999

SPRING , UP TO CHASSIS: 007,008,015,017 257476 011 110343 060 121219 062 108533

999

GARNISH MOULDING , Replaced By: A1168880185

999

WASHER , Replaced By: N000125008417

999

SEAL RING

999

GARNISH MOULDING TRANSVERSE

999

REPAIR KIT , Replaced By: A1118800097

999

SCREW , FROM CHASSIS: 000,002,010 037518 015 035157 100,102,103,110,112 085746 115 039046 UP TO CHASSIS: 015 200000 110 400000 115 200000

999

SCREW

999

WASHER , Replaced By: N000125004319

999

WASHER BRACKET TO SUPPORT

999

WASHER , Replaced By: N000433005304

999

WASHER , Replaced By: N000125008443

999

WASHER EXHAUST MUFFLER TO STRAP

999

WASHER , Replaced By: N000125010532

999

WASHER RADIATOR TO RUBBER MOUNTING

999

LOCK WASHER TAIL LAMP TO BRACKET

999

SPRING WASHER , Replaced By: N000137008212

999

SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER

999

WASHER BOOT TO CAB FLOOR

999

SCREW COVER PLATE TO BRACKET

999

SCREW , Replaced By: N304017006020

999

SCREW COVER PLATE TO BRACKET

999

SCREW , Replaced By: N304017008016

999

SCREW , Replaced By: N304017008021

999

SCREW , Replaced By: N304017008034

999

SCREW END PIECE TO EXHAUST PIPE M 10X25

999

NUT BOOT TO AIR DUCT AND TO AIR CLEANER

999

NUT TACHOGRAPH TO BRACKET

999

NUT BALL PIVOT TO LEVER

999

NUT , Replaced By: N304032008006

999

TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733

999

SHEET METAL SCREW

999

SHEET METAL SCREW

999

SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083

999

SHEET METAL SCREW BRACKET TO WINDOW SILL

999

SHEET METAL SCREW6.3X16

999

SHEET METAL SCREW BRACKET TO FIRE WALL 6.3X22

999

SHEET METAL SCREW HOSE TO FIRE WALL

999

SHEET METAL SCREW CONTROL UNIT TO CAB B 5.5X19

999

SHEET METAL SCREW FRONT FENDER TO FRONT STIFFENING

999

SCREW ELECTRIC CABLE TO FUSE BOX

999

SCREW

999

SCREW

999

WASHER , Replaced By: N009021005205

999

WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.

999

WASHER , Replaced By: N009021006208

999

WASHER COMPRESSED AIR LINE TO BRACKET

999

WASHER , Replaced By: N009021010209

999

WASHER BRACKET TO COVERING

999

SCREW PUMP TO BRACKET

999

SCREW LICENSE PLATE TO BRACKET

999

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

999

SCREW PIPE CLAMP

999

SCREW BRACKET TO CROSS CONNECTION STRUT

999

NUT

999

SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER

999

LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER

999

LOCK WASHER CLAMP TO BRACKET AND TO PIPE

999

LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
