Поз.
Артикул
Описание

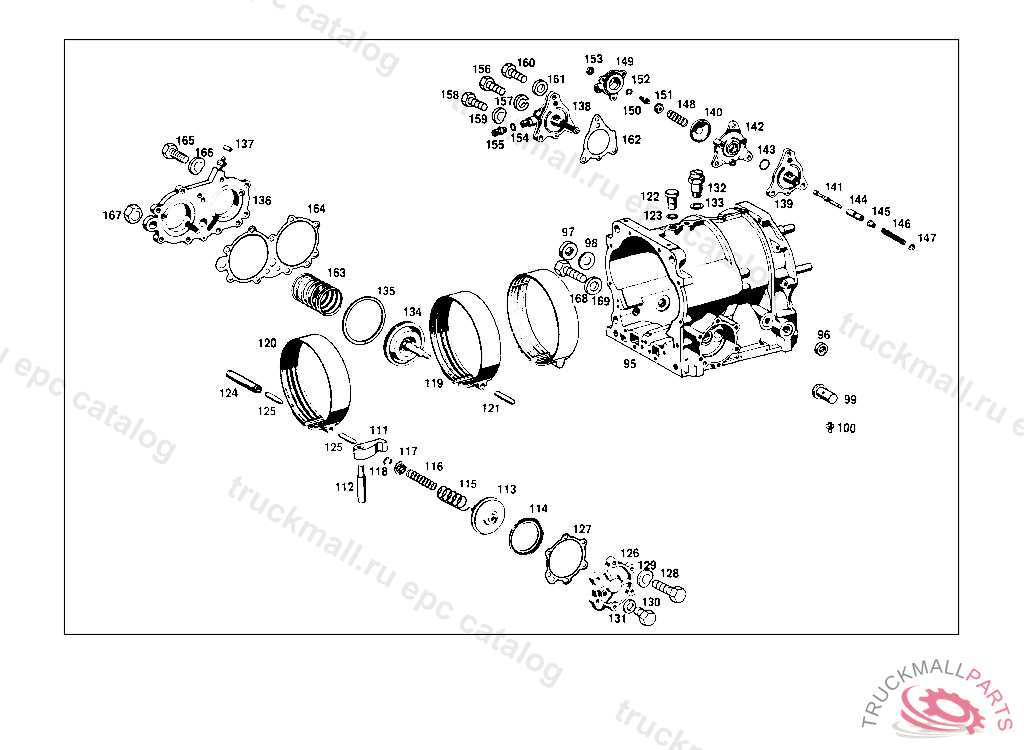

95
TRANSMISSION CASE , DELIVER ADDITIONALLY:1 BREATHER 112 270 01 82 AND 1 SEAL RING 007603 014100
96
SEAL RING
97
SEAL RING
98
WASHER MOUNTING PARTS
99
VALVE
100
TUBE
111
LEVER , NO LONGER AVAILABLE
112
PIN , NO LONGER AVAILABLE
113
PISTON , NO LONGER AVAILABLE
114
BOOT
115
SPRING
116
SPRING
117
SPACER TUBE
118
LOCK
119
BRAKE BAND , Replaced By: A1122702562
119
BRAKE BAND
120
BRAKE BAND , Replaced By: A1122702362
120
BRAKE BAND , 015 FROM TRANSMISSION 004996
121
PIN AS REQUIRED 35 MM
122
SCREW PLUG
123
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
124
SCREW
125
PIN
126
COVER
127
GASKET
127
GASKET , Replaced By: A1122771780
128
SCREW
129
SPRING WASHER BRACKET TO PEDAL ASSEMBLY BEARING BRACKET, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 10/50, 20/60, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR , SEE FOOTNOTE 3, ALSO INSTALLED ON 099892
130
SCREW PLUG MEASURING CONNECTION
131
SEAL RING SCREW PLUG
132
BREATHER , 021,023 FROM TRANSMISSION 006060
133
SEAL RING
134
PISTON , NO LONGER AVAILABLE
135
SEAL RING
136
BEARING COVER WITH SHIFTING SHAFT, NO LONGER AVAILABLE
137
SEAL RING
138
HOUSING
139
INSULATING PLATE
140
DIAPHRAGM
141
PIN AS REQUIRED 80 MM, 015 FROM TRANSMISSION 002756
142
INTERMEDIATE PLATE
143
SEAL RING
144
SPACER TUBE
145
GUIDE , 015 FROM TRANSMISSION 002756
146
SPRING , 015 FROM TRANSMISSION 002756
147
LOCK PLATE , 000 000032 003 000013 007 000799 086 006409 093 007546 102,103 000031 105 000017 183 013075 190 019713 283 001214
148
SPRING
149
COVER
150
SCREW
151
SPRING RETAINER
152
SEAL RINGTO 000 429 24 30
153
NUT BALL PIVOT TO LEVER
154
SEAL RINGTO 001 431 72 14
155
SCREW FITTING LUBRICATING LINE
156
SCREW LEVER TO SHAFT
156
SCREW , Replaced By: N304017005002
157
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
158
SCREW
159
SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
160
SCREW PLUG MEASURING CONNECTION
161
SEAL RING SCREW PLUG
162
GASKET , Replaced By: A1122771580
162
GASKET , Replaced By: A1102770180
162
GASKET
163
SPRING
164
GASKET
164
GASKET , Replaced By: A1122771980
165
SCREW
166
SPRING WASHER BRACKET TO PEDAL ASSEMBLY BEARING BRACKET, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 10/50, 20/60, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR , SEE FOOTNOTE 3, ALSO INSTALLED ON 099892
167
NUT FITTING TO CAB FLOOR, NOT USED
168
SCREW PLUG MEASURING CONNECTION
169
SEAL RING SCREW PLUG
999
BEARING BRACKET
999
AUTOMATIC TRANSMISSION , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
LINE , Replaced By: A1232701347, +001A1162700241, +001A1232700079, +001A1129970381, +001A1159975082
999
LINE , FROM CHASSIS 036081, Replaced By: A1232701347, +001A1162700241, +001A1232700079, +001A1129970381, +001A1159975082
999
VALVE BODY ASSEMBLY TO 108 270 06 07, NO LONGER AVAILABLE
999
OIL FILLER PIPE , FROM CHASSIS 003545
999
VALVE BODY ASSEMBLY , WITH 108 270 09 01: UP TO TRANSMISSION 033564 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE BODY ASSEMBLY TO 108 270 04 07, NO LONGER AVAILABLE
999
OIL FILLER PIPE
999
VALVE BODY ASSEMBLY , Replaced By: A1082700607
999
OIL FILLER PIPE , 012 FROM CHASSIS 019536, 014 FROM CHASSIS 016088
999
VALVE BODY ASSEMBLY TO 108 270 00 07, NO LONGER AVAILABLE
999
VALVE BODY ASSEMBLY , Replaced By: A1082700407
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 007281-056141 015 004404-060261 100,102,103,110,112 017471-139360 115 007979-065085, Replaced By: A1152604439, +001A1152670114, +001A1152680550, +001A1152680172, +001A1152691242, +001N007346005000
999
BOOT , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.36,002,003,005,011,017 FROM CHASSIS 034217 ALSO INSTALLED ON SEE FOOTN.37 AND FOOTN.49
999
BEARING BRACKET , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
SHIFTING ROD , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
LEVER , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
SHIFTING ROD
999
GASKET , NO LONGER AVAILABLE INDIVIDUALLY
999
SPACER WASHER AS REQUIRED 0.2 MM, 015 FROM TRANSMISSION 005208
999
LOCK ,020254
999
OUTER DISC , Replaced By: A1092721826
999
HOSE , FROM CHASSIS: 010 043070 015 042951 110 101088 115 046326
999
HOSE FROM TRANSMISSION TO OIL COOLER
999
SEAL RING
999
SCREW BRACKET TO SIDE MEMBER,K 168169
999
SEAL RING ,031534
999
NEEDLE BEARING ,043589
999
SEAL RING
999
NEEDLE BEARING , Replaced By: A0059818110
999
NEEDLE BEARING , Replaced By: A0059818110
999
LOCK ,022986
999
NEEDLE BEARING ,011777
999
NUT RETAINER HEATER CASE TO FIRE WALL
999
NEEDLE
999
SOLENOID
999
SOLENOID , Replaced By: A0003040590
999
SOLENOID
999
BALL SOCKET , 016: FROM CHASSIS 027623 ALSO INSTALLED ON, SEE FOOTNOTE 3, 018: FROM CHASSIS 028986 ALSO INSTALLED ON, SEE FOOTNOTE 4, 019: F ROM CHASSIS 029326
999
BALL SOCKET , 016 UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTNOTE 3, 018 UP TO CHASSIS
999
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT REPAIR SIZE
999
THREADED INSERT
999
NUT BATTERY CABLE
999
NUT
999
NUT BATTERY MOUNTING
999
SCREW , Replaced By: N304017010055
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
999
SCREW PIPE CLAMP
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW PUMP TO BRACKET
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
BALL SOCKET
999
SECURING CLIP. CIRCLIP
999
LOCK WASHER FLEXIBLE SHAFT TO ANGLE DRIVE
999
CLAMPING SLEEVE , Replaced By: N001481005017
999
TOOTHED WASHER ,026784
999
BALL10 MM
999
CLAMPING SLEEVE
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT CYLINDER TO BRACKET TO0002902112
999
NUT TACHOGRAPH TO BRACKET
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: A0089907401
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008016
999
SCREW
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW OIL LINE TO CRANKCASE
999
SCREW , Replaced By: N304017006034
999
SCREW , Replaced By: N304017006018
999
SCREW COVER PLATE TO BRACKET
999
SCREW FLOOR TO FRAME M 6X16
999
SCREW , Replaced By: N304017010050
999
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
999
SCREW , Replaced By: N304017006012
999
SCREW
999
SCREW OIL LINES TO ENGINE,001498
999
SCREW
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER GROUND CABLE TO TRANSMISSION
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137004202
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK WASHER
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
LOCK WASHER
999
WASHER
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
SCREW
999
SCREW STEERING COLUMN PANELLING M 5X12
999
SCREW CLAMP MOUNTING
999
BOOT
999
SEAL RING
999
SEAL RING OUTPUT SHAFT,FRONT 26 MM
999
SPACER RING SUPPORT TO OIL PAN
999
PIN39,15
999
LINE
999
CLAMP OIL LINE TO CONVERTER HOUSING
999
WASHER
999
BOOT
999
SPRING ,024694
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING
999
SPRING , 053009
999
SPRING
999
SPRING
