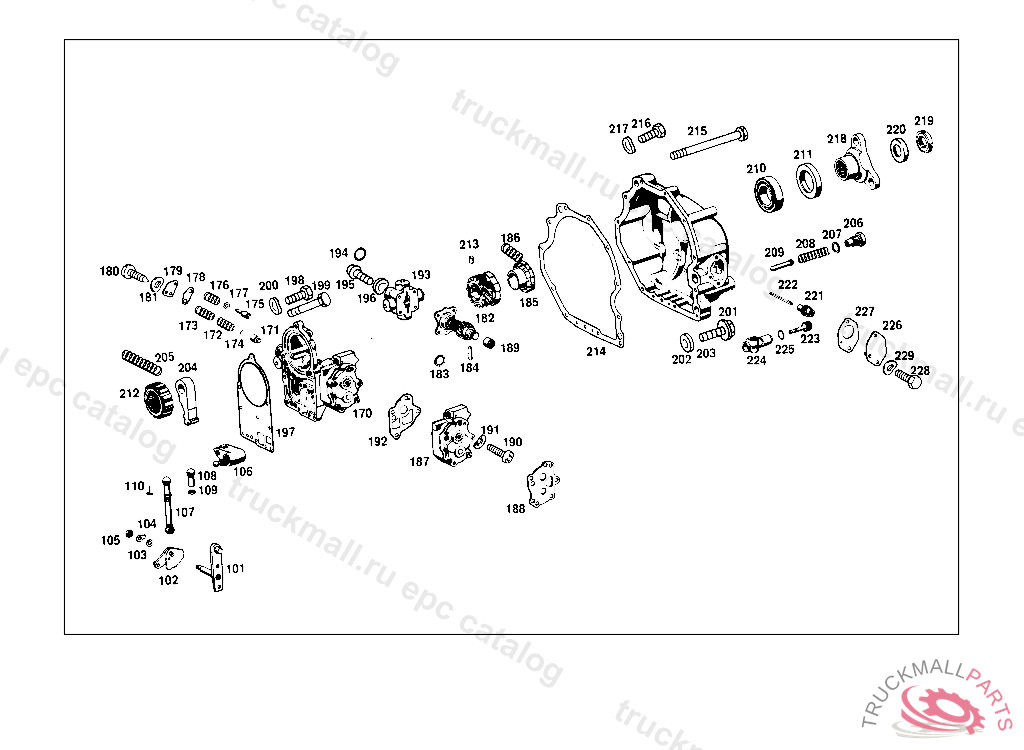

280 SEL - 108.019 - 27 MERCEDES-BENZ AUTOMATIC TRANSMISSION

101

LEVER

102

DETENT

103

WASHER COMPRESSED AIR LINE TO BRACKET

103

WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449

104

LOCK PLATE

105

NUT BALL PIVOT TO LEVER

106

SHIFTING FORK

107

LINKAGE

108

BALL SOCKET

109

NUT , NO LONGER AVAILABLE

110

SECURING CLIP. CIRCLIP

170

CASE COVER LESS GOVERNOR, PUMP, AND DRIVE GEAR, NO LONGER AVAILABLE

171

PISTON , NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

172

SPRING , NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

173

SPRING OUTSIDE, NO LONGER AVAILABLE

174

SPACER WASHER MAXIMUM,4 PIECES, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

175

PISTON , NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

176

SPRING , NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

177

SPACER WASHER MAXIMUM,2 PIECES, NO LONGER AVAILABLE

178

GASKET

178

GASKET , Replaced By: A1122771680

179

LOCKING SHEET

180

SCREW STEERING COLUMN PANELLING M 5X12

181

SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113

182

DRIVE SHAFT , 015 FROM TRANSMISSION 005208 NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

183

SEAL RING

184

PIN REPAIR SIZE 5.4 MM, NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

185

BUSHING , NO LONGER AVAILABLE

186

SPRING

187

OIL PUMP SECONDARY

188

GASKET KIT , NO LONGER AVAILABLE

189

SPACER TUBE FOLLOWER TO DRIVE SHAFT

190

SCREW , Replaced By: N304017006027

190

SCREW APPARATUS PLATE M 6X45

191

SPRING WASHER LICENSE PLATE TO BRACKET

192

GASKET , Replaced By: A1122771880

192

GASKET

193

SENDER UNIT

194

SEAL RING , NOT INCLUDED IN RANGE OF DELIVERY 112 270 11 16

195

SCREW

196

SPRING WASHER AT GENERATOR TERMINAL D+, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113

197

GASKET , Replaced By: A1122771480

197

GASKET

198

SCREW OIL LINE TO CRANKCASE

199

SCREW , Replaced By: N304014006004

199

SCREW BRACKET TO CROSS MEMBER

200

SPRING WASHER LICENSE PLATE TO BRACKET

201

TRANSMISSION CASE REAR

202

SEAL RING SCREW PLUG

203

SCREW PLUG MEASURING CONNECTION

204

PAWL , NO LONGER AVAILABLE

205

SPRING

206

SCREW

207

SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"

208

SPRING

209

PIN

210

GROOVED BALL BEARING INTERMEDIATE BEARING

211

SEAL RING

212

GEAR MAIN SHAFT, NO LONGER AVAILABLE

213

PIN

214

GASKET

214

GASKET , Replaced By: A1122711480

215

SCREW , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040

216

SCREW

217

SPRING WASHER BRACKET TO PEDAL ASSEMBLY BEARING BRACKET, 000,001,004,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 2, 10/50, 20/60, 100,101,104,110 UP TO CHASSIS 099641 EXCEPT FOR , SEE FOOTNOTE 3, ALSO INSTALLED ON 099892

218

FLANGE

219

GROOVED NUT

220

LOCK

221

SPEEDOMETER DRIVE

222

DRIVE SHAFT

223

SPEEDOMETER DRIVE

224

BEARING BODY

225

SEAL RING

226

COVER

227

GASKET

228

SCREW COVER PLATE TO BRACKET

228

SCREW PUMP TO BRACKET

229

SPRING WASHER LICENSE PLATE TO BRACKET

999

NUT BOOT TO AIR DUCT AND TO AIR CLEANER

999

SCREW , Replaced By: A0089907401

999

SCREW , Replaced By: N304017008034

999

SCREW , Replaced By: N304017008021

999

SCREW CLAMP TO BRACKET AND TO PIPE

999

SCREW , Replaced By: N304017008016

999

SCREW

999

SCREW COVER PLATE TO BRACKET

999

SCREW , Replaced By: N304017006034

999

SCREW , Replaced By: N304017006018

999

SCREW COVER PLATE TO BRACKET

999

SCREW FLOOR TO FRAME M 6X16

999

SCREW , Replaced By: N304017010050

999

SCREW PLUG SOCKET TO BRACKET BEHIND CAB

999

SCREW , Replaced By: N304017006012

999

SCREW

999

SCREW OIL LINES TO ENGINE,001498

999

SCREW

999

SPRING WASHER STEERING COLUMN BRACKET TO CAB

999

SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER

999

SPRING WASHER , Replaced By: N000137008212

999

SPRING WASHER GROUND CABLE TO TRANSMISSION

999

SPRING WASHER , Replaced By: N000137004202

999

LOCK WASHER TAIL LAMP TO BRACKET

999

LOCK WASHER

999

LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET

999

LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20

999

LOCK WASHER

999

WASHER

999

WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694

999

SCREW

999

SCREW CLAMP MOUNTING

999

BOOT

999

SEAL RING

999

SEAL RING OUTPUT SHAFT,FRONT 26 MM

999

SPACER RING SUPPORT TO OIL PAN

999

PIN39,15

999

LINE

999

CLAMP OIL LINE TO CONVERTER HOUSING

999

WASHER

999

BOOT

999

SPRING ,024694

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING , 053009

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING LOCK-UP COUPLING 0.32X6.64X27 MM

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

SPRING

999

BUSHING , 114.005,007,015 037181 114.010 033492 114.021 001931 114.022 002382 115.000,002,010 037475 115.015 035971 115.100,102,110 085311 115.115 039087

999

PISTON , NO LONGER AVAILABLE

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

PISTON

999

BUSHING

999

GASKET

999

SHIFT VALVE

999

PIN40,15

999

SHIFT VALVE

999

GASKET

999

PISTON

999

GASKET , 016, 018, 019 FROM TRANSMISSION 052411, 057, 058 FROM TRANSMISSION 025503

999

PISTON

999

VALVE PART

999

PISTON

999

SHIFT VALVE

999

SHIFT VALVE

999

HOUSING

999

COVER

999

GASKET , Replaced By: A1152772880

999

VALVE BODY ASSEMBLY

999

SHIFT VALVE

999

SHIFT VALVE

999

INTERMEDIATE PLATE , TO 115 270 33 07

999

GASKET , Replaced By: A1152772980

999

VALVE PART

999

SHIFT VALVE

999

GASKET , Replaced By: A1152773280

999

BRACKET , WITH 108 270 13 01: FROM TRANSMISSION 000001

999

SHIFT VALVE , NO LONGER AVAILABLE

999

SHIFT VALVE

999

SCREW , TO 115 270 27 11, 115 270 30 11, 115 270 39 11

999

VALVE PART

999

SCREW , TO 115 270 12 11, 115 270 17 11

999

INTERMEDIATE PLATE ,024694

999

LOCKING SHEET ,019885

999

DETENT

999

INTERMEDIATE PLATE ,024694

999

SPACER WASHER

999

GUIDE

999

SEAL RING

999

DRIVE GEAR , FROM TRANSMISSION: 115.000,002,010,015 018035-026754 115.100,102,103,110,112,115 015266-020935 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1152741030, +001A1152700327

999

DRIVE GEAR ,015265

999

CASE ,026754

999

SEAL RING , Replaced By: A0119976447

999

DISC SUPPORT , WITH 108 270 13 01: FROM TRANSMISSION 000001

999

GUARD PLATE

999

GUARD PLATE

999

DISC SUPPORT ,017085
