Mercedes A1664708764 - Обратный топливопровод

GL 350 BlueTEC 4MATIC 166.824

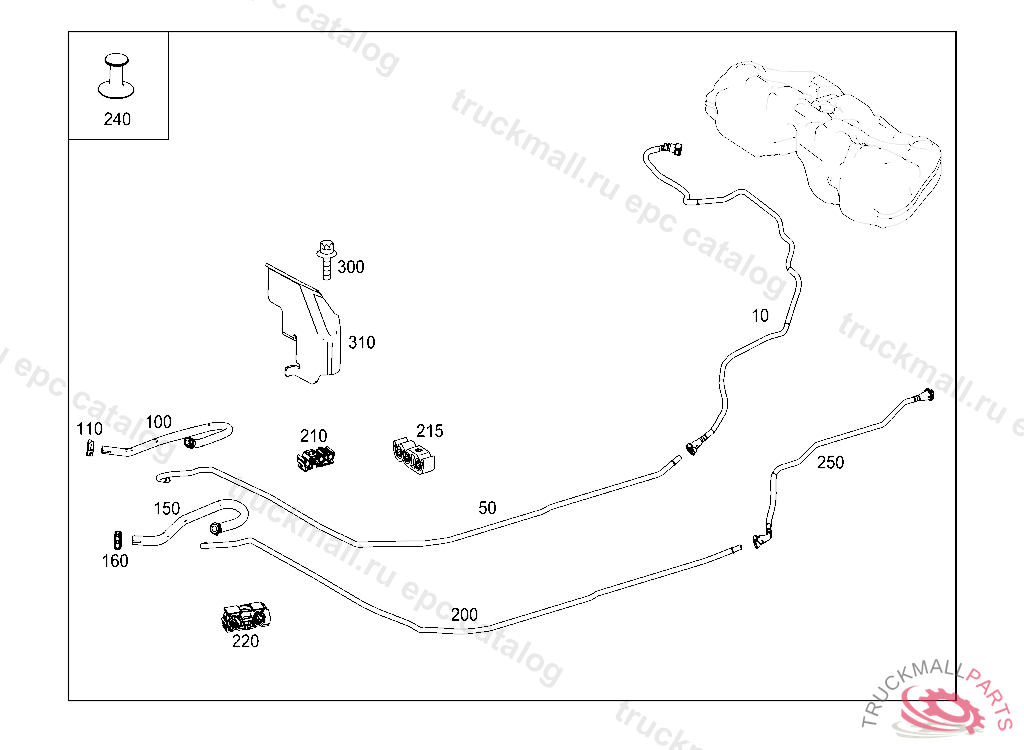

47 FUEL SYSTEM - 040 FUEL LINES, DIESEL VEHICLES

Поз.
Артикул
Описание
10
A1664704264
FUEL FEED LINE
10
A1664700924
FUEL LINE
50
A1664708664
FUEL FEED LINE
100
A1664700975
FUEL HOSE FEED TO ENGINE, Replaced By: A1664701375
100
A1664701375
FUEL HOSE FEED TO ENGINE
110
A0059971990
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
150
A1664701475
FUEL HOSE RETURN, L 00048720120930 M 00048720120930 A 13890220121001
150
A1664701075
FUEL HOSE RETURN, L 00048620120930 M 00048620120930 A 13890120121001
160
A0009957735
CLAMP HOSE TO FEEDLINE AND ENGINE
200
A1664708764
FUEL RETURN LINE
210
A0029956677
LINE FASTENER AT BRACKET, LEFT FRONT
215
A0009957614
LINE HOLDER LINE TO FRAME
220
A0019959577
LINE HOLDER FUEL LINE MOUNTING
240
A0009987221
COVER CAP REFRIGERANT LINE
250
A1664701324
FUEL LINE
250
A1664704464
FUEL RETURN LINE
300
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
310
A6420780084
PROTECTIVE COVER AT CYLINDER HEAD,FRONT
