Поз.
Артикул
Описание

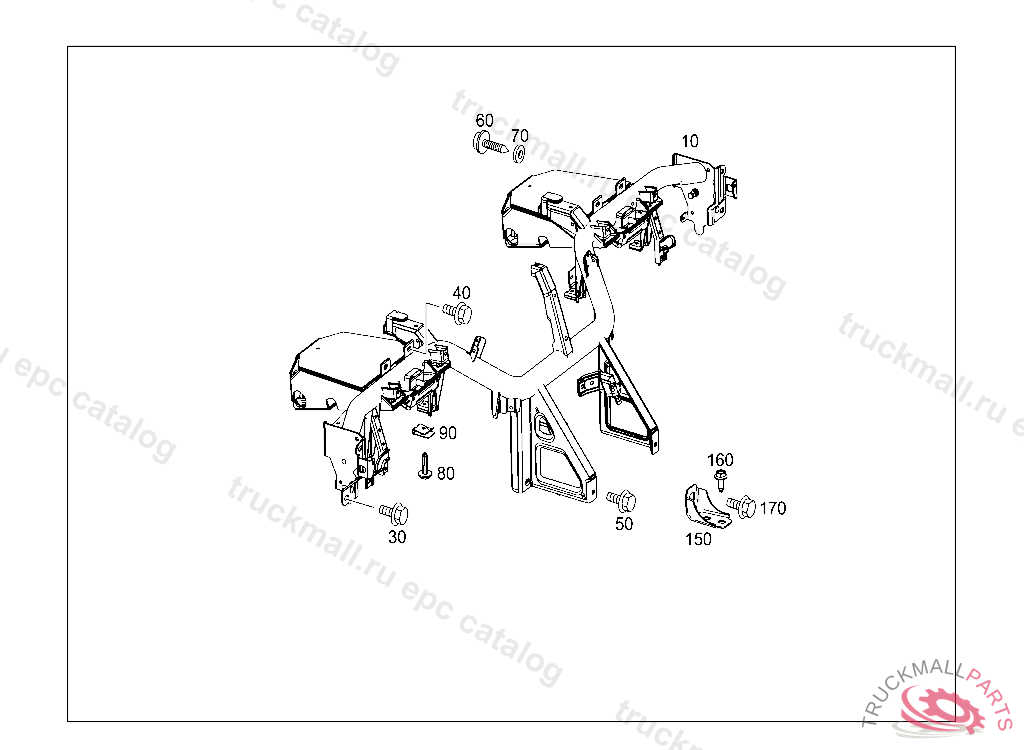

10
CROSS MEMBER BELOW INSTRUMENT PANEL
10
CROSS MEMBER BELOW INSTRUMENT PANEL
30
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
40
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
50
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
60
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
70
WASHER CROSS MEMBER TO FIRE WALL
80
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
90
FUSE AT BRACKET, CROSSMEMBER
150
CONSOLE CROSSMEMBER TO CENTER CONSOLE AT RIGHT
150
CONSOLE CROSSMEMBER TO CENTER CONSOLE AT LEFT
160
BOLT ON SIDE MEMBER FRONT BOTTOM M8X22.5
170
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
