Поз.
Артикул
Описание
5

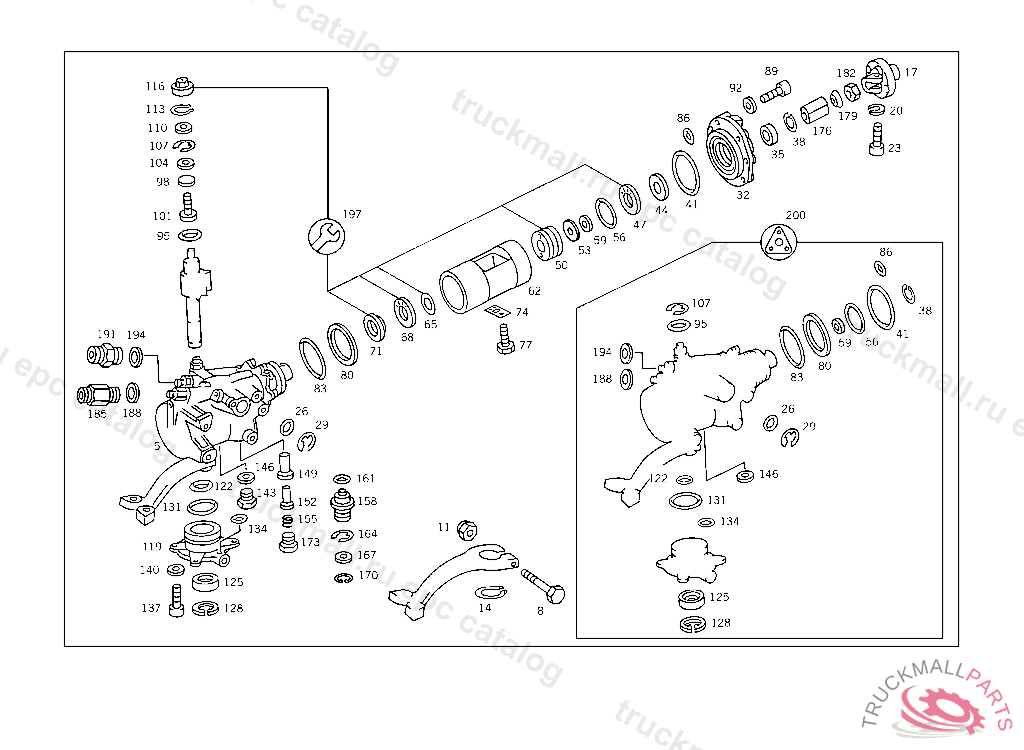

STEERING BOX ASSEMBLY WITH PITMAN ARM, INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SCREW CLAMP, ONE-HOLE
8
SCREW , Replaced By: N308676010017
11
NUT , Replaced By: N910113010002
11
HEXAGON NUT
14
LOCK RING
17
STEERING COUPLING
20
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
23
SCREW
23
SCREW , Replaced By: A2029902101
26
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
29
LOCK CONTROL VALVE
32
STEERING BOX COVER
32
STEERING BOX COVER
35
SEAL RING , Replaced By: A0199975147
35
SEAL RING
35
SEAL RING , Replaced By: A0119976746
38
LOCK
41
SEAL RING STEERING NUT BEARING 75X3 MM
44
THRUST WASHER
47
ROLLER BEARING
50
THREADED INSERT
53
WASHER
56
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
59
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
62
PISTON
62
PISTON
65
WASHER
68
ROLLER BEARING
71
ANGULAR CONTACT BEARING
74
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
77
SCREW FEED LINE AND RETURN LINE
80
SEAL RING
83
SEAL RING
86
SEAL RING VALVE
89
SCREW , Replaced By: N000912008202
89
SCREW. CAP BOLT COVER TO CASE M8X25
92
WASHER BRACKET TO CROSS MEMBER
95
SEAL RING
98
THRUST WASHER ,F012900
101
SCREW
104
THRUST WASHER3.00 MM
104
THRUST WASHER2.75 MM
104
THRUST WASHER2.95 MM
104
THRUST WASHER2.80 MM, Replaced By: A1074620262
104
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
104
THRUST WASHER2.85M
104
THRUST WASHER2.65 MM
104
THRUST WASHER3.10 MM
104
THRUST WASHER3.05 MM
104
THRUST WASHER2.70 MM
107
LOCK
110
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
113
LOCK RINGTO 000 553 37 01,000 553 39 01,
116
NUT , Replaced By: A0009904050
116
NUT
119
STEERING BOX COVER , Replaced By: A2014600315
119
STEERING BOX COVER , Replaced By: A2014600415
119
STEERING BOX COVER
122
SEAL RING
125
SEAL RING
125
SEAL RING
125
SEAL RING
128
LOCK
131
SEAL RING
134
SEAL RING VALVE
137
SCREW
140
WASHER BRACKET TO CROSS MEMBER
143
SCREW PLUG MID-POSITION BORE
146
SEAL RING PNEUMATIC VALVE
146
SEAL RING , Replaced By: N007603010110
149
BUSHING
152
PIN
155
SPRING , 1F 058034 2F 052097
155
SPRING , 1F 058035 2F 052098
158
COVER , 1F 058034 2F 052097
161
SEAL RING , 1F 058034 2F 052097
164
LOCK , 1F 058034 2F 052097
167
THRUST WASHER , 1F 058034 2F 052097
170
LOCK , 1F 058034 2F 052097
173
SCREW PLUG
185
FITTING HIGH PRESSURE
188
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
191
FITTING LOW PRESSURE
194
SEAL RINGTO 000 553 03 05,000 553 18 05,
197
REPAIR KIT
200
GASKET KIT
