190 D 2.5 TURBODIESEL
201.128 TO 09/88
82 ELECTRICAL SYSTEM

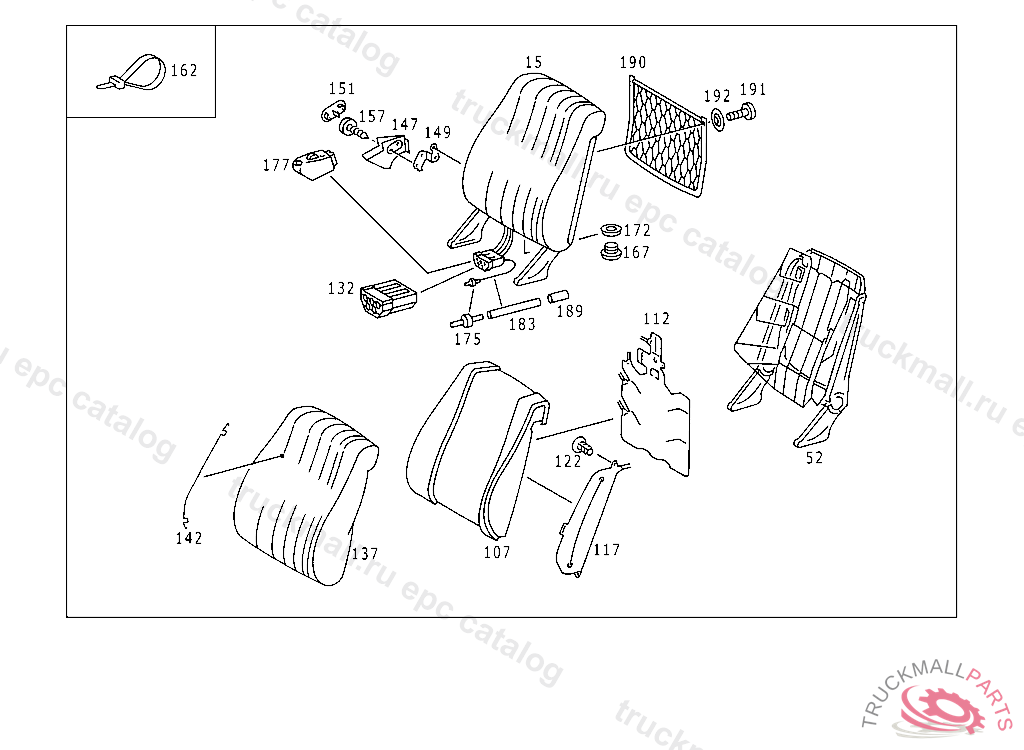

001 FRONT SEAT BACKREST,MB-TEX (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFICH IL.2

Mercedes A2019901636 - Болт

190 D 2.5 TURBODIESEL 201.128 TO 09/88

82 ELECTRICAL SYSTEM - 001 FRONT SEAT BACKREST,MB-TEX (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFICH IL.2

Поз.
Артикул
Описание
15
A2019100333
BACKREST
15
A2019100432
BACKREST RIGHT SEAT
15
A2019102542
BACKREST LEFT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019102466
BACKREST RIGHT SEAT
15
A2019102142
BACKREST LEFT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019101233
BACKREST LEFT SEAT
15
A2019100933
BACKREST LEFT SEAT
15
A2019106742
BACKREST LEFT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019102566
BACKREST LEFT SEAT
15
A2019101042
BACKREST , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019100332
BACKREST LEFT SEAT
15
A2019102132
BACKREST
15
A2019102832
BACKREST RIGHT SEAT
15
A2019100233
BACKREST RIGHT SEAT
15
A2019100666
BACKREST
15
A2019101433
BACKREST RIGHT SEAT
15
A2019102432
BACKREST RIGHT SEAT
15
A2019102866
BACKREST RIGHT SEAT
15
A2019102666
BACKREST RIGHT SEAT
15
A2019103166
BACKREST LEFT SEAT
15
A2019100633
BACKREST LEFT SEAT
15
A2019101633
BACKREST RIGHT SEAT
15
A2019100433
BACKREST LEFT SEAT
15
A2019101642
BACKREST , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019101632
BACKREST RIGHT SEAT
15
A2019102242
BACKREST RIGHT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019106342
BACKREST LEFT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019102042
BACKREST RIGHT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019101533
BACKREST LEFT SEAT
15
A2019102766
BACKREST LEFT SEAT
15
A2019108642
BACKREST LEFT SEAT
15
A2019100733
BACKREST RIGHT SEAT
15
A2019103266
BACKREST RIGHT SEAT
15
A2019108442
BACKREST LEFT SEAT
15
A2019101832
BACKREST RIGHT SEAT
15
A2019101732
BACKREST LEFT SEAT
15
A2019102532
BACKREST
15
A2019101842
BACKREST RIGHT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019101432
BACKREST RIGHT SEAT
15
A2019101532
BACKREST LEFT SEAT
15
A2019101333
BACKREST LEFT SEAT
15
A2019101442
BACKREST , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019101033
BACKREST RIGHT SEAT
15
A2019102442
BACKREST , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019100133
BACKREST LEFT SEAT
15
A2019102732
BACKREST LEFT SEAT
15
A2019102366
BACKREST LEFT SEAT
15
A2019104842
BACKREST
15
A2019101242
BACKREST RIGHT SEAT, NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
15
A2019100533
BACKREST RIGHT SEAT
15
A2019102332
BACKREST LEFT SEAT
15
A2019101332
BACKREST LEFT SEAT
52
A2019100034
BACKREST FRAME WITH SPRING CORE AND ELECTRIC MOTOR
52
A2019102934
BACKREST FRAME WITH SPRING CORE,LESS ELECTRIC MOTOR, A 286670 F 242231
52
A2019104134
BACKREST FRAME WITH SPRING CORE,LESS ELECTRIC MOTOR
107
A2019100216
PAD
112
A2019100375
SEAT ADAPTER (AIR CUSHION),CENTRAL
117
A2019100175
SEAT ADAPTER (AIR CUSHION),LATERAL
122
A2019970286
PLUG
132
A2018050053
COUPLING CONTROL VALVE
137
A2019100847
COVER , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
137
A2019100147
COVER , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
142
A2019140229
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
147
A2019100996
CONNECTION LEFT
147
A2019100196
CONNECTION , Replaced By: A2019100996, +001A2019141301, +001A2019140136, +002N910002004132, +002N914127003204
147
A2019100296
CONNECTION , Replaced By: A2019101096, +001A2019141401, +001A2019140236, +002N910002004132, +002N914127003204
147
A2019101096
CONNECTION RIGHT
149
A2019141401
SPRING CORE RIGHT
149
A2019141301
SPRING CORE LEFT
151
A2019140236
COVERING RIGHT
151
A2019140136
COVERING LEFT
157
N007981004244
SHEET METAL SCREW , Replaced By: N000000000453
157
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
157
N914127003204
SHEET METAL SCREW
162
A0019974390
LOOM TIE TO MOUNT PLASTIC PIPING
167
A6019880082
EYE
172
A1159880382
EYE
175
A0008050869
FILTER
177
A0008000378
VALVE
183
A0019978152
LINE. HOSE FROM VACUUM CONTROL VALVE TO PASSENGER COMPARTMENT 4 MM, ORDER BY THE METER
183
A0149978782
HOSE , Replaced By: A0019978152
189
A0079976182
HOSE *** 30 MM
190
A2018100049
LUGGAGE NET FRONT SEAT BACKREST,REAR
191
A0019848529
SCREW
191
A2019901636
SCREW , Replaced By: A0019848529
192
A3019900042
WASHER
