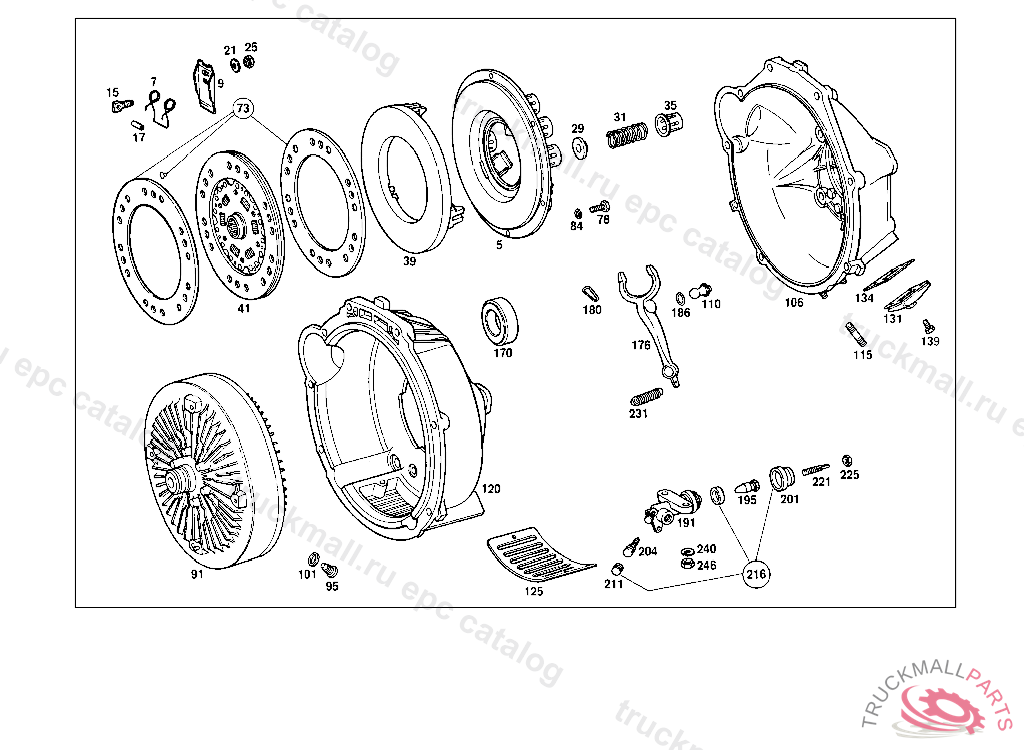

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
7
SPRING
9
RELEASE LEVER
15
PIN
17
CLAMPING SLEEVE
21
SPACER RING
25
NUTTO 001 250 03 04
25
NUT , Replaced By: A0002522772
29
WASHER
31
PRESSURE SPRING 50 MM LONG
35
SLEEVE
39
CLUTCH PRESSURE PLATE
41
CLUTCH DISC , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
73
REPAIR KIT CLUTCH LINING
78
SCREW PIPE CLAMP
78
SCREW , Replaced By: N304017008021
84
LOCK WASHER TAIL LAMP TO BRACKET
95
SCREW PLUG
101
SEAL RING
106
HOUSING
120
HOUSING HYDRAULIC CLUTCH
125
COVER PLATE
131
BOOT
134
SEAL HOLDER
139
SCREW , Replaced By: N304017006018
139
SCREW COVER PLATE TO COVER PLATE M 6 X 12
170
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
176
RELEASE YOKE
180
SPRING
186
SNAP RING
191
SLAVE CYLINDER
195
PIN
201
BOOT , 000,001,004,010,016 UP TO CHASSIS 179 190, 100,101,104,110,116 UP TO CHASSIS 330147
204
BLEEDER VALVE
211
PROTECTIVE CAP , Replaced By: A0004217187
211
PROTECTIVE CAP ,5 962906
216
REPAIR KIT , 000,001,004,010,016 FROM CHASSIS 179 191, 100,101,104,110,116 FROM CHASSIS 330148
221
ROD
225
NUT , Replaced By: N304035008001
225
NUT
231
SPRING
240
LOCK WASHER TAIL LAMP TO BRACKET
246
NUT
999
CLUTCH DISC , Replaced By: A0092509203
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SLEEVE
999
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
PRESSURE SPRING CLUTCH PRESSURE PLATE
999
CLUTCH LINING , Replaced By: A1085860025
999
THRUST WASHER
999
PRESSURE SPRING , Replaced By: A0002524120
999
RELEASE LEVER , ON SPECIAL REQUEST, H.D. CLUTCH
999
BOOT , 000,001,004,010,016 FROM CHASSIS 179 191, 100,101,104,110,116 FROM CHASSIS 330148 NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
REPAIR KIT , 000,001,004,010,016 UP TO CHASSIS 179 190, 100,101,104,110,116 UP TO CHASSIS 330147
999
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
999
CLUTCH DISC , Replaced By: A0102504903
999
CLUTCH DISC , Replaced By: A0182508903
999
CLUTCH DISC ASBESTOS-FREE LINING
999
REPAIR KIT ON CLUTCH END, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RELEASE BEARING
999
RELEASE BEARING , Replaced By: A1102500015
999
CLUTCH LINING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RELEASE BEARING
999
RELEASE BEARING , ON SPECIAL REQUEST, H.D. CLUTCH
999
HYDRAULIC CLUTCH , 000,001,004,010,016 FROM CHASSIS 130558, 100,101,104,110,116 FROM CHASSIS 225648
999
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
WASHER BRACKET TO REAR CROSS MEMBER
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
999
STUD
999
SCREW CONNECTOR TO EXHAUST MANIFOLD
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017012002
999
NUT STRAP TO SUPPORT,5 149419
999
CLAMPING SLEEVE
999
SEAL RINGTO 001 431 72 14
999
SCREW PUMP TO BRACKET
999
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
999
LOCK WASHER FITTING TO BRACKET
