Mercedes A1111403412 - ТРУБОПРОВОД

C 200 202.080

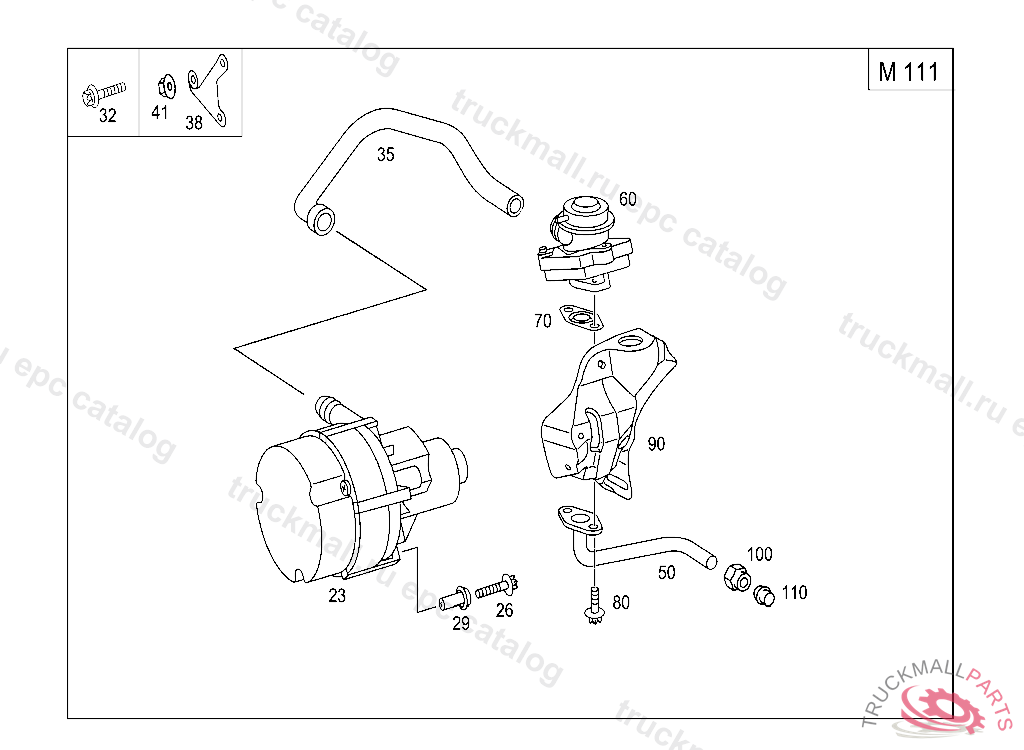

49 EXHAUST SYSTEM - 105 AIR PUMP

Поз.
Артикул
Описание
23
A0001404285
PUMP (AIR PUMP),ELECTRIC
26
N910143006004
HEXALOBULAR BOLT. SCREW CYLINDER HEAD COVER TO CYLINDER HEAD M 6X30
29
A0001420153
SPACER TUBE AIR PUMP TO BRACKET
32
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
35
A1111410883
HOSE BETWEEN AIR PUMP AND COMBINATION VALVE
38
A1111420240
BRACKET EXHAUST MANIFOLD
41
A0019902850
NUT BRACKET TO EXHAUST MANIFOLD
50
A1111403412
PIPE LINE. PIPELINE AIR INJECTION
60
A0021405860
VALVE AIR INJECTION
70
A1112380280
GASKET COMBINATION VALVE
80
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
90
A1111410840
BRACKET COMBINATION VALVE
100
N000000000093
NUT COMPRESSED AIR LINES M22X1.5
110
N003861015004
GLAND LINE CONNECTION
