Mercedes A2025050073 - Замок

C 200 202.080

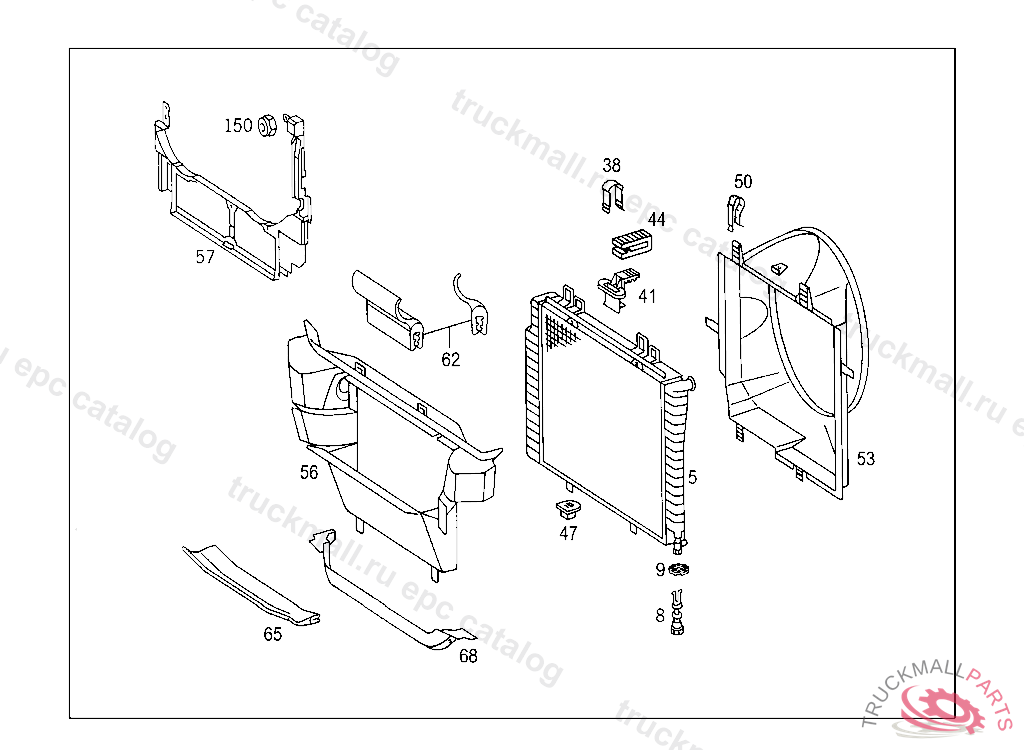

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A2025002203
RADIATOR
8
A0005000185
SCREW WATER DRAIN
9
A0005010176
WASHER WATER DRAIN
38
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
41
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
44
A2025041112
RUBBER MOUNTING , Replaced By: A2105040412, +002A2105040146
47
A1405040212
RUBBER MOUNTING RADIATOR TO SUPPORT
50
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
57
A2025050730
AIR BAFFLE , A 436536 F 483848 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 436535, F 483847 WITH CODE 807
150
N910104006000
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
