Mercedes A0099936601 - ПРУЖИНКА

C 220 CDI 4MATIC 204.084 DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG

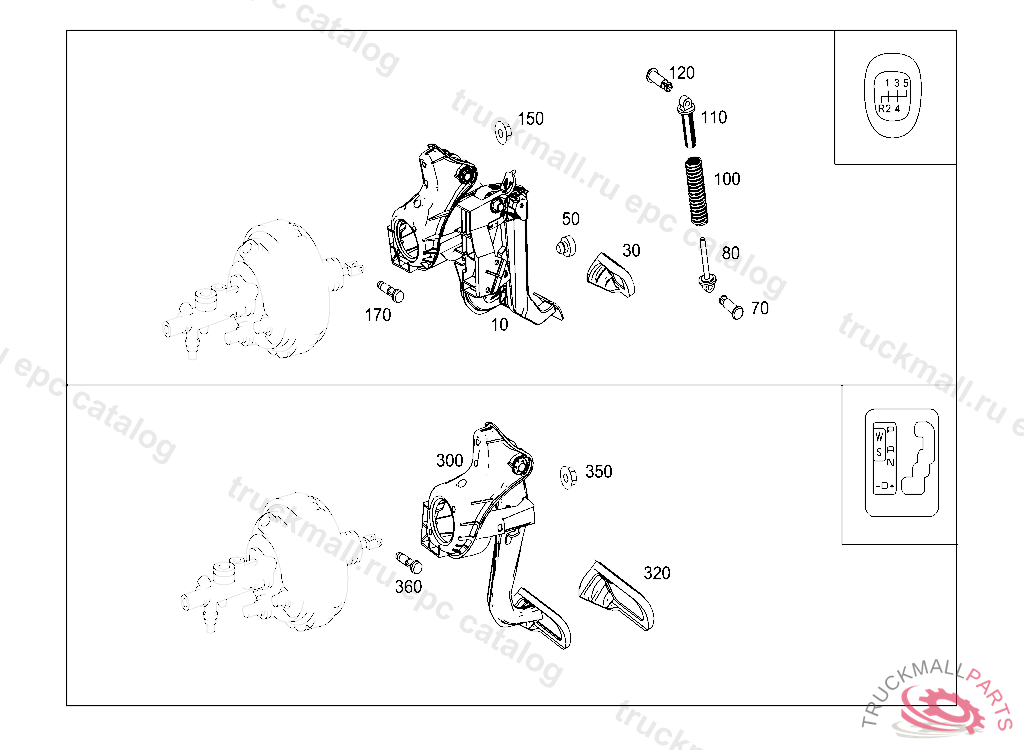

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING

Поз.
Артикул
Описание
10
A2042908701
PEDAL , F 01529620070531
10
A2042908301
PEDAL
10
A2042904601
PEDAL SYSTEM , F 01529620070531, Replaced By: A2042908701
10
A2042904701
PEDAL ASSEMBLY , Replaced By: A2042908301
30
A1702900282
PEDAL COVER CLUTCH PEDAL
30
A2012910282
PAD CLUTCH PEDAL
30
A2012920082
PAD BRAKE PEDAL
30
A1702900082
PAD BRAKE PEDAL
50
A0009984640
STOP BUFFER CLUTCH PEDAL
50
A1682910186
STOP CLUTCH PEDAL
70
A1682920074
PIN SPRING RETAINER
80
A2032910033
ROD
100
A0099936601
PRESSURE SPRING
110
A1692910091
SPRING RETAINER OVER-CENTER ACTING SPRING
120
A1682920074
PIN SPRING RETAINER
150
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
170
A2042920074
PIN BRAKE UNIT TO PEDAL ASSEMBLY
300
A2042902001
PEDAL ASSEMBLY , A 01762920070430 L 00000120070430 V 00000120070430 F 01529620070531 L 10000020081016
300
A2042902201
PEDAL ASSEMBLY , IMPORTANT: ALSO ORDER BRAKE PEDAL COVER
320
A1702900182
PAD BRAKE PEDAL
320
A1232910082
PAD BRAKE PEDAL
350
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
360
A2042920074
PIN BRAKE UNIT TO PEDAL ASSEMBLY
