Mercedes A2048320714 - Крепёж

C 220 CDI 4MATIC 204.084 DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG

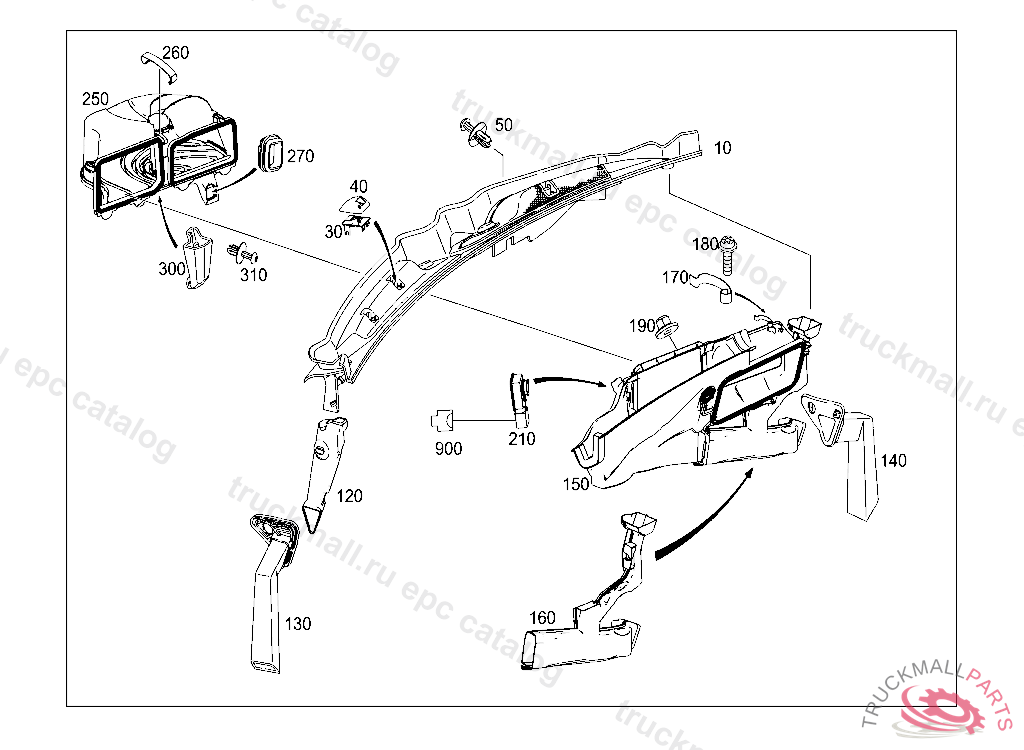

83 HEATING AND VENTILATION - 110 WATER BAFFLE WITH INTAKE SHELL

Поз.
Артикул
Описание
10
A2048303313
COVER AIR INTAKE
10
A2048301713
COVER
10
A2048303213
COVER AIR INTAKE
10
A2048301813
COVER
30
A2048320714
BRACKET FOR WINDSHIELD WASHER NOZZLE, A 21982720080815 L 01571520080831 V 00082920080831 F 24864420080831 L 10000020081016
40
A2048320603
COVER FOR WINDSHIELD WASHER NOZZLE, A 21982720080815 L 01571520080831 V 00082920080831 F 24864420080831 L 10000020081016
50
A1239900592
RIVET ON CAB FLOOR UNDER STEP
120
A2048322825
FITTING TROUGH ON THE RIGHT
120
A2048322725
FITTING WATER DRAIN,LEFT
130
A2048322325
FITTING WATER DRAIN,LEFT
140
A2048322425
FITTING TROUGH ON THE RIGHT
150
A2048301044
AIR DUCT
150
A2048301244
AIR DUCT
160
A2048322025
FITTING
160
A2048322225
FITTING
170
A0019917470
CLIP
180
A0019846229
BOLT CONTACT PLATE FASTENER M5X10
190
N000000004011
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
210
A2045420218
SENSOR GASEOUS POLLUTANT SENSOR
250
A2048303303
HOUSING AIR INTAKE
250
A2048303403
HOUSING AIR INTAKE
260
A0019917570
CLIP
270
A1408320084
VALVE WATER DRAIN, A 183683
300
A2048320325
FITTING
300
A2048320425
FITTING
310
A1239900592
RIVET ON CAB FLOOR UNDER STEP
900
A2205400681
PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
