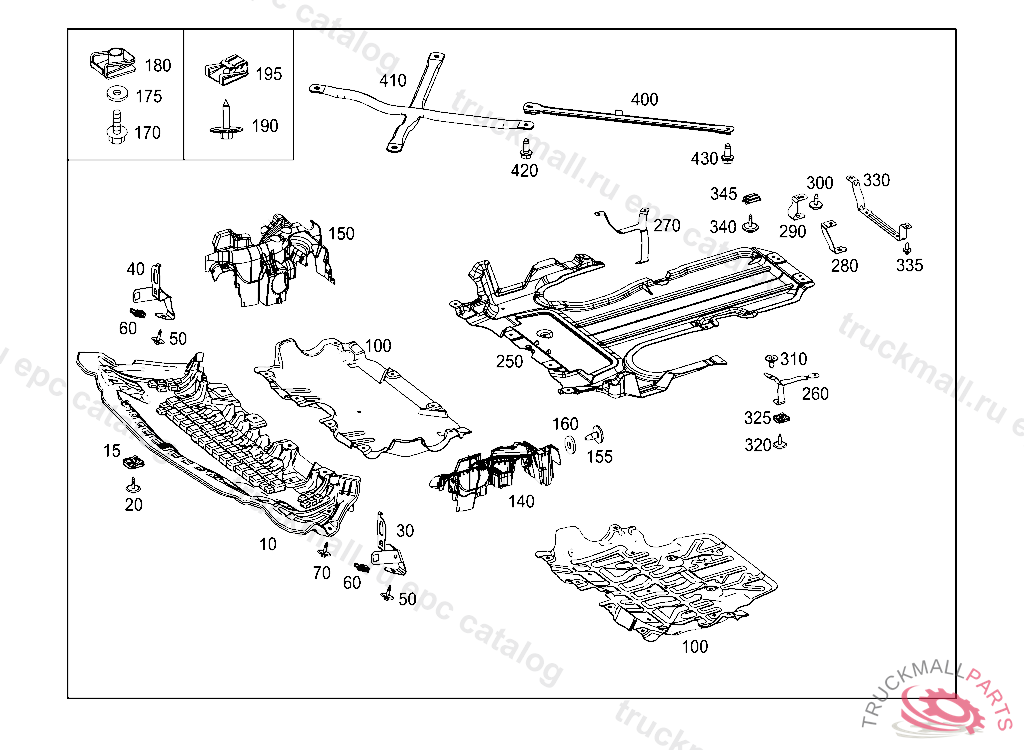

Поз.
Артикул
Описание
10
COVER F ENGINE COMP. BM FRONT
15
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
20
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
30
BRACKET FRONT LEFT
40
BRACKET FRONT RIGHT
50
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
60
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
70
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
100
COVER F ENGINE COMP. BM CENTRAL
100
ENCAPSULATION CENTRAL
100
UNDERBODY PROTECTION CENTRAL
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
180
SPRING-THREAD NUT PROTECTIVE PLATE
190
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
195
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
250
COVER F ENGINE COMP. BM REAR
260
BRACKET REAR LEFT
270
BRACKET REAR RIGHT
280
BRACKET REAR LEFT
290
BRACKET REAR RIGHT
300
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
310
HEXAGON NUT W COLLAR BRACKET MOUNTING
340
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
345
CLIP-TYPE NUT REAR NOISE ENCAPSULATION TO SIDE MEMBER
400
STRUT FRONT LEFT, RIGHT
430
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
