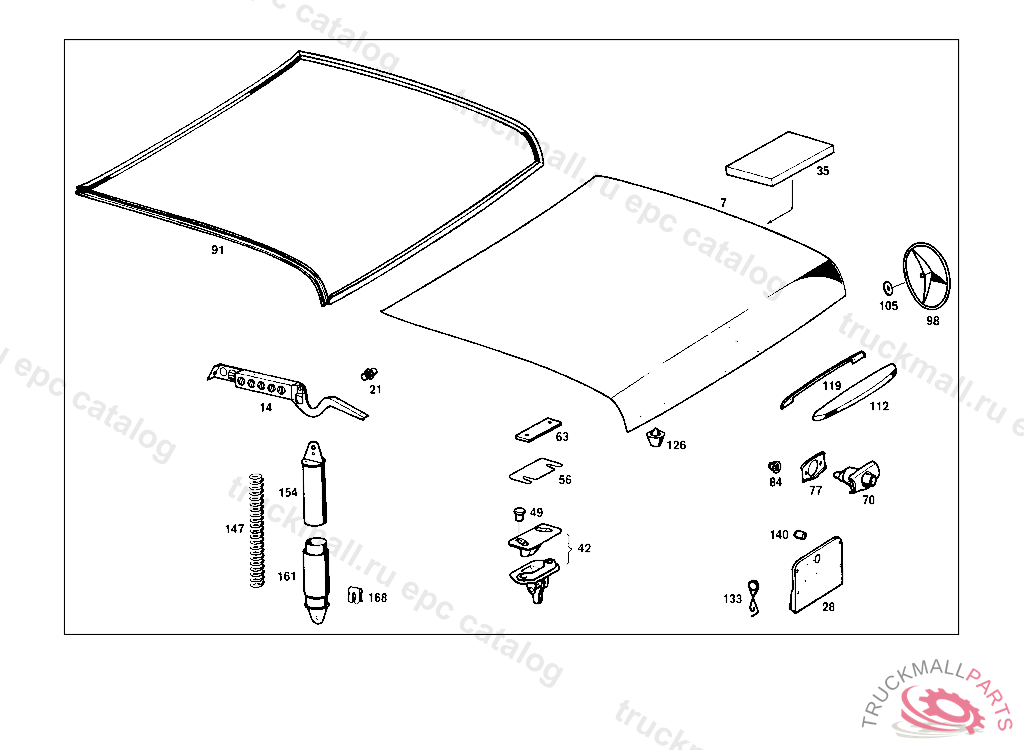

Поз.
Артикул
Описание
21
CLINCH-BOLT , FROM CHASSIS 042478
28
FLAP FILLER NECK
35
INTERMEDIATE LAYER11 MM, FROM CHASSIS: 010 002636 015 000135 048481
42
LOCK
49
RUBBER BUFFER
49
RUBBER BUFFER , Replaced By: A1239870040
56
BASE PLATE
63
PLATE
70
FASTENER WITH HANDLE
77
PAD LOCK TO FLAP
84
NUT
98
MERCEDES STAR
105
RUBBER RING
112
HANDLE
119
PAD HANDLE TO REAR LID
126
RUBBER BUFFER
133
SPRING LEFT
140
RUBBER BUFFER
147
SPRING HINGE TO FLAP
154
SPRING SLEEVE SPRING TO HINGE,TOP, FROM CHASSIS 042478
161
SPRING SLEEVE SPRING TO HINGE,BOTTOM, FROM CHASSIS 042478
168
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
999
CLEANER
999
SPRING RIGHT
999
BRACE , Replaced By: A1157580897
999
FLAP , 012 UP TO CHASSIS 041934, 014 UP TO CHASSIS 033457, 015 UP TO CHASSIS 002384, Replaced By: A1117505606
999
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
999
LOCK WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM), 003225
999
REAR LID SHELL
999
SEAL REAR LID
999
HINGE LEFT, FROM CHASSIS 042478
999
HINGE RIGHT
999
PLATE , Replaced By: A1167500011
999
RUBBER BUFFER , Replaced By: A1119871740
999
INTERMEDIATE LAYER , Replaced By: A1237580397
999
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006034
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N007985005157
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SCREW , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
SCREW PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
NUT
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
