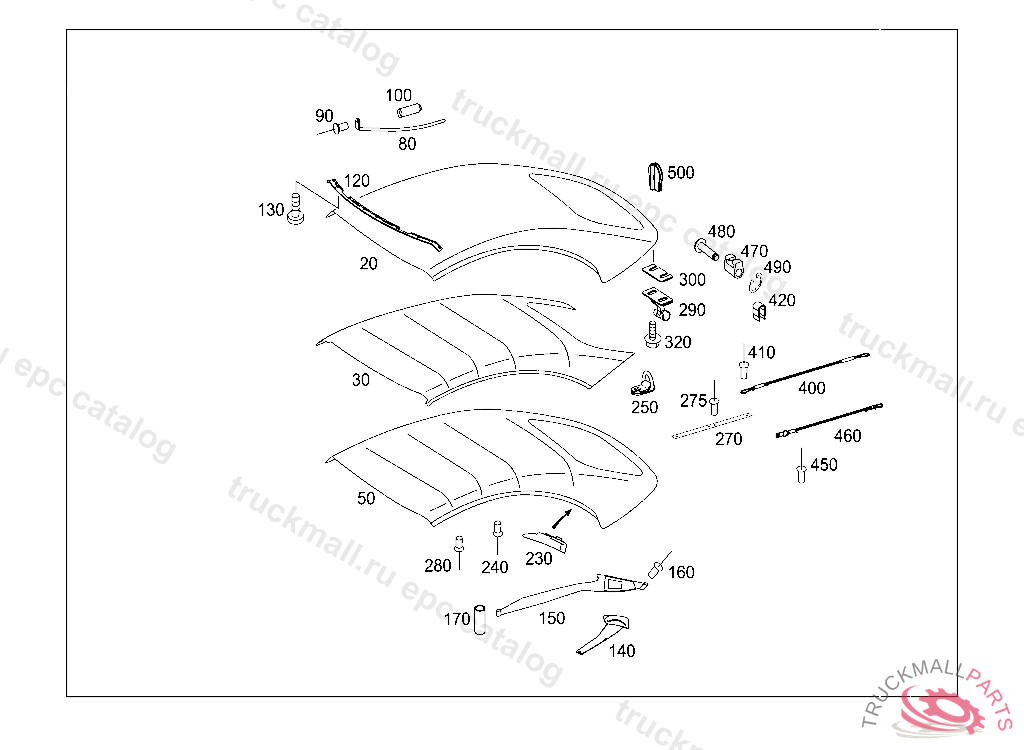

Поз.
Артикул
Описание
20
COVER
30
INTERMEDIATE LAYER BETWEEN OUTSIDE COVER & HEADLINER
50
COVER INSIDE ROOF LINING
50
COVER INSIDE ROOF LINING
80
CLAMP RIGHT
80
CLAMP LEFT
90
RIVET
100
COVER FOR PIN
120
RAIL SOFT TOP CANVAS TO HEADER BOW, F 24288020070902
130
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
140
GUIDE RAIL BELT GUIDE RIGHT
140
GUIDE RAIL BELT GUIDE LEFT
150
RUBBERDAM RIGHT
150
RUBBERDAM LEFT
160
BLIND RIVET LEFT AND RIGHT 13X9.5
170
BRACKET AT ENTRANCE GRIP RAIL
230
BEARING TENSION CABLE TO RIGHT COLUMN
230
BEARING TENSION CABLE TO LEFT COLUMN
240
RIVET LEFT CLIP FASTENING
250
GUIDE PICK-UP STRIP, T 09654420080124 F 24948620080114
270
PICK-UP STRIP
275
BLIND RIVET LEFT AND RIGHT 13X9.5
280
RIVET
290
PIN AT CLAMP
300
PAD AT CLAMP
320
HEXALOBULAR BOLT WINDOW REGULATOR AT BRACKET AND DOOR M6X16
400
PULL MAIN GUIDE
410
BLIND RIVET LEFT AND RIGHT 13X9.5
420
CLIP AT RETAINING RAIL
450
RIVET LEFT CLIP FASTENING
460
TENSIONING ROPE REAR BOW
470
SLIDING BLOCK GUIDE RAIL
480
COLLAR PIN SLIDE
490
LOCK PLATE
500
SOFT TOP LOCK CLIP
