Mercedes N910001004105 - Клипса

E 350 CGI 207.457

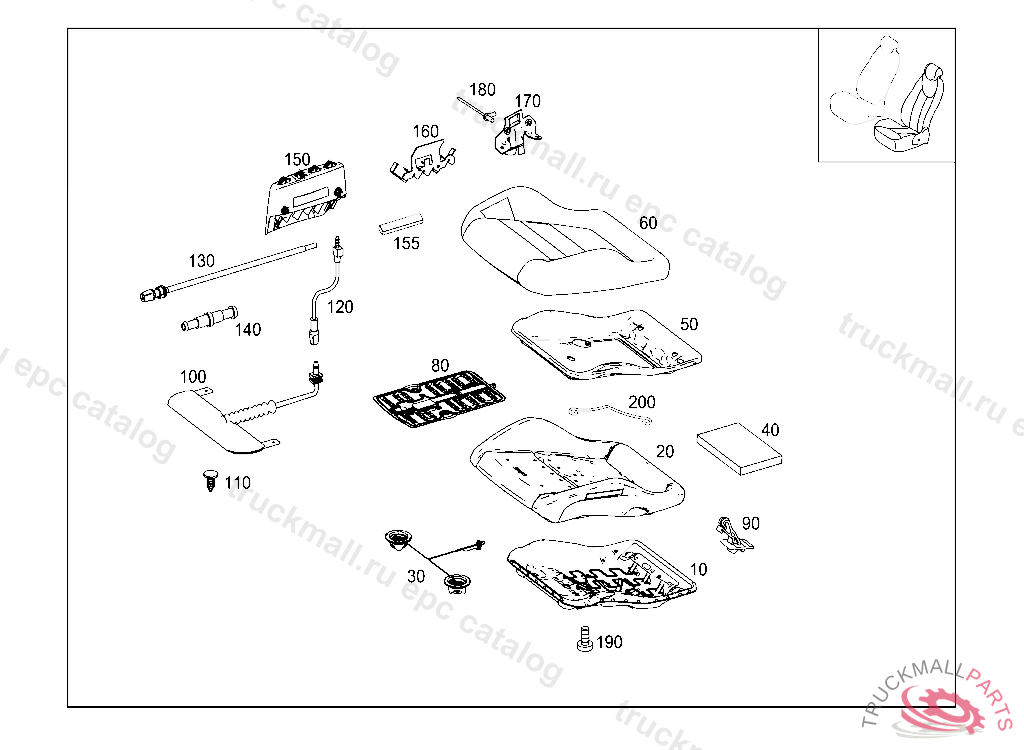

91 DRIVER'S SEAT - 065 LEFT SEAT IL. 1

Поз.
Артикул
Описание
10
A2079100022
CUSHION FRAME
20
A2079100550
REST
20
A2079100450
REST
20
A2079100750
REST
20
A2079100950
REST
30
A2079104503
COVER FRONT SEAT CUSHION
30
A2128202242
AXIAL BLOWER
40
A2039140097
PAD TO CONTROL UNIT
50
A2079100000
COVER BETWEEN PADDING AND SEAT COVER
60
A2079102904
COVER FRONT SEAT CUSHION
60
A2079102301
COVER
60
A2079104203
COVER FRONT SEAT CUSHION FABRIC
60
A2079108703
COVER FRONT SEAT CUSHION
60
A2079105546
COVER
60
A2079105346
COVER FRONT SEAT CUSHION
60
A2079102701
COVER
60
A2079104046
COVER FRONT SEAT CUSHION
60
A2079101100
COVER
60
A2079105146
COVER
60
A2079102046
COVER LEATHER
60
A2079100705
COVER FRONT SEAT CUSHION
60
A2079102346
COVER LEATHER
60
A2079107903
COVER FRONT SEAT CUSHION
60
A2079100504
COVER FRONT SEAT CUSHION
60
A2079104303
COVER FRONT SEAT CUSHION
60
A2079106346
COVER FRONT SEAT CUSHION
60
A2079103106
COVER FRONT SEAT CUSHION
60
A2079102906
COVER FRONT SEAT CUSHION LEATHER
60
A2079105946
COVER FRONT SEAT CUSHION , 9D88 101A/121AQFT207A2017 BLACK
60
A2079102601
COVER
60
A2079104103
COVER FRONT SEAT CUSHION FABRIC
60
A2079100205
COVER FRONT SEAT CUSHION LEATHER
60
A2079102546
COVER
60
A2079102146
COVER
60
A2079102101
COVER LEATHER, DESIGNO, UNI-COLOR
60
A2079102005
COVER FRONT SEAT CUSHION LEATHER
60
A2049106210
COVER FRONT SEAT CUSHION LEATHER
60
A2079104503
COVER FRONT SEAT CUSHION
60
A2079100904
COVER FRONT SEAT CUSHION
60
A2079102501
COVER
60
A2079101946
COVER FRONT SEAT CUSHION LEATHER
60
A2049106609
COVER FRONT SEAT CUSHION
60
A2079100505
COVER FRONT SEAT CUSHION
60
A2079105846
COVER FRONT SEAT CUSHION FABRIC
60
A2079102201
COVER
60
A2079102746
COVER
60
A2079102401
COVER LEATHER, DESIGNO, TWO-COLOR
60
A2079102901
COVER
60
A2049106209
COVER FRONT SEAT CUSHION LEATHER
60
A2049106509
COVER FRONT SEAT CUSHION
60
A2079100900
COVER
60
A2079101746
COVER , 9D88 101A/121AQFT207A2004 BLACK, Replaced By: A2079105946
60
A2079101546
COVER , 9D88 101A/121AQFT207A2004 BLACK, Replaced By: A2079105946
60
A2079101146
COVER , Replaced By: A2079106346
60
A2079100946
COVER , Replaced By: A2079106346
60
A2079100846
COVER , Replaced By: A2079105846
60
A2079100746
COVER , Replaced By: A2079105846
60
A2079108903
COVER FRONT SEAT CUSHION
80
A2078700610
SENSOR MAT AUTOMATIC CHILD SEAT RECOGNITION
80
A2128700010
SWITCH SEAT OCCUPATION RECOGNITION
80
A2078700110
SWITCH AUTOMATIC CHILD SEAT RECOGNITION
80
A2078700079
SENSOR MAT SEAT OCCUPATION RECOGNITION
90
A2079140300
BRACKET
100
A0009102075
SEAT ADAPTER
110
A0029973386
STOP PLUG BRAKE CABLE
120
A0008002015
HOSE LINE BETWEEN BASE AND VALVE
130
A0069973989
RS PLUG CONNECTION REPAIR SOLUTION LONG SOCKET B8
130
A0069973589
RS PLUG CONNECTION LINE TO VALVE BLOCK
140
A0069972389
PLUG CONNECTION
150
A0008007978
CONTROL VALVE , 9051QFT204A2450 BLACK
155
A0009140700
BASE
160
A2039100914
BRACKET REGULATING VALVE, A 79395120050314 F 69317320050228 R 19055320050318
170
A2079120314
BRACKET LEFT
180
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
190
N000000004180
HEXALOBULAR BOLT ON BOW,LEFT M6X12, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
200
A2019240729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
200
A1239240729
BRACKET , Replaced By: A1269241929
