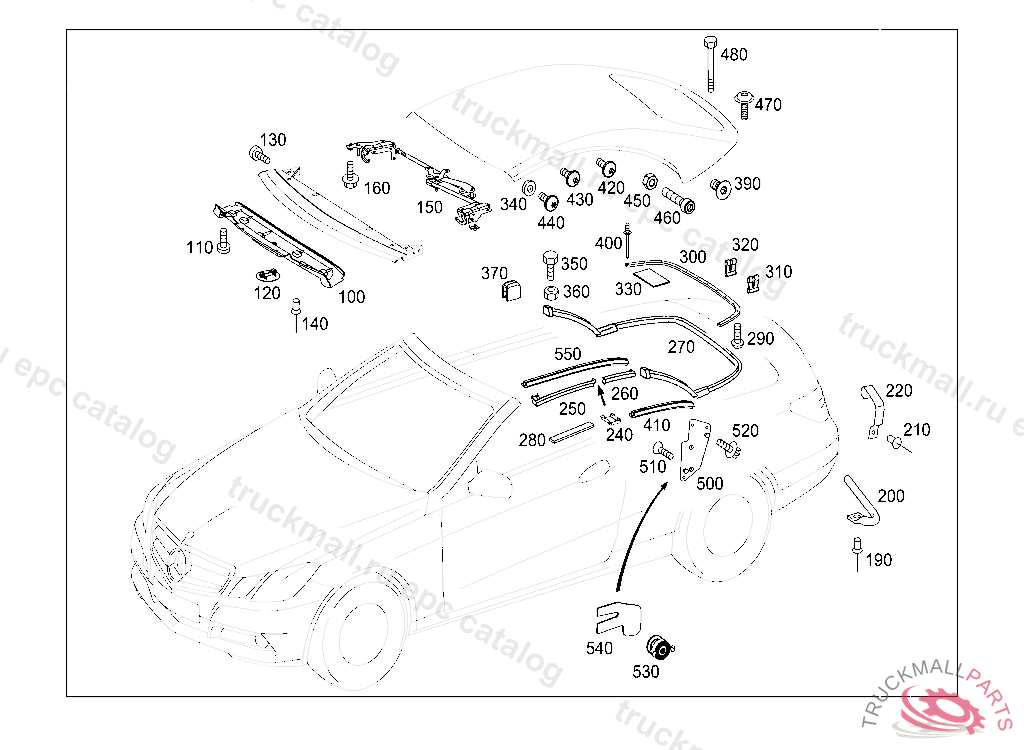

Поз.
Артикул
Описание
100
TRIM HEADER BOW ROOF RAIL
110
BOLT CONTROL UNIT TO BRACKET
120
CAP TO COVERING
130
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
140
BLIND RIVET LEFT AND RIGHT 13X9.5
150
SOFT TOP LOCK TO SOFT TOP FRONT, OBSERVE WORK INSTRUCTIONS IN WIS WIS-NET#AR77.33-P-1006QA#
160
SCREW , Replaced By: A1409842829
190
BLIND RIVET LEFT AND RIGHT 13X9.5
200
CLAMP LEFT
200
CLAMP RIGHT
210
BLIND RIVET RETAINING BRACKET TO BRACKET 19.5X14
220
CLAMP RIGHT
220
CLAMP LEFT
240
END CAP RIGHT REAR ROOF RAIL
240
END CAP REAR LEFT ROOF RAIL
250
SEAL FOR CONVERTIBLE TOP FRONT LEFT, IMPORTANT: ALSO ORDER 1X A 207 989 00 98
250
SEAL FOR CONVERTIBLE TOP FRONT RIGHT, IMPORTANT: ALSO ORDER 1X A 207 989 00 98
260
SEAL FOR CONVERTIBLE TOP CENTRAL LEFT, IMPORTANT: ALSO ORDER 1X A 207 989 00 98
260
SEAL FOR CONVERTIBLE TOP CENTRAL RIGHT, IMPORTANT: ALSO ORDER 1X A 207 989 00 98
270
SEAL REAR
280
SEAL MOSS TYPE RUBBER
290
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
300
RAIL
310
CLIP LEVER TO BRACKET
320
LOCK PULL TO FASTENER
330
PAD REAR BOW
340
WASHER COMPRESSED AIR LINE TO BRACKET
350
SCREW BRACKET TO SIDE MEMBER
360
NUT
370
STOP ROOF REAR RAIL
390
SCREW LOCK COVERING
390
SCREW PIVOT TO FOLDING TOP RAIL
400
RIVET
410
SOFT TOP FRAME RIGHT REAR ROOF RAIL
410
RETAINING RAIL REAR LEFT ROOF RAIL
420
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
430
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
440
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
450
CAP BOLT SOFT TOP FRAME AT CENTER AT FRAME M6X30
450
SCREW CONTROL SHAFT TO ENGINE
460
NUT SPRING-LOADED PUSH ROD
470
HEXALOBULAR BOLT MOUNTING PARTS M8X16
480
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
500
PLATE LEFT
500
PLATE RIGHT
510
SCREW LOCK COVERING
520
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
530
TOLERANCE RING FOLDING TOP SUPPORT TO BODY
540
INTERMEDIATE LAYER FOLDING TOP SUPPORT TO BODY
550
GASKET CORD SEAL AT LEFT AND RIGHT
