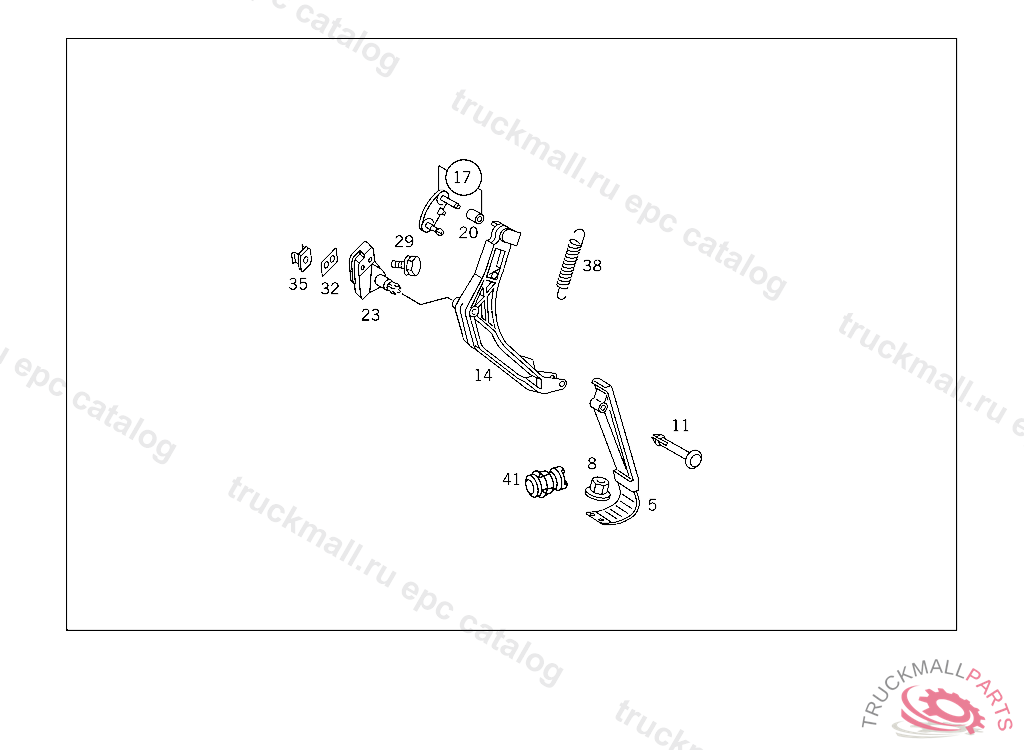

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
NUT ACCELERATOR PEDAL TO FIRE WALL
11
PIN ACCELERATOR PEDAL TO LEVER
14
LEVER ACCELERATOR PEDAL,F 505054
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
17
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
20
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
23
BEARING ACCELERATOR PEDAL BEARING,A 346276
29
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
29
SCREW , WITH DIESEL ENGINE
29
COMBINATION BOLT , Replaced By: N304017006019, +001N000137006204
32
GASKET BEARING TO FIRE WALL
35
NUT RETAINER LICENSE PLATE TO BRACKET
38
SPRING ACCELERATOR PEDAL
38
SPRING ACCELERATOR PEDAL
