Mercedes A2025010220 - Клипса

CLK 230 KOMPRESSOR 208.348

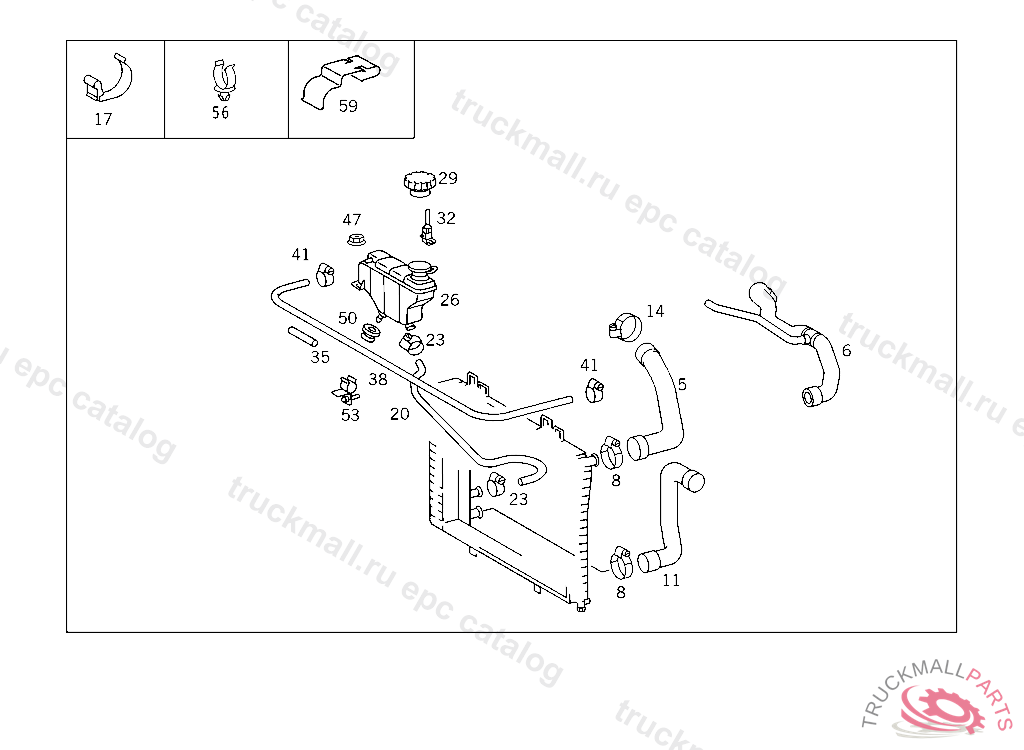

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES

Поз.
Артикул
Описание
5
A2025016382
HOSE TOP
8
A0069970590
LOOM TIE
8
N916026036000
CLAMP , Replaced By: A0069970590
11
A2025017682
HOSE BOTTOM
14
A0069970690
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
14
A0069974390
LOOM TIE. CLAMP HOSE FASTENING
20
A2025017382
HOSE
23
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
23
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
26
A2025000649
TANK EXPANSION TANK
32
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
35
A0229972682
HOSE OVERFLOW 530 MM, ORDER BY THE METER
38
N000000000734
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
41
A0059970290
HOSE CLAMP8-16
47
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
50
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
53
A2025010120
BRACKET BREATHER LINE
59
A2025010220
BRACKET BREATHER LINE
