Mercedes N000931006102 - Болт

CLK 200 KOMPRESSOR 208.444

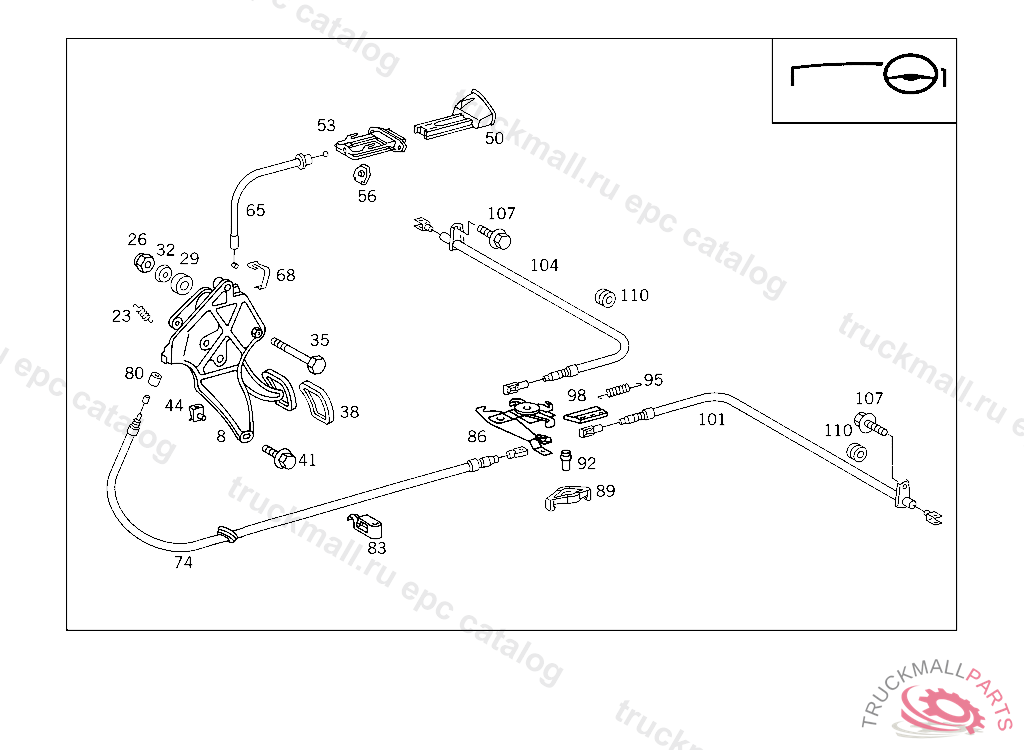

42 BRAKES - 145 FOOT OPERATED PARKING BRAKE IL. 2

Поз.
Артикул
Описание
8
A2024200184
PARKING BRAKE
23
A1249932810
SPRING
26
N913002006009
NUT OIL TANK TO BRACKET
29
A1244270386
DAMPING RING
32
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
35
N000931006102
SCREWM6 X 38
38
A1244270382
PAD PEDAL
41
N914130008104
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
41
N000000001418
HEXALOBULAR BOLT TORSION BAR TO CARRIER M8X16
44
A0019905891
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
50
A2084270120
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
53
A2084270012
GUIDE UNLOCKING FOOT OPERATED PARKING BRAKE
56
A1409940445
LOCK
80
A0009870232
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
83
A0009955720
CLAMP FRONT BRAKE CABLE TO TUNNEL
83
A0009954920
CLAMP ,A 181986
86
A2024200338
ADJUSTER
89
A2029880578
CLIP
92
A2024270474
PIN
95
A2029930710
SPRING
98
A2024270212
GUIDE
101
A2024202785
BRAKE CABLE REAR LEFT
104
A2024202885
BRAKE CABLE REAR RIGHT
107
N914125008511
SCREW BRAKE CABLE TO REAR AXLE
110
A1159970681
GROMMET BRAKE CABLE TO REAR AXLE
