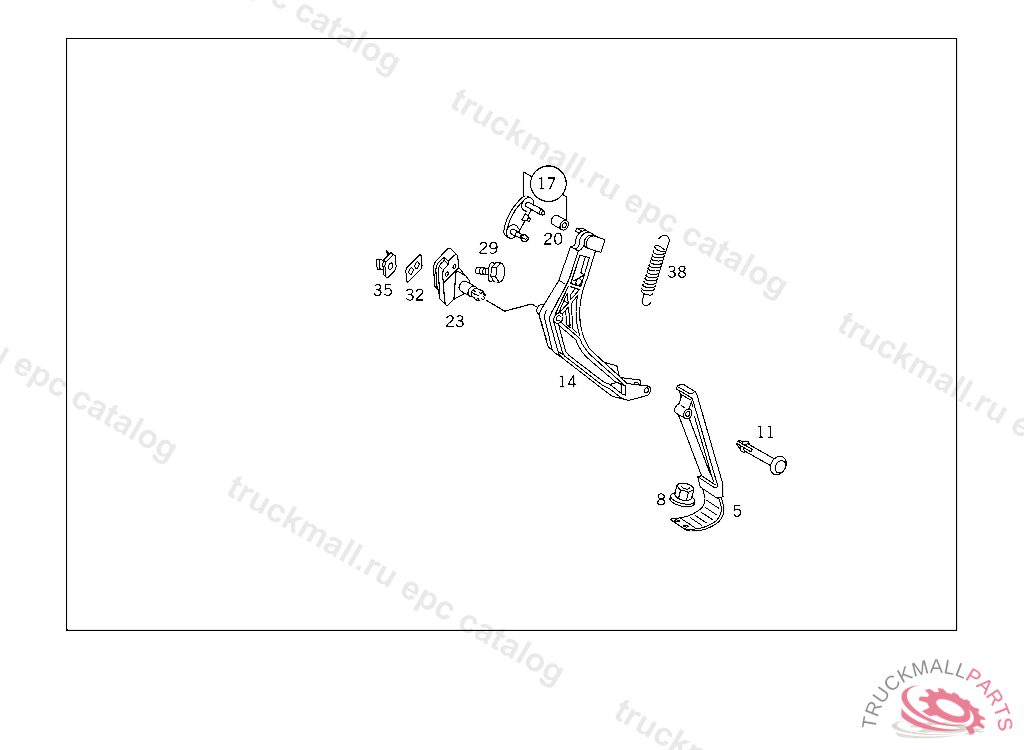

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
NUT ACCELERATOR PEDAL TO FIRE WALL
11
PIN ACCELERATOR PEDAL TO LEVER
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
17
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
20
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
23
BEARING ACCELERATOR PEDAL BEARING,A 346276
29
COMBINATION BOLT BEARING TO FIRE WALL,B 838715,J 003393
32
GASKET BEARING TO FIRE WALL
35
NUT RETAINER LICENSE PLATE TO BRACKET
38
SPRING ACCELERATOR PEDAL
