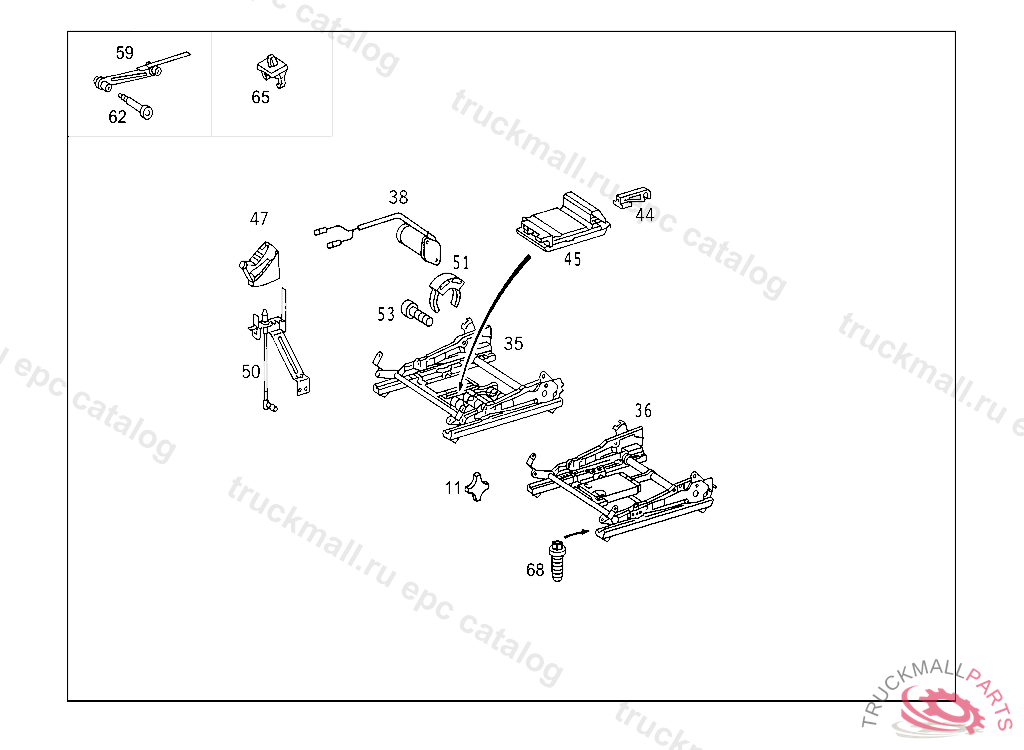

Поз.
Артикул
Описание
11
HANDWHEEL RAKE ADJUSTMENT
35
SEAT ADJUSTER ELECTRIC,LEFT
35
SEAT ADJUSTER ELECTRIC,RIGHT
36
SEAT ADJUSTER LESS MOTORS,LEFT
36
SEAT ADJUSTER LESS MOTORS,RIGHT
38
ELECTRIC MOTOR LEFT FORE AND AFT ADJUSTMENT
38
ELECTRIC MOTOR HEIGHT ADJUSTMENT,FRONT
44
BRACKETSTEUERGERAET
45
CONTROL UNIT RIGHT
45
CONTROL UNIT LEFT
47
VALVE , F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 619720 WITH CODE 808
50
BRACKET LEFT
50
BRACKET RIGHT
51
CLIP TOLERANCE COMPENSATING DEVICE BETWEEN SEAT ADJUSTMENT MECHANISM AND BACKREST
53
SCREW AT CUSHION FRAME
59
SPRING LEFT SEAT,LEFT, RIGHT SEAT,LEFT
59
SPRING LEFT SEAT,RIGHT, RIGHT SEAT,RIGHT
62
SUPPORT SPRING TO FRAME
65
GUIDE AT CUSHION FRAME
68
BOLT FRONT SEAT TO CONSOLE M10X28
