Mercedes N007976004203 - ШУРУП

E 220 CDI 211.008

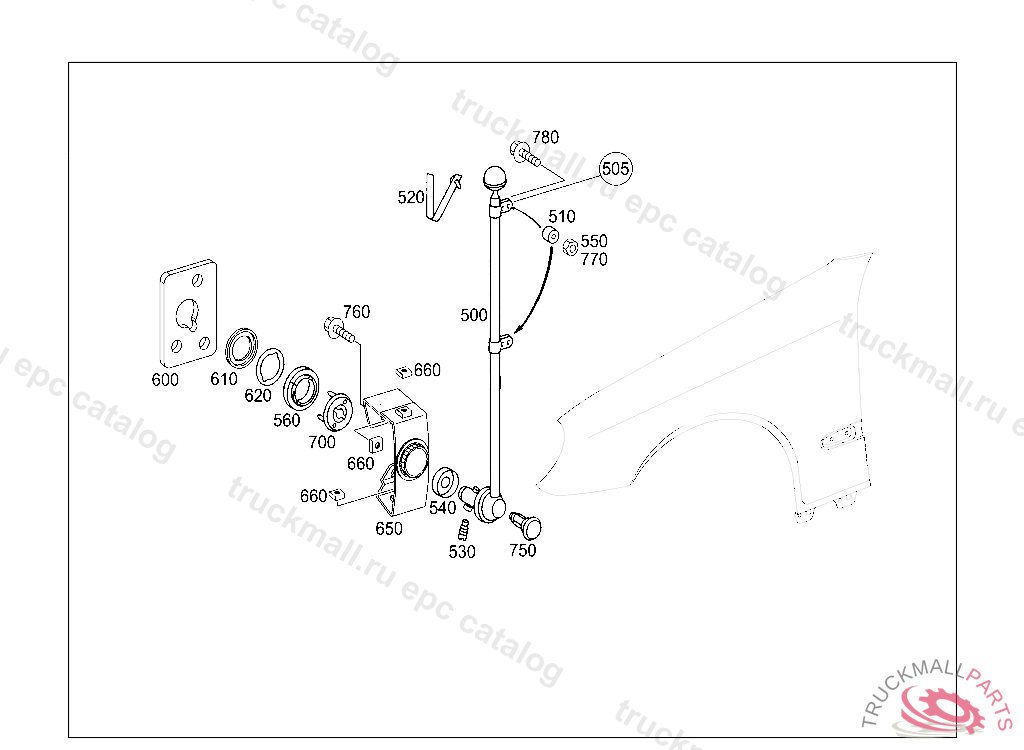

88 ATTACHMENT PARTS - 015 FRONT FENDER IL. 2

Поз.
Артикул
Описание
500
A2118100084
ROD LEFT
505
A2408100081
FIXTURE FLAGPOLE
510
A4609927101
BUSHING BRACKET TO ROOF RAIL
520
A1248180067
SPRING
530
A1088180073
SCREW
540
N000000004324
DISK SPRING ROD TO BRACKET LEFT
540
N002093028200
DISC SPRING
550
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
560
A1088180297
PAD
600
A2208180011
PLATE LEFT
610
A2118180197
PAD INNER LEFT FENDER
620
A2208180097
PAD OUTER LEFT FENDER
650
A2118100614
BRACKET PENNANT, RIGHT
650
A2118100514
BRACKET PENNANT, LEFT LINKS
660
N000000000355
NUT BRACKET MOUNTING M6
700
A1088101081
FIXTURE RIGHT
700
A1088100981
FIXTURE LEFT
750
A1089880080
FASTENER BUTTON
760
A1639900136
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
760
N007976004203
SHEET METAL SCREW
770
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
780
A1639900136
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
