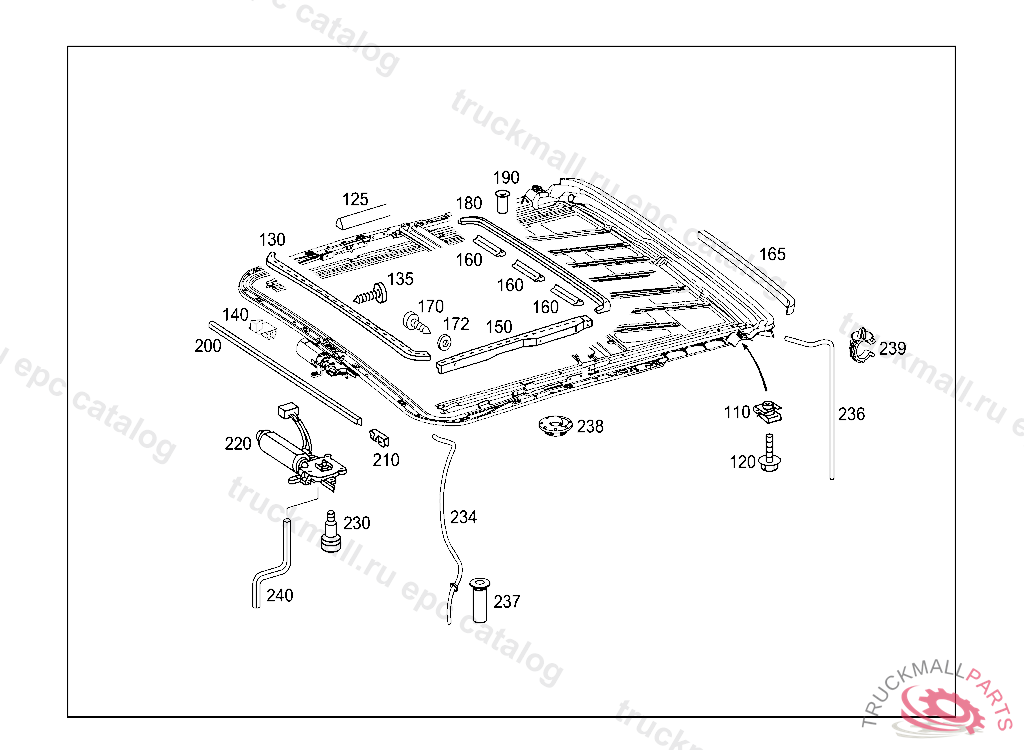

Поз.
Артикул
Описание
110
LOCK NUT. SPRING NUT MOUNTING PARTS
120
SCREW-AND-WASHER ASSEMBLY. COMBINATION BOLT , Replaced By: N304017006019
120
SCREW COVER PLATE TO COVER PLATE M 6 X 12
125
SEALING CORD , ORDER BY THE METER
130
RAIL FRONT
135
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
140
SPACER RAIL
140
SPACER FRONT RAIL
150
RAIL RIGHT
150
RAIL LEFT
160
PAD
165
PAD ON FRAME,LEFT 25 MM
165
PAD ON FRAME,RIGHT 25 MM
170
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
172
WASHER BRACKET TO BATTERY CASE BRACKET
180
RAIL REAR
190
BLIND RIVET ATTACHMENT,RAIL
200
RAIL BOTTOM FRAME
210
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
220
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
230
SCREW MOTOR TO FRAME
234
HOSE WATER DRAIN IN A-PILLAR
236
HOSE
236
HOSE , Replaced By: A2116390594
237
INSULATION TO HOSE
238
EXPANSION PLUG SIDE MEMBER,TOP 45 MM
239
LINE HOLDER WATER DRAIN
240
KEY EMERGENCY CONTROL
