Главная
›
Mercedes
›
CAR
›
CL 55 AMG KOMPRESSOR
›
215.374
›
27 MERCEDES-BENZ AUTOMATIC TRANSMISSION
›

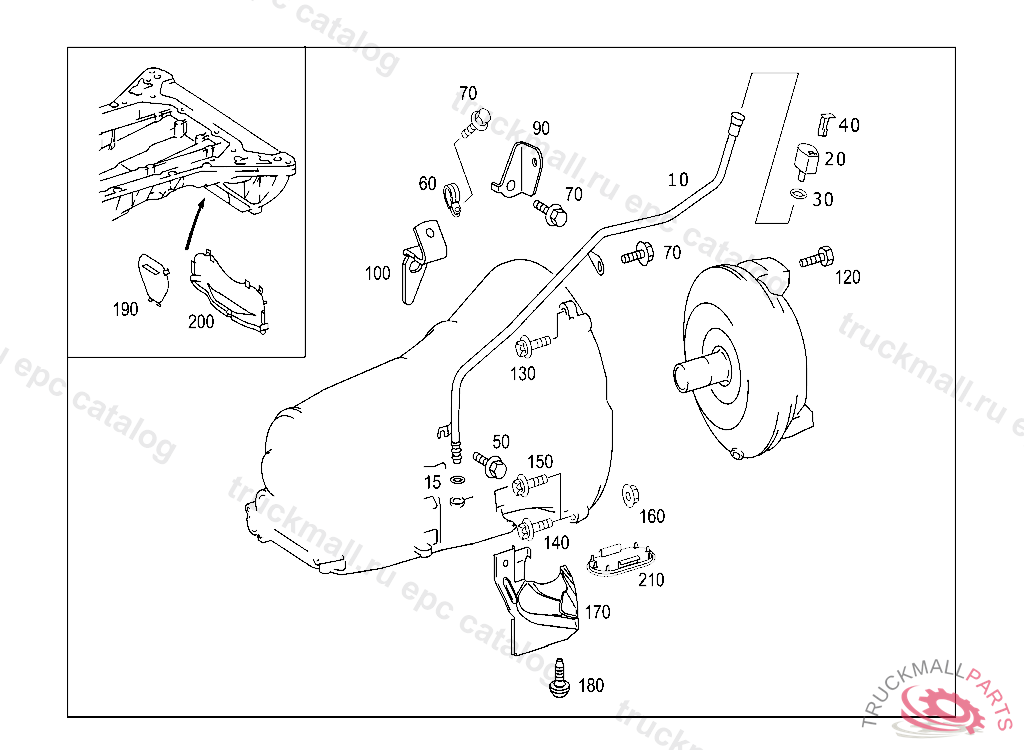

125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE
Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП
CL 55 AMG KOMPRESSOR 215.374
27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE
Поз.
Артикул
Описание
10
A2202700284
OIL FILLER PIPE TRANSMISSION
15
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
20
A1402700091
COVER OIL FILLER PIPE
30
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
A1409910055
DOWEL PIN OIL FILLER PIPE
50
N910106006004
HEXAGON HEAD BOLT
60
A0009959342
MOUNTING CLAMP OIL FILLER TO ENGINE
70
N910106006004
HEXAGON HEAD BOLT
90
A1292710840
BRACKET BRACKET TO ENGINE
120
A1249902201
SCREWM 8X18
130
N910143010000
SCREW PLATE TO FRAME M 10X45
140
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
150
N910143010000
SCREW PLATE TO FRAME M 10X45
160
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
170
A2202710688
COVER AT TRANSMISSION CASE, A 00008819990924
180
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
190
A1120140133
COVER MOUNTING HOLE IN OIL PAN
210
A0009983121
CAP CAP ASSEMBLY OPENING IN OIL PAN
