Поз.
Артикул
Описание

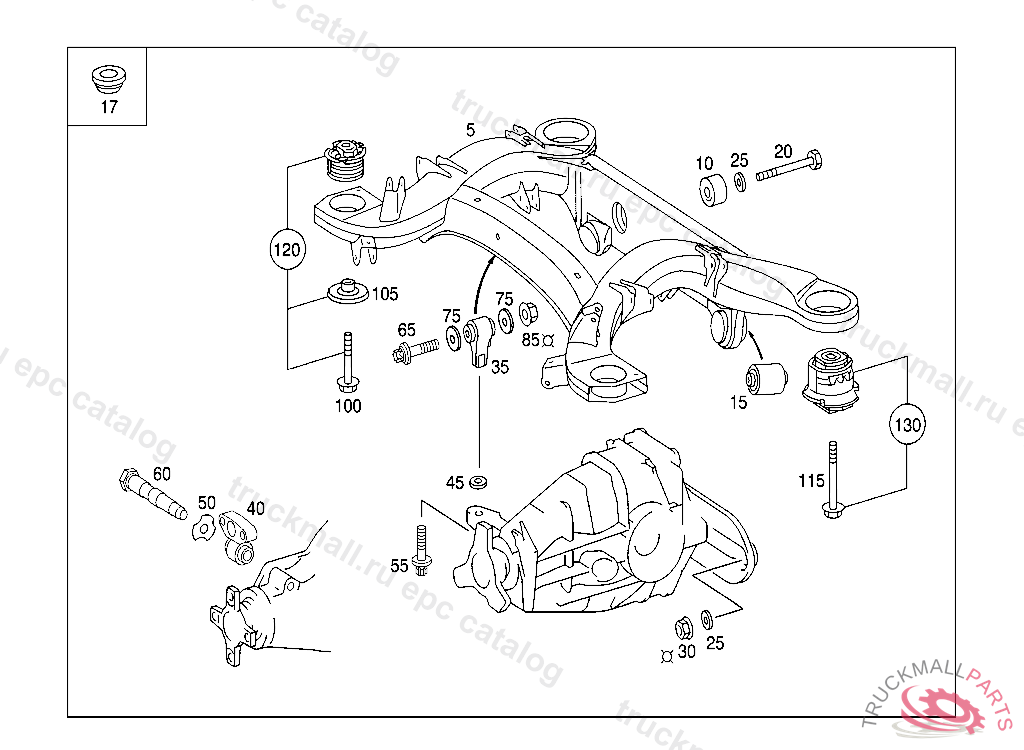

5
REAR AXLE CARRIER WITHOUT RUBBER MOUNT
5
REAR SUBFRAME WITH RUBBER MOUNTING
10
RUBBER MOUNT AXLE HOUSING TO REAR SUBFRAME,REAR
15
SPRING CONTROL ARM SSP. SPRING CONTROL ARM TO REAR SUBFRAME
17
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
20
HEXAGON HEAD BOLT. SCREW REINFORCEMENT TO SIDE MEMBER M 12X55
25
WASHER DUMPING PLATFORM MOUNTING
30
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
40
EXTENSION AXLE HOUSING TO EXTENSION, FRONT
50
WASHER AXLE HOUSING TO REAR SUBFRAME,FRONT
60
BOLT AXLE HOUSING TO EXTENSION, FRONT
105
STOP FRONT
120
RS AXLE CARRIER FRONT
130
RS AXLE BRACKET REAR
