Mercedes A2205040035 - КЛИПС

CL 55 AMG KOMPRESSOR 215.374

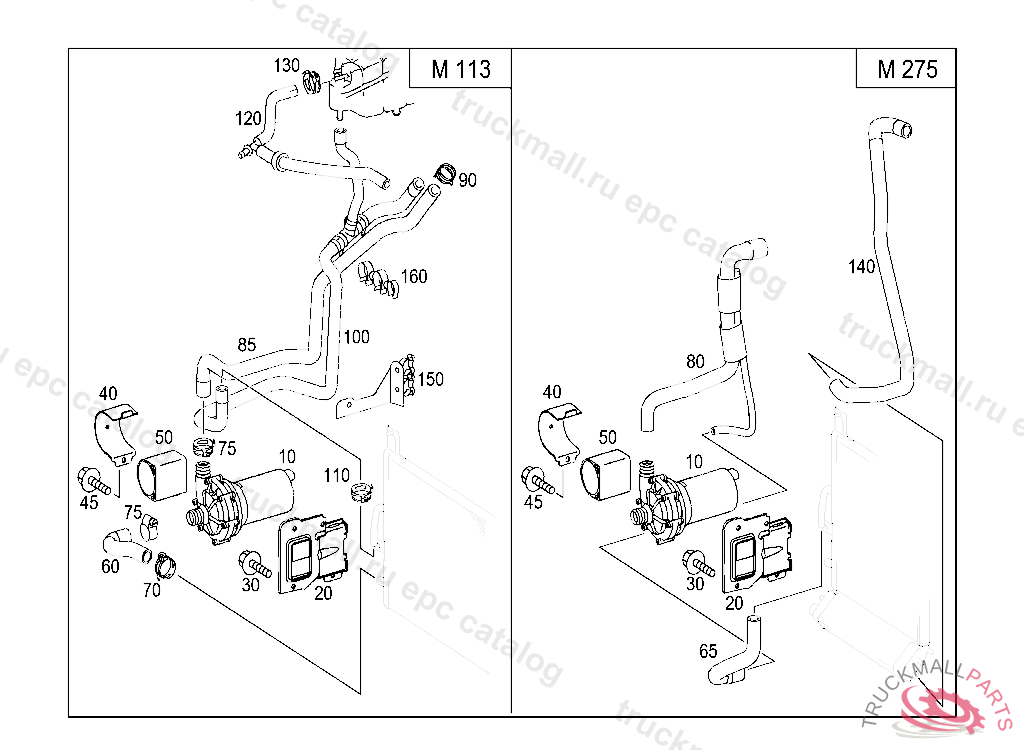

50 RADIATOR - 200 CHARGE AIR INTERCOOLING

Поз.
Артикул
Описание
10
A0005000186
COOLANT PUMP , Replaced By: A0005000386
10
A0005504883
WATER PUMP , Replaced By: A0005000386
20
A2205040640
BRACKET TO RIGHT RADIATOR
30
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
40
A2205040740
BRACKET
45
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
50
A2209972881
GROMMET
60
A2205011582
HOSE BETWEEN LOW-TEMPERATURE COOLER AND WATER PUMP
70
A2039950505
CLAMP ADVANCE ENGINE 27-30 MM
75
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
85
A2205016782
HOSE
85
A2205016182
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 38601220030808, Replaced By: A2205016782
90
A2309950005
CLAMP HOSE ATTACHMENT 23/12 MM
100
A2155000375
HOSE
110
A2309950005
CLAMP HOSE ATTACHMENT 23/12 MM
120
A2205015982
VENT PIPE
130
A1409950405
CLAMP14 MM
150
A2205000031
BRACKET
160
A2205040035
CLIP
