Главная
Mercedes
CAR
CLS 250 CDI
218.903
21 MAJOR ASSEMBLY DETACHABLE BODY COMP.
300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION IL. 2

Mercedes A6510961168 - Экран

CLS 250 CDI 218.903

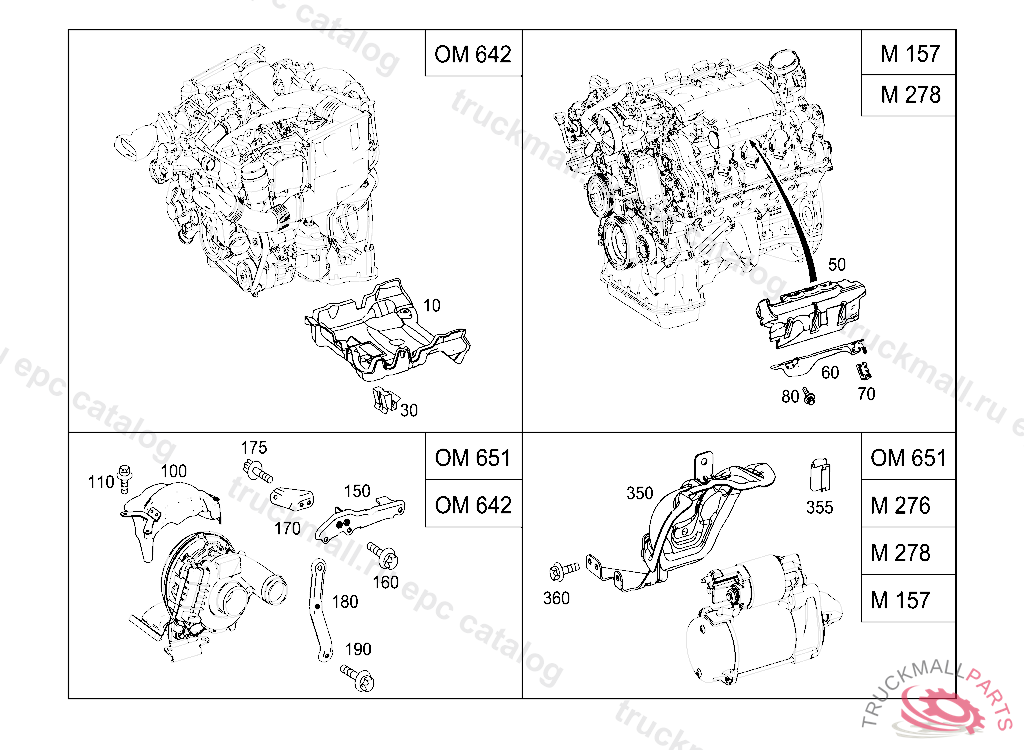

21 MAJOR ASSEMBLY DETACHABLE BODY COMP. - 300 SHIELDING AND SOUNDPROOFING AT ENGINE, TRANSMISSION, FRONT AXLE TRANSMISSION IL. 2

Поз.
Артикул
Описание
100
A6510961168
SCREENING PLATE TURBOCHARGER
100
A6510960168
SCREENING PLATE TURBOCHARGER
150
A6510962340
BRACKET TURBOCHARGER AT ENGINE SUPPORT
150
A6510962940
BRACKET TURBOCHARGER AT ENGINE SUPPORT
160
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
160
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
170
A6510963140
BRACKET
175
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
180
A6510962840
BRACKET TURBOCHARGER AT CRANKCASE
190
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
190
A0009906203
BOLT BRACKET TO TURBOCHARGER M8X12
350
A6511501675
SCREENING PLATE FOR STARTER, A 20120308 L 02624520120331 V 00211920120331
355
A0029955677
CLIP TO SHIELD
360
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
