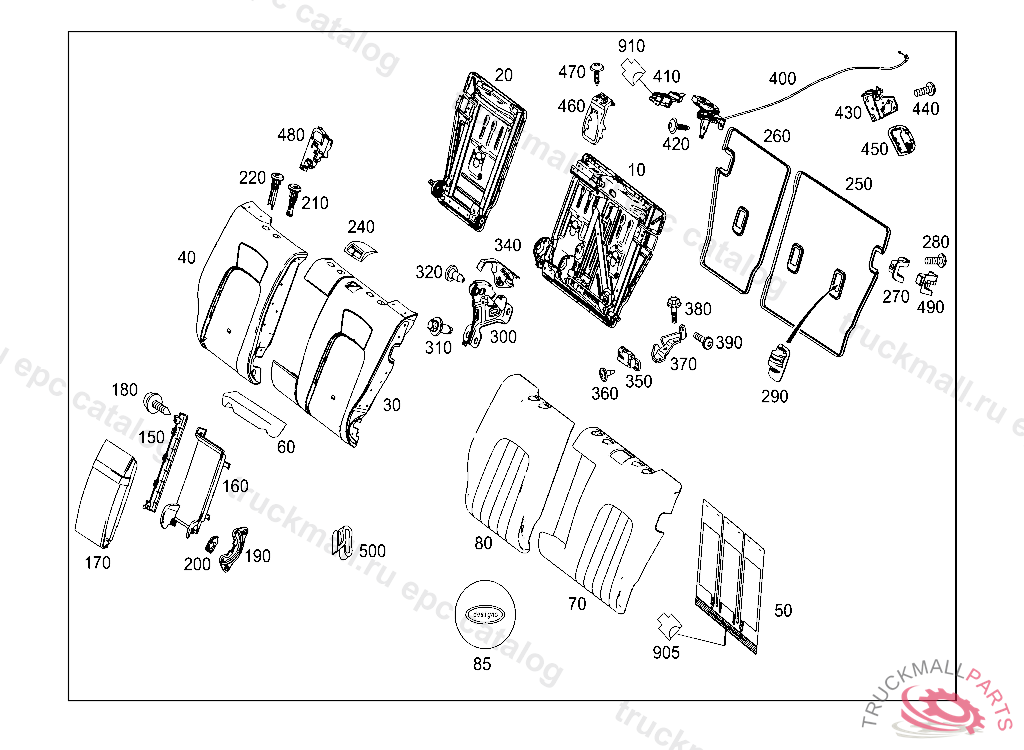

Поз.
Артикул
Описание
10
BACKREST FRAME LEFT REAR BACKREST
20
BACKREST FRAME RIGHT REAR BACKREST
30
PAD REAR SEAT BACKREST LEFT
40
PAD REAR SEAT BACKREST RIGHT
50
SEAT HEATING RIGHT
50
SEAT HEATING LEFT
60
UPHOLSTERY
60
UPHOLSTERY , 9D88 701A QFT218A2001 BLACK
60
UPHOLSTERY
70
COVER REAR SEAT BACKREST LEFT
70
COVER REAR SEAT BACKREST LEFT, 9E38QFT218A2125 BLACK
70
COVER REAR SEAT BACKREST LEFT
70
COVER REAR SEAT BACKREST LEFT, 9E43QFT218A2126 BLACK
70
COVER REAR SEAT BACKREST LEFT
70
COVER REAR SEAT BACKREST LEFT, 9H04 701A QFT218A2000 BLACK
70
COVER REAR SEAT BACKREST LEFT
70
COVER REAR SEAT BACKREST LEFT, 9E38QFT218A2125 BLACK
70
COVER REAR SEAT BACKREST LEFT, 9E43QFT218A2126 BLACK
70
COVER REAR SEAT BACKREST LEFT
80
COVER REAR SEAT BACKREST RIGHT
80
COVER REAR SEAT BACKREST RIGHT, 9E38QFT218A2125 BLACK
80
COVER REAR SEAT BACKREST RIGHT
80
COVER REAR SEAT BACKREST RIGHT, A 20140228 9E38QFT218A2125 BLACK
80
COVER REAR SEAT BACKREST RIGHT, 9H04 701A QFT218A2000 BLACK
80
COVER REAR SEAT BACKREST RIGHT
80
COVER REAR SEAT BACKREST RIGHT, A 20140228 9E38QFT218A2125 BLACK
80
COVER REAR SEAT BACKREST RIGHT
80
COVER REAR SEAT BACKREST RIGHT, 9E43QFT218A2126 BLACK
80
COVER REAR SEAT BACKREST RIGHT
85
PLATE DESIGNO, 7K71QFT204A2185 CHROME
150
COVER ARMREST SLOT
160
COVER ARMREST SLOT
170
FOLDING ARMREST
170
FOLDING ARMREST
170
FOLDING ARMREST
180
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
190
DETENT ARMREST
200
PLATE ARMREST RETAINER
210
GUIDE HEAD RESTRAINT, RIGHT
220
GUIDE HEAD RESTRAINTS, LEFT
240
COVER BELT OUTLET
250
COVER REAR BACKREST LEFT REAR BACKREST
250
COVER REAR BACKREST LEFT REAR BACKREST
260
COVER REAR BACKREST RIGHT REAR BACKREST
270
COVER LOCK LEFT
280
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
290
COVER LEFT
300
PIVOT BEARING REAR BACKREST MIDDLE
310
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
320
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
340
COVER PIVOT BEARING
350
LIMIT SWITCH RIGHT BACKREST RELEASE
360
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
370
PIVOT BEARING OUTSIDE RIGHT
370
PIVOT BEARING OUTSIDE LEFT
380
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
390
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
400
LOCK FOR SEAT BACKREST RIGHT
400
LOCK FOR SEAT BACKREST LEFT
410
LIMIT SWITCH LOCK LEFT
420
HEXALOBULAR BOLT MOUNTING PARTS M8X16
430
RELEASE HANDLE LEFT BACKREST
430
RELEASE HANDLE LEFT BACKREST
430
RELEASE HANDLE BACKREST, RIGHT
430
RELEASE HANDLE BACKREST, RIGHT
440
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
450
MOLDING LEFT RELEASE HANDLE
450
MOLDING RELEASE HANDLE, RIGHT
460
REINFORCEMENT SEAT BELT GUIDE
470
HEXALOBULAR BOLTM8X16
480
ADJUSTER HEAD RESTRAINTS, LEFT
490
COVER LOCK LEFT
490
PANELING LOCK RIGHT
500
CLIP
905
CONNECTOR HOUSING REAR LEFT DOOR SEPARATION POINT 2-PIN SLK2.8,X35/3
910
PIN BUSHING HOUSING CONNECTOR CAN DATABUS 3-PIN MQS,X63/4, J 24738620051124
