Главная
›
Mercedes
›
CAR
›
S 320
›
220.165
›
78 SLIDING ROOF
›

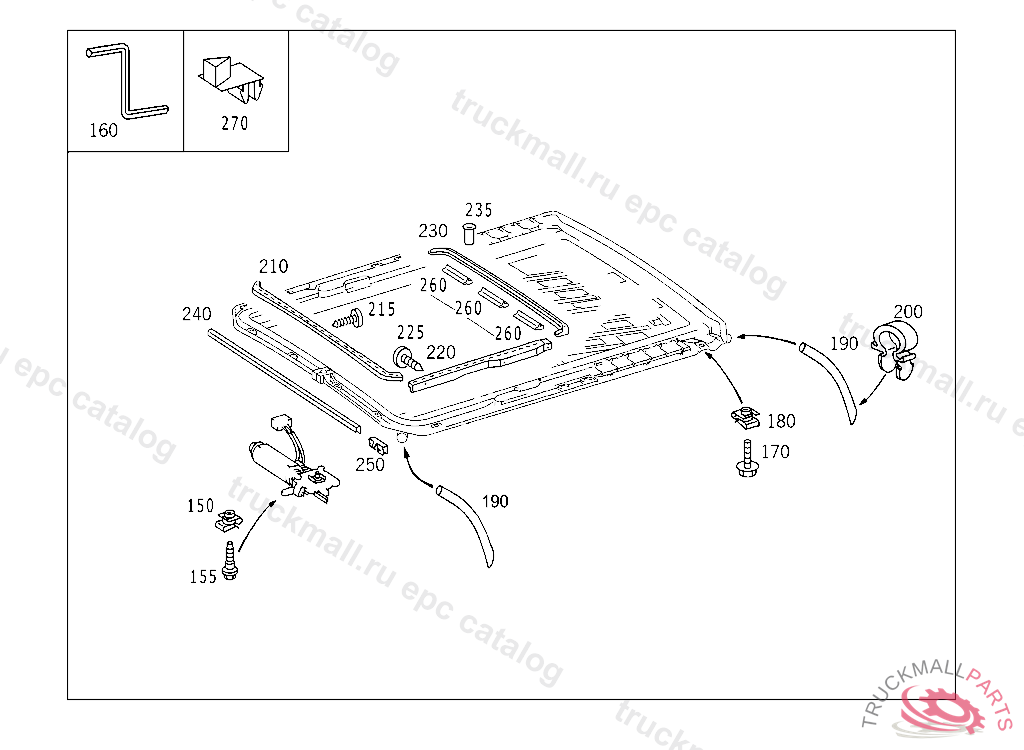

045 SLIDING/LIFTING ROOF FRAME IL. 2
Mercedes A0009902310 - Болт
S 320 220.165
78 SLIDING ROOF - 045 SLIDING/LIFTING ROOF FRAME IL. 2
Поз.
Артикул
Описание
150
A2029900291
NUT RETAINER MOTOR TO FRAME
155
A0009902310
SCREW FRONT EXHAUST LINE
160
A2028990180
KEY EMERGENCY CONTROL
170
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
180
A0009909991
NUT RETAINER ,123 415950
180
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
190
A1247820796
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
200
A0009955244
CLAMP
200
A0009956144
CLAMP
210
A2207820324
RAIL FRONT
215
A2209900136
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
220
A2207820524
RAIL LEFT
220
A2207820624
RAIL RIGHT
225
A1409900536
SCREW MOUNTING RAIL TO REINFORCEMENT FRAME
225
A2209900136
SCREW RAIL FASTENING AT SIDE AND FRONT TO REINFORCING FRAME
230
A1247820124
RAIL REAR
235
N007337003104
BLIND RIVET ATTACHMENT,RAIL
240
A2107800213
RAIL BOTTOM FRAME
250
A1409881478
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
260
A1157840497
PAD
270
A1247820505
SPACER FRONT RAIL
