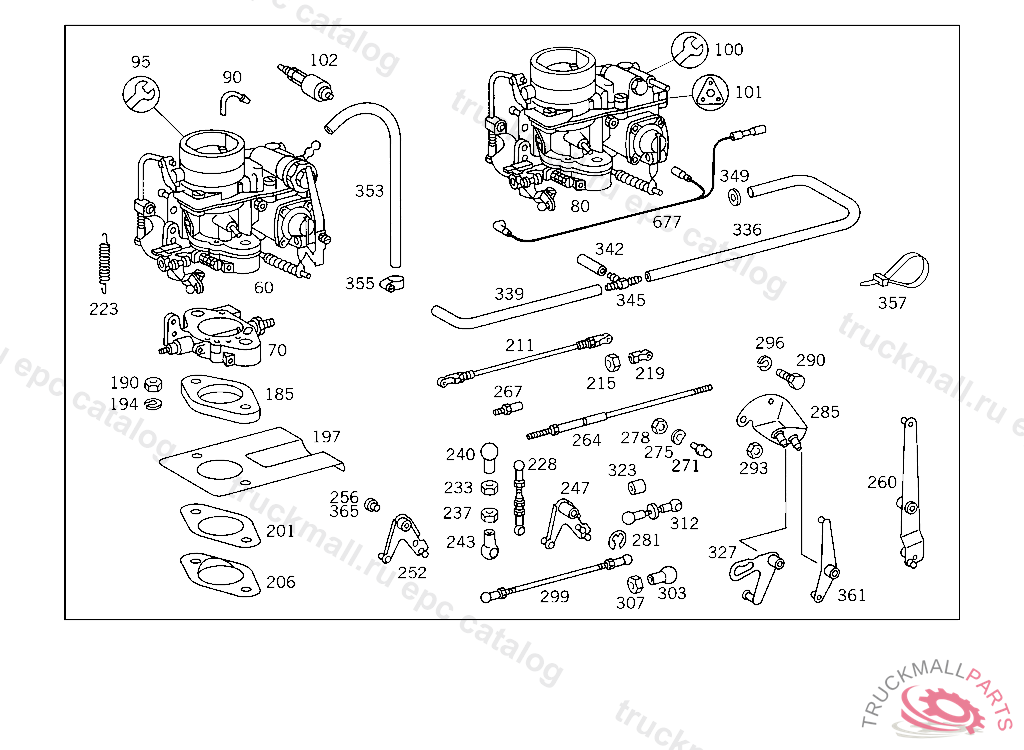

Поз.
Артикул
Описание
60
CARBURETOR FRONT
60
CARBURETOR , Replaced By: A0000701404
70
THROTTLE BODY
80
CARBURETOR REAR
80
CARBURETOR , Replaced By: A0010714001, +001A0000720017
90
INJECTION PIPE
95
REPAIR KIT FOR CARBURETOR
100
REPAIR KIT SMALL,CARBURETOR
101
REPAIR KIT GASKET KIT
102
NOZZLE , UP TO ENGINE: 115.920 10/50,20/60 005011 115.920 12/52,22/62 001206
102
VALVE IDLING SHUT-OFF VALVE, FROM ENGINE: 115.920 10/50,20/60 005012 115.920 12/52,22/62 001207
185
INSULATING FLANGE , Replaced By: A1151410462
185
INSULATING FLANGE
190
NUT
194
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
197
COVERING
201
GASKET
206
FLANGE
211
PULL ROD , Replaced By: A1190702675
211
ROD AT CONTROL LEVER
215
NUT CLAMP TO BRACKET
219
BALL SOCKET
223
SPRING ACCELERATOR PEDAL,B 838715,J 003393
223
SPRING , Replaced By: A1109931710
228
ROD , Replaced By: A1150701375, +001A0009911622, +001A0009911722
228
ROD
233
NUT TACHOGRAPH TO BRACKET
237
NUT CABLE TO ALTERNATOR,4 477130
240
BALL PIVOT
240
BALL PIVOT
243
BALL SOCKET , Replaced By: A0009911722
243
BALL SOCKET , Replaced By: A0009919022
243
BALL SOCKET
247
LEVER , UP TO ENGINE: 115.920 10/50,20/60 023498 115.920 12/52,22/62 005310, Replaced By: A1210702122, +002A1150720450
247
LEVER , FROM ENGINE: 115.920 10/50,20/60 023499 115.920 12/52,22/62 005311
252
LEVER , FROM ENGINE: 115.920 10/50,20/60 023499 115.920 12/52,22/62 005311
252
LEVER , UP TO ENGINE: 115.920 10/50,20/60 023498 115.920 12/52,22/62 005310, Replaced By: A1210702022, +002A1150720450
252
LEVER , Replaced By: A1210702122
256
BUSHING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 203557 017 002324 110 404833 105,107,108,117,119,001920 115 204352, Replaced By: A1150720450
256
BUSHING
260
LEVER
264
ROD
267
SCREW
271
BALL PIVOT LINK
275
SPRING WASHER ALTERNATOR CONNECTION D+
278
NUT TACHOGRAPH TO BRACKET
281
LOCK PLATE RELEASE LEVER TO SHAFT
285
BEARING BRACKET
290
SCREW , Replaced By: N304017006018
290
SCREW COVER PLATE TO COVER PLATE M 6 X 12
293
NUT
293
NUT , Replaced By: N304032008006
296
LOCK WASHER TAIL LAMP TO BRACKET
299
ROD
303
BALL PIVOT
303
BALL PIVOT
307
NUT TACHOGRAPH TO BRACKET
312
ROD
312
ROD , Replaced By: A1210702575, +001A1153000086, +001A0009911722, +001A1369930801
323
SPACER RING PUSH ROD TO SLOTTED GATE LEVER
327
LEVER
336
HOSE
339
HOSE
342
HOSE , ORDER BY THE METER
342
HOSE , Replaced By: A1074763126
342
HOSE , Replaced By: A1074763726
342
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004763726
342
HOSE , Replaced By: A1104761126
345
BRANCH-OFF FITTING
349
WASHER , Replaced By: N009021006208
349
WASHER BRACKET TO HEAT SHIELD
349
WASHER COMPRESSED AIR LINE TO BRACKET
353
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: N073379008200
353
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
355
CLAMP FUEL HOSE TO FUEL LINE, FROM ENGINE 063637 UP TO CHASSIS 303382
357
LOOM TIE TO MOUNT PLASTIC PIPING
357
LOOM TIE , Replaced By: A0019974190
361
LEVER , UP TO ENGINE: 115.920 10/50,20/60 023498 115.920 12/52,22/62 005310, Replaced By: A1210701621, +002A1150720450
361
LEVER , FROM ENGINE: 115.920 10/50,20/60 023499 115.920 12/52,22/62 005311
365
BUSHING
365
BUSHING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 203557 017 002324 110 404833 105,107,108,117,119,001920 115 204352, Replaced By: A1150720450
677
CABLE HARNESS CARBURETOR SHUT-OFF VALVE ADDITIONAL CABLE
999
BRANCH-OFF FITTING
999
CONNECTOR
999
INTAKE PIPE
999
FAN
999
CARBURETOR
999
CARBURETOR
999
GASKET
999
VIBRATION ABSORBER
999
CRANKSHAFT
999
CRANKSHAFT
999
PIPE
999
SEPARATOR , UP TO ENGINE 920 10/50,20/60 062472 920 12/52,22/62 014832 923 10/50,20/60 074724 923 12/52,22/62 012369 924 10/50,20/60 001745 924 12/52,22/62 000098 926 10/50,20/60 003317 926 12/52,22/62 000112, Replaced By: A0000160134, +001A1150160330, +001A1150160081, +001N916002033100
999
PIPE
999
LEVER
999
ROD
999
BUSHING
999
PIN
999
INSULATING FLANGE
999
FLANGE
999
BUSHING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 203557 017 002324 110 404833 105,107,108,117,119,001920 115 204352, Replaced By: A1150720450
999
PIPE BRACKET
999
BRACKET REFRIGERANT LINE, THE OLD PART MUST NO LONGER BE INSTALLED
999
BOOT
999
SEALING FLANGE
999
HOT-AIR DOOR
999
BRACKET
999
HOSE
999
HOSE
999
TRAVELLING ASSORTMENT
999
WASHER BEARING BRACKET TO SIDE MEMBER
999
WASHER BRACKET TO INTAKE MANIFOLD
999
CLAMP
999
HOSE
999
INTERMEDIATE PIECE
999
BREATHER FITTING , 912 10/50,20/60 038600 912 12/52,22/62 004190 913 10/50,20/60 018720 913 12/52,22/62 000605 915 000001938 005465 940 10/50,20/60 142197 EXCEPT FOR 137084-137089,137884-137890,140041-140045. 940 12/52,22/62 004748 EXCEPT FOR 004480,004524-004526,004634,004635.
999
WASHER
999
BRACKET REFRIGERANT LINE, THE OLD PART MUST NO LONGER BE INSTALLED
999
FILTER BOWL
999
FILTER BOWL , /30 FROM ENGINE: 615.940 10/50,20/60 026061 615.940 12/52,22/62 001122 615.941 10/50,20/60 011372 615.941 12/52,22/62 001498
999
SCREW LICENSE PLATE BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
WASHER PULL ROD TO SHIFT LEVER
999
SCREW PLUG TOP AND BOTTOM
999
SCREW DISTRIBUTOR TO FRAME
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
999
SCREW , Replaced By: N304017008008
999
NUT , Replaced By: N304032008006
999
NUT
999
STUD BOLT
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
NUT
999
SEAL RING AT OPERATING VALVE
999
SEAL RINGTO 001 431 72 14
999
SEAL RING , NOT USED
999
SEAL RING ON OIL PUMP HOUSING
999
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
999
WASHER , Replaced By: N009021006208
999
CLAMP
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
COMBINATION BOLT INTAKE AND EXHAUST MANIFOLDS TO CYLINDER HEAD
999
HOLLOW SCREW
999
HOLLOW SCREW
999
NUT CONNECTING PIPE TO EXHAUST BRAKE
