Mercedes N910112006003 - Гайка / mutter

S 320 CDI / S 350 CDI 221.122

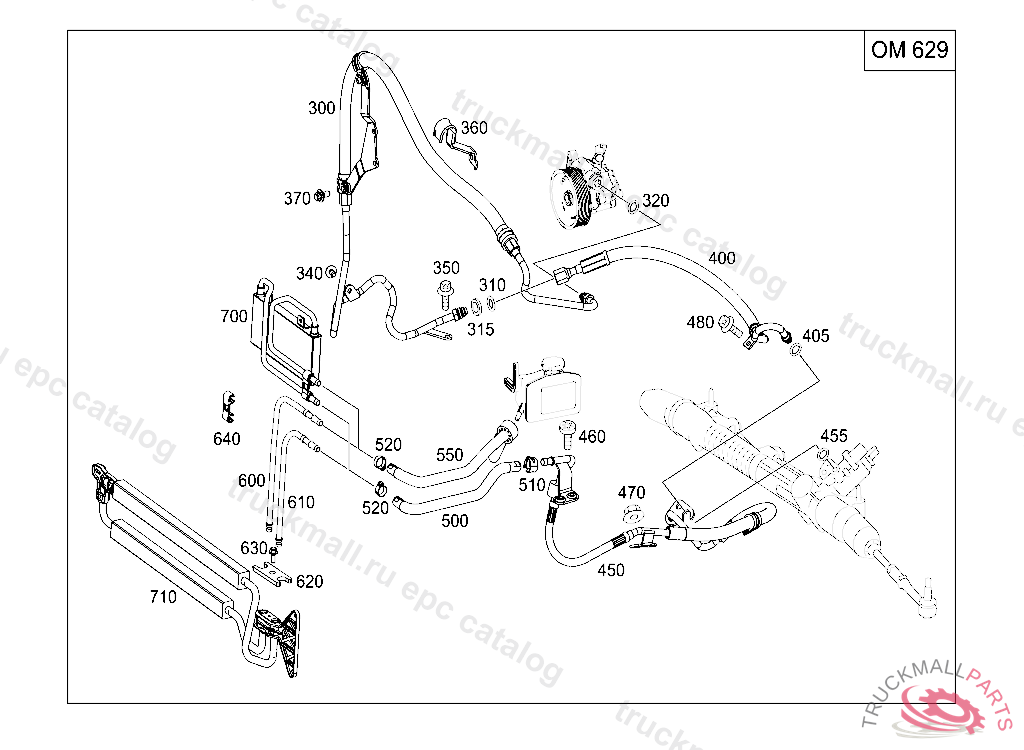

46 STEERING - 063 DIESEL VEHICLES LINE SCOPE IL. 1
  • Поз.
    Артикул
    Описание
  • 310
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 315
    SUPPORT RING HIGH PRESSURE LINE TO STEERING, A 83219320050630 E 02000020070101
  • 320
    SEAL RING HIGH-PRESSURE HOSE ON STEERING 7.65 X 1.63 MM
  • 350
    HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
  • 370
    SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
  • 400
    HIGH-PRESSURE LINE FROM SEPARATION POINT TO STEERING, A 02430720090731800
  • 405
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 455
    O-RING TO HP HOSE 7.65MM, A 83219320050630 E 02000020070101
  • 460
    HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
  • 470
    HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
  • 480
    HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
  • 500
    HOSE SEPARATION POINT TO OIL COOLER
  • 520
    HOSE CLAMP LOW PRESSURE HOSE TO COOLER PIPE OR PUMP 15.5 MM, A 54101820030515 E 02000020070101
