Поз.
Артикул
Описание

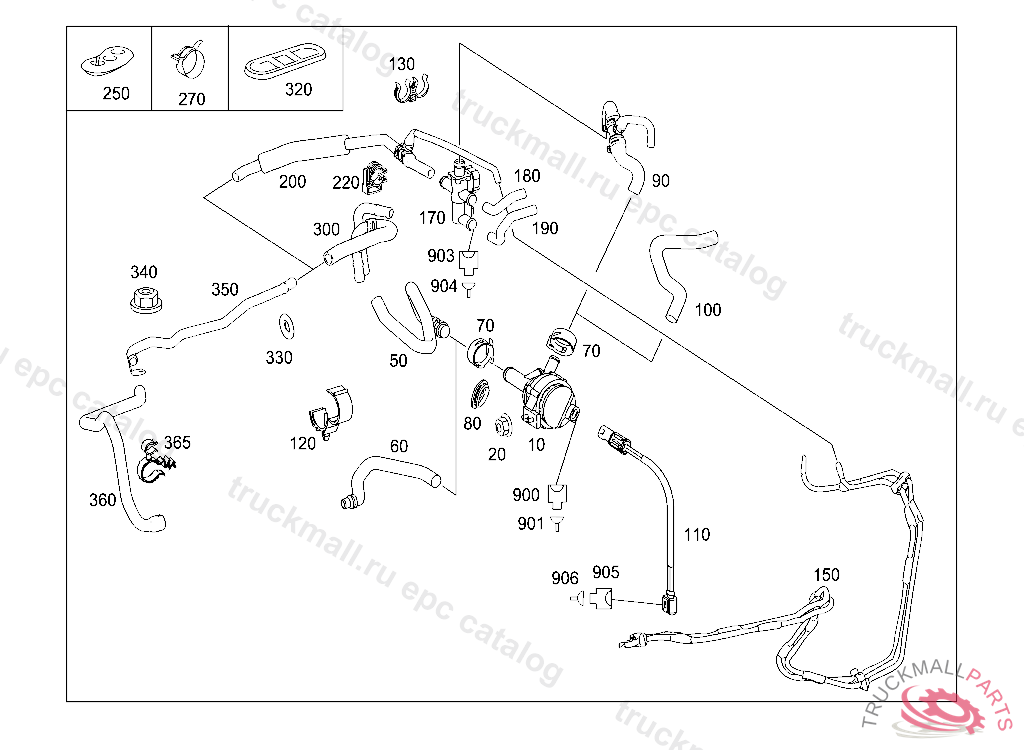

10
PUMP
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
50
HOSE FEED,BETWEEN ENGINE AND RECIRCULATING PUMP
70
HOSE CLAMP HOSE ATTACHMENT 27 MM
70
CLAMP25 MM
70
CLAMP14 MM
80
GROMMET AT RECIRCULATING PUMP
90
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
90
HOSE PUMP TO THE VALVE
90
HOSE FEED LINE TO CIRCULATION PUMP
90
HOSE T-PIECE JUNCTION TO WASHER FLUID HEATER, TO BE ADAPTED DURING ASSEMBLY
110
WIRING HARNESS TO PUMP
120
BRACKET AT BRACKET
130
BRACKET HOSE
150
PIPELINE TO WASHER FLUID HEATER, A 01175020070731808
150
PIPELINE TO WASHER FLUID HEATER
170
VALVE CHANGE-OVER VALVE
180
HOSE FROM VALVE TO HEAT EXCHANGER
180
HOSE FROM VALVE TO HEAT EXCHANGER
190
HOSE FROM VALVE TO HEAT EXCHANGER
190
HOSE FROM VALVE TO HEAT EXCHANGER
200
HOSE INTERMEDIATE PIECE TO VALVE
200
HOSE INTERMEDIATE PIECE TO VALVE
200
HOSE INTERMEDIATE PIECE TO VALVE
200
PIPELINE TO VALVE
200
HOSE INTERMEDIATE PIECE TO VALVE, TO BE ADAPTED DURING ASSEMBLY
220
BRACKET HOSE ATTACHMENT
250
GROMMET PIPE LINE TO WHEELHOUSE
250
STOP PLUG BLIND PLUG
270
CLAMP14 MM
270
SPRING HOSE CLAMP HOSE FASTENING,230301
270
CLAMP25 MM
320
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
330
GROMMET RETURN LINE
340
NUT COVERING TO CAB FIRE WALL
350
PIPELINE RETURN
360
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE
360
RETURN HOSE RETURN, A 30200020090930800
365
SPACER HOSE TO OIL DIPSTICK
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
GASKET
903
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
906
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
906
SEAL. GASKET YELLOW,V 215932
