Поз.
Артикул
Описание

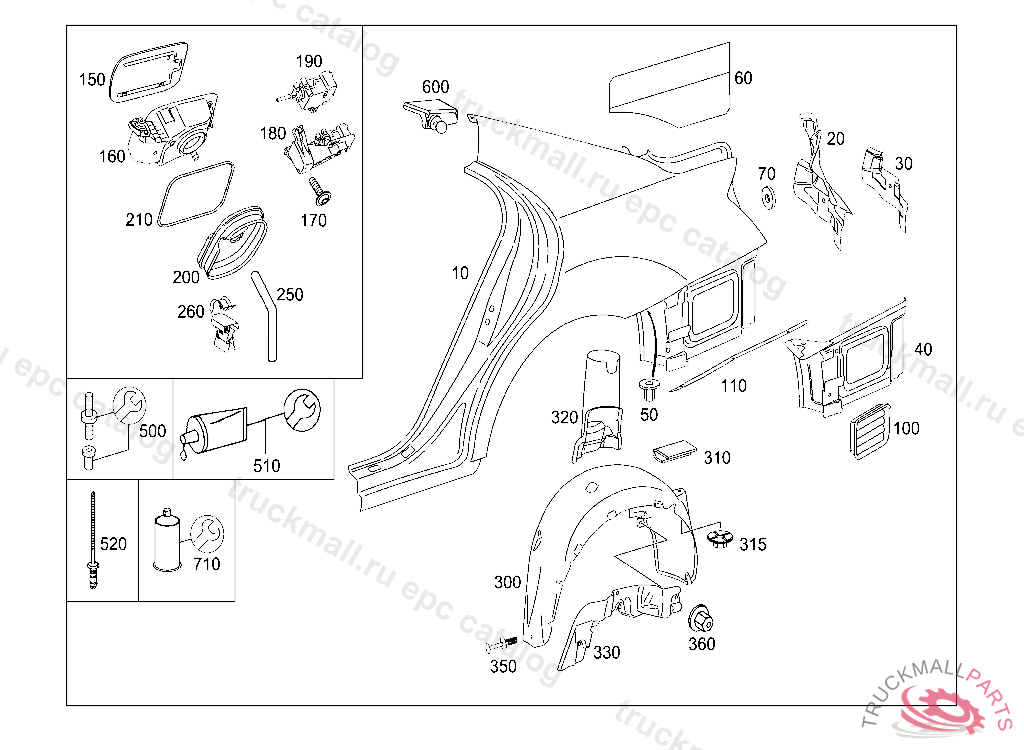

10
REAR FENDER RIGHT
10
REAR FENDER LEFT
20
TAKE-UP DEVICE RIGHT TAIL LAMP
20
TAKE-UP DEVICE LEFT TAIL LAMP
30
STIFFENING BOTTOM LEFT
30
STIFFENING BOTTOM RIGHT
40
BOTTOM FENDER BOTTOM, LEFT
40
BOTTOM FENDER BOTTOM, RIGHT
50
RIVETED NUT NET RETAINER M6
60
INSULATION RIGHT REAR FENDER
60
INSULATION LEFT REAR FENDER
70
WASHER
100
FLAP LEFT AND RIGHT
100
FLAP LEFT AND RIGHT
110
PAD SCUFF GUARD BETWEEN FENDER AND BUMPER, RIGHT
110
PAD SCUFF GUARD BETWEEN FENDER AND BUMPER, LEFT
150
PANELLING TANK FLAP
160
RECESS FILLER NECK IN SIDE PANEL, ALSO ORDER: A 221 637 00 98
170
SCREW PLATE AT HANDLE, J 47509420000815
170
SCREW
180
LOCKING MECHANISM TANK FLAP
190
ENGINE TANK FLAP LOCKING MECHANISM
200
GROMMET TANK RECESS
210
SEAL FILLER NECK RECESS
250
HOSE , Replaced By: A2106390194
260
LINE HOLDER HOSE LINE ATTACHMENT
300
COVER LEFT REAR WHEEL ARCH, A 26557620081001809
300
COVER RIGHT REAR WHEEL ARCH, A 29016920090630800 L 00539920090531
300
COVER LEFT REAR WHEEL ARCH, A 29016920090630800
300
COVER RIGHT REAR WHEEL ARCH, A 26557620081001809 L 00540020090531
310
SPACER COVERING TO WHEELHOUSE
315
PLASTIC NUT. NUT
315
HEX NUT GUIDE AT REAR FENDER
320
COVER SPRING TOWER, RIGHT
320
COVER SPRING TOWER, LEFT
330
COVER LEFT BOTTOM REAR/SPRING TOWER
330
COVER SPRING TOWER, LEFT
330
COVER LEFT BOTTOM REAR/LONGITUDINAL MEMBER
330
COVER SPRING TOWER, RIGHT
350
RIVET COVERING TO SIDE MEMBER
360
PLASTIC NUT. NUT
500
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
510
TS GLUING COMPONENT REPAIR KIT
520
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
600
BRACKET MUFFLER
710
2-COMPONENT FILLING FOAM DAMPING MATERIAL REPAIR SOLUTION
