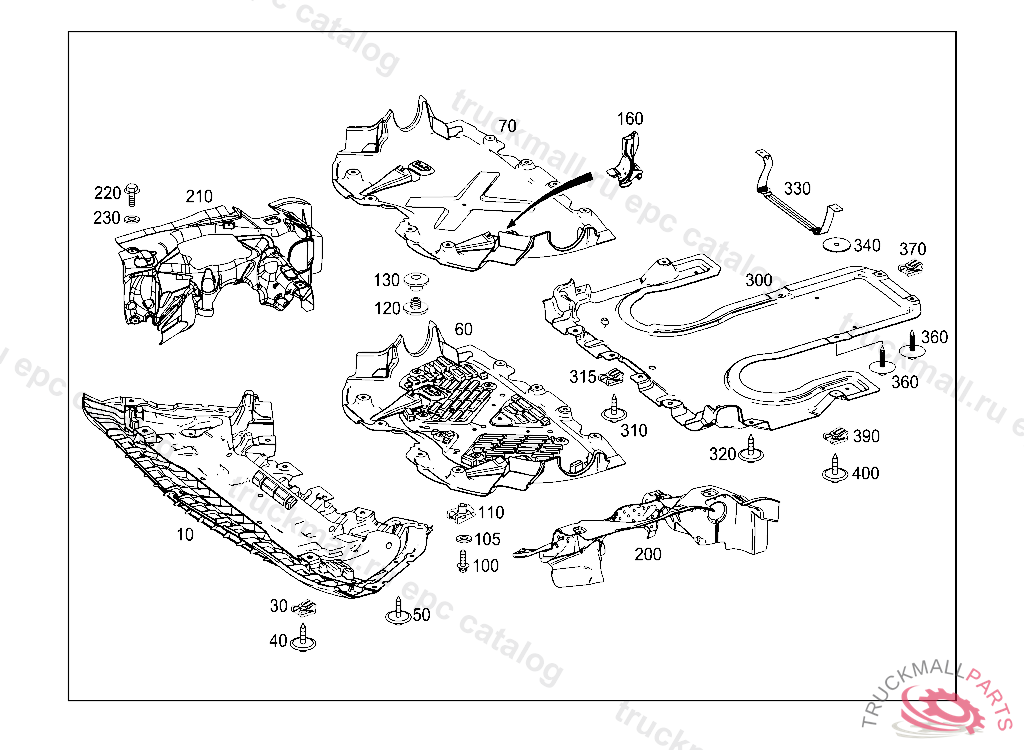

Поз.
Артикул
Описание
10
ENCAPSULATION FRONT
10
ENCAPSULATION FRONT
30
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
50
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
60
UNDERBODY PROTECTION CENTRAL, A 20140204 L 00000120130630 V 00000120130630
60
ENCAPSULATION CENTRAL
70
COVER F ENGINE COMP. BM ANTINOISE CAPSULE
100
SCREW BRACKET TO CROSS CONNECTION STRUT
100
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
105
WASHER BRACKET TO CAB REAR PANEL
110
SPRING-THREAD NUT PROTECTIVE PLATE
110
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
110
SCREW BRACKET TO CROSS CONNECTION STRUT
120
FASTENER BUTTON UPPER PART
130
FASTENER BUTTON LOWER PART
160
NACA FITTING RIGHT
160
NACA FITTING LEFT
200
ENCAPSULATION CENTRAL LEFT
210
ENCAPSULATION CENTRAL RIGHT
220
BOLT AND WASHER ASSEMBLY FASTENING, SOUNDPROOFING AT LEFT AND RIGHT M5X15
230
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
300
COVER F ENGINE COMP. BM
310
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
315
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
320
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
330
BRACKET FASTENING, REAR COVER
340
NUT INSULATION AND BRACKET TO BODY
360
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
370
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
390
CLIP-TYPE NUT LINING TO RIGHT LONGITUDINAL MEMBER 4,8
400
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
