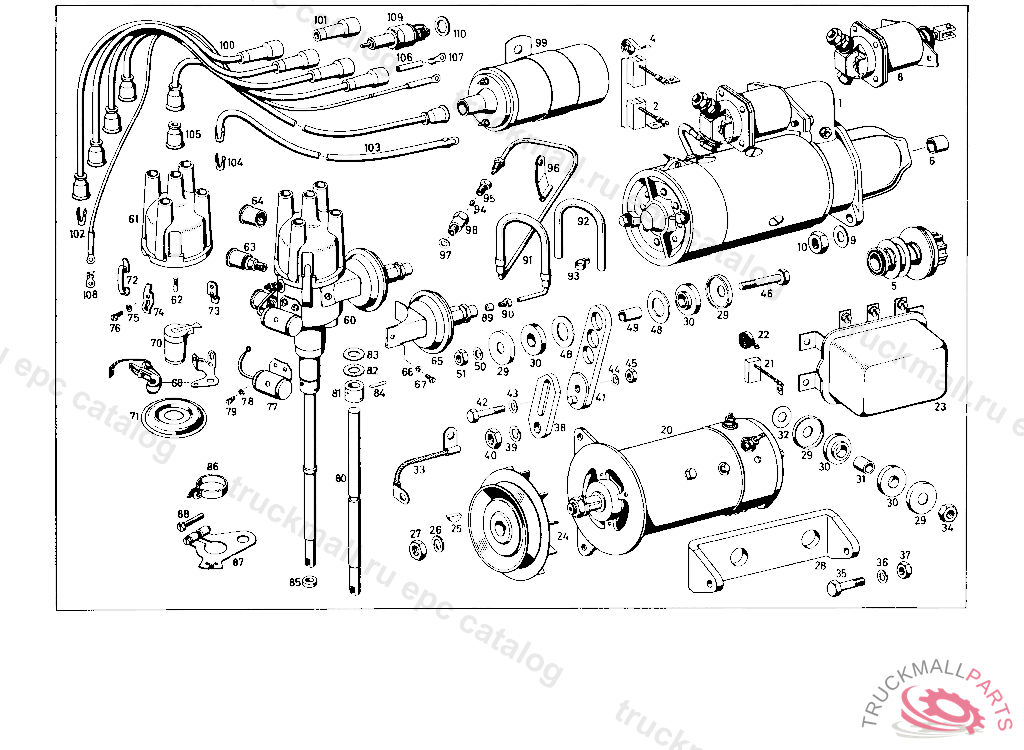

Поз.
Артикул
Описание
1
STARTER MOTOR
2
SET OF CARBON BRUSHES 4 PIECES
4
FEDER. SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001511193
5
ROLLENFREILAUF MIT RITZEL UND FEDER FUR ANLASSER
6
BEARING BUSHING. BUSHING
8
SOLENOID SWITCH
20
GENERATOR WITHOUT REGULATOR FROM ENGINE NO. 45 04194
21
SET OF CARBON BRUSHES 2 PIECES
22
PRESSURE SPRING FOR CARBON BRUSH
23
VOLTAGE REGULATOR FOR GENERATOR FROM ENGINE NO. 45 04398
24
PULLEY OPTIONAL FOR GENERATOR
28
TRAGER. SUPPORT FOR GENERATOR
29
TELLERSCHEIBE RECHTSLENKUNG FUR HALTER UNTEN AN HALTER-MOTOR
30
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
31
HULSE. SLEEVE FOR GENERATOR SUSPENSION
32
SCHEIBE FUR BOLZEN AN BREMSTRAGERPLATTE
33
MASSELEITUNG FUR LICHTMASCHINE
38
RETAINING RAIL
41
BRACKET
48
SCHEIBE FUR OBERE LICHTMASCHINENAUFHANGUNG
49
HULSE. SLEEVE FOR BRACKET AT GENERATOR
60
IGNITION DISTRIBUTOR WITH DRIVE SHAFT WITH DUST PROTECTIVE COVER AND INTERFERENCE-FREE
61
DISTRIBUTOR PLATE FROM ENGINE NO. 35 03167
62
SCHLEIFKOHLE MIT. CARBON BRUSH , Replaced By: A0001580434
63
FETTBUCHSE. GREASE CUP
64
FETTBUCHSENDECKEL. CAP
65
VACUUM BOX
68
CONTACT SET. POINT UNIT , 92310/50,20/60 007894 92312/52,22/62 034662 93310/50,20/60 000854 93312/52,22/62 000128
70
DISTRIBUTOR ROTOR DUST-PROOF DESIGN FROM ENGINE NO. 35 03167
71
DUST PROTECTIVE COVER EXPORT, SPECIAL REQUEST
72
LEAF SPRING. RETAINING SPRING
73
FIXING SHACKLE. BRACKET
74
FIXING SHACKLE WITH NOSE. BRACKET
77
CONDENSER. KONDENSATOR
80
DRIVE SHAFT FOR IGNITION DISTRIBUTOR
81
MITNEHMER. FOLLOWER
82
FIBERSCHEIBE. WASHER , Replaced By: A0001580276
83
SCHEIBE. SPACER WASHER AS REQUIRED 0.1 MM
84
STIFT
85
RUBBER SEALING RING. SEALING RING
86
EINSTELLRING ZEIGER
87
EINSTELLPLATTE MIT. ADJUSTING PLATE WITH STOP
89
DICHTRING. SEALING RING
90
GEWINDENIPPEL. THREADED BUSHING
91
VACUUM LINE
92
GUMMISCHLAUCH 8 X 4 O 150-MM LANG
93
SCHLAUCHBAND BIS MOTOR-NR. 55 00275
96
ROHRSCHELLE. PIPE CLAMP
98
SCHRAUBSTUTZEN. CONNECTOR
99
IGNITION COIL SEE ALSO GROUP 54
100
SET OF IGNITION CABLES
101
IGNITION CABLE PLUG OPTIONAL
102
CABLE SLEEVE
103
IGNITION CABLE
104
CABLE SLEEVE
105
REGENSCHUSSKAPPE. PROTECTIVE CAP
106
GROMMET. GUMMITULLE
109
SPARK PLUG OPTIONAL
999
REGULATOR SWITCH UP TO ENGINE NO. 45 04397 SEE ALSO GROUP 54
999
GENERATOR REPLACED BY 000 154 28 02 TOGETHER WITH 1 VOLTAGE REGULATOR 000 154 54 06 1 SET OF CABLES 120 540 03 08 1 BRACKET 10 120 620 00 3
999
INTERFERENCE SUPPRESSOR. PLUG FOR INTERFERENCE SUPPRESSION OPTIONAL FOR IGNITION DISTRIBUTOR SPECIAL REQUEST FOR RADIO INSTALLATION, Replaced By: A0001561710
999
BUSHING-TYPE CONDENSER AT GENERATOR, TERMINAL 51 SPECIAL REQUEST ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
999
VERTEILERLAUFSTUCK
999
VERTEILERSCHEIBE
999
REPLACED BY 000 158 10 31 TOGETHER WITH 1 DISTRIBUTOR PLATE 000 158 08 02 UP TO ENGINE NO. 35 03166
999
DISTRIBUTOR PLATE FOR DISTRIBUTOR ROTOR 000 158 10 31 UP TO ENGINE NO. 35 03166
999
DISTRIBUTOR ROTOR INTERFERENCE-FREE UP TO ENGINE NO. 35 03166
999
DISTRIBUTOR ROTOR WITH COUNTER WEIGHT DUST-PROOF AND INTERFERENCE SUPPRESSED, Replaced By: A0001581531
999
RUBBER CAP FOR IGNITION DISTRIBUTOR, Replaced By: A0001590785
999
IGNITION CABLE PLUG OPTIONAL
999
SPARK PLUG OPTIONAL
999
SPARK PLUG, INTERFERENCE-FREE SPECIAL REQUEST FOR ULTRA-SHORT WAVE INTERFERENCE SUPPRESSION
999
SPARK PLUG OPTIONAL
999
PULLEY OPTIONAL FOR GENERATOR
